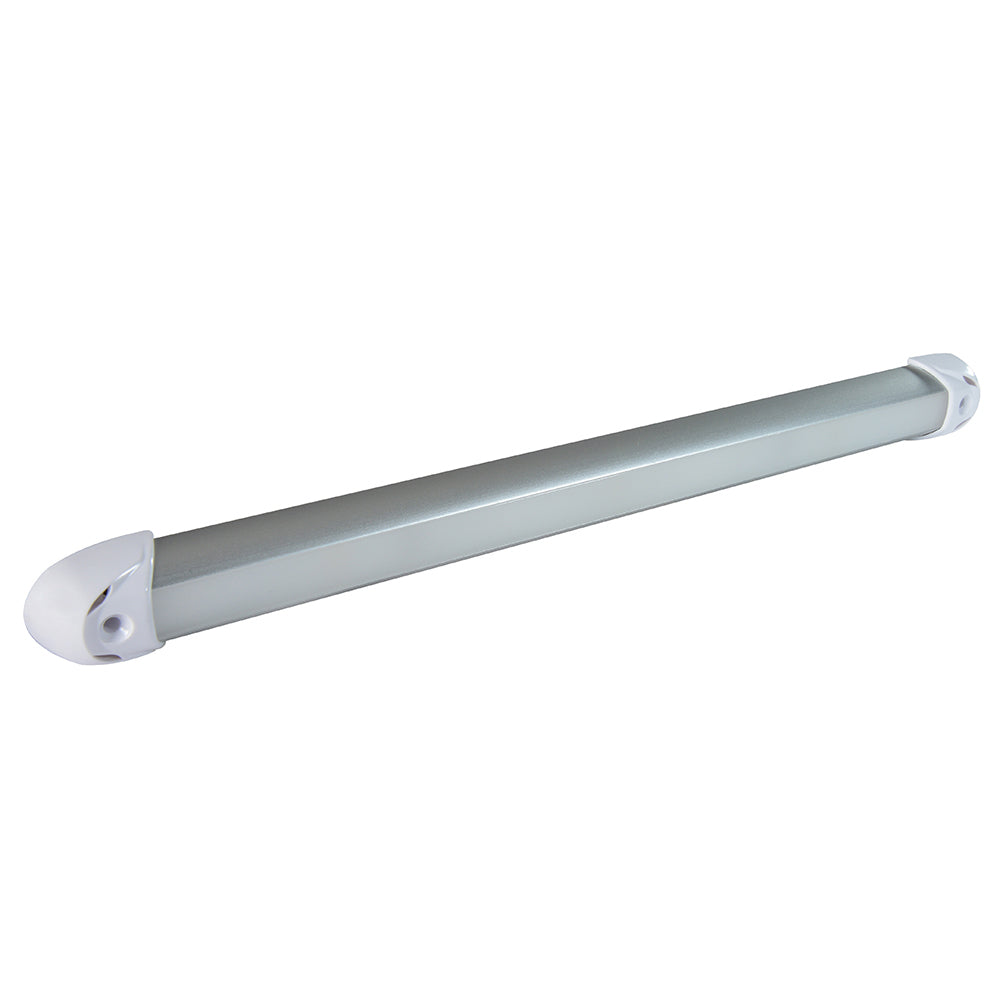

The Rail2 12" light builds on Lumitec's original rail-mount design with up to three times the output of its predecessor and a low-profile, streamlined housing. An integrated microprocessor handles dimming and color switching — blue and red run non-dimming, white is fully dimmable — all from just two wires and no external control modules. IP67-rated for water and dust ingress, this USA-made fixture holds up anywhere from a spray-soaked hardtop to a finished cabin interior.

Specifications:

• Voltage: 10–30V DC
• Current at 12V DC: 920mA
• Current at 24V DC: 430mA
• Correlated Color Temperature: 5000K
• Color Rendering Index: 70+
• Lumens (White): 490
• Rated Watts: 12W
• Operating Temperature: -31°F to +131°F (-35°C to +55°C)
• Width: 11.72" (29.76 cm)
• Height: 1.11" (2.82 cm)
• Depth: 0.60" (1.53 cm)
• Ingress Protection: IP67
• Made in the USA

Resources:

• Quick Guide (PDF)
