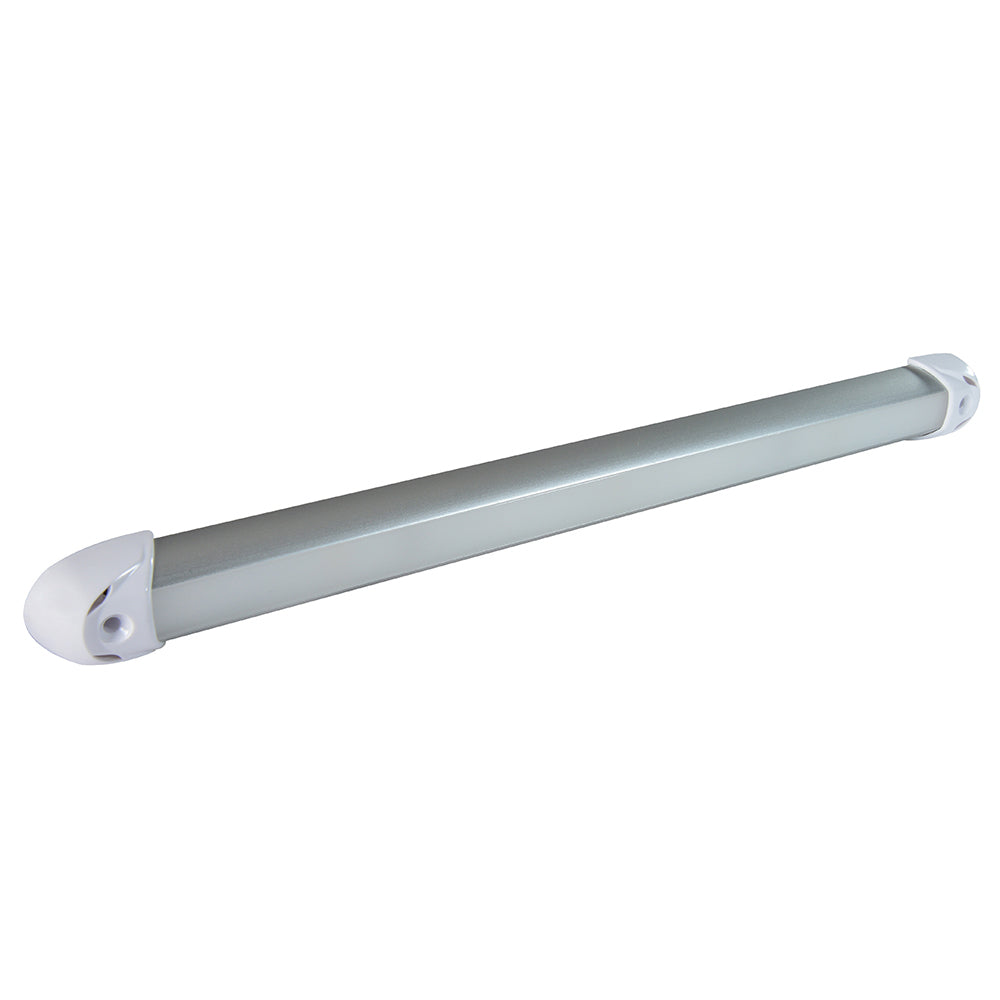

The Rail2 builds on Lumitec's original rail light legacy with up to three times the output of its predecessor, a refined low-profile design, and an integrated microprocessor that handles dimming and color control through just two wires — no external modules required. IP67-rated for full waterproof protection, it performs equally well on a spray-soaked hardtop or a finished interior. Made in the USA.

Specifications:

• Voltage: 10–30V DC
• 12V DC Current Draw: 920mA
• 24V DC Current Draw: 430mA
• Correlated Color Temperature: 3000K
• Color Rendering Index: 80+
• Output (White): 360 lumens
• Rated Watts: 9.5W
• Operating Temperature: -31°F to +131°F (-35°C to +55°C)
• Width: 11.72" (29.76 cm)
• Height: 1.11" (2.82 cm)
• Depth: 0.60" (1.53 cm)
• IP Rating: IP67 waterproof
• Made in the USA

Resources:

• Quick Guide (PDF)

⚠️ WARNING: This product can expose you to chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.

Available in Warm White Dimming, Spectrum RGBW Full-Color, White/Blue Dimming and White/Red Dimming -- choose your option below.
