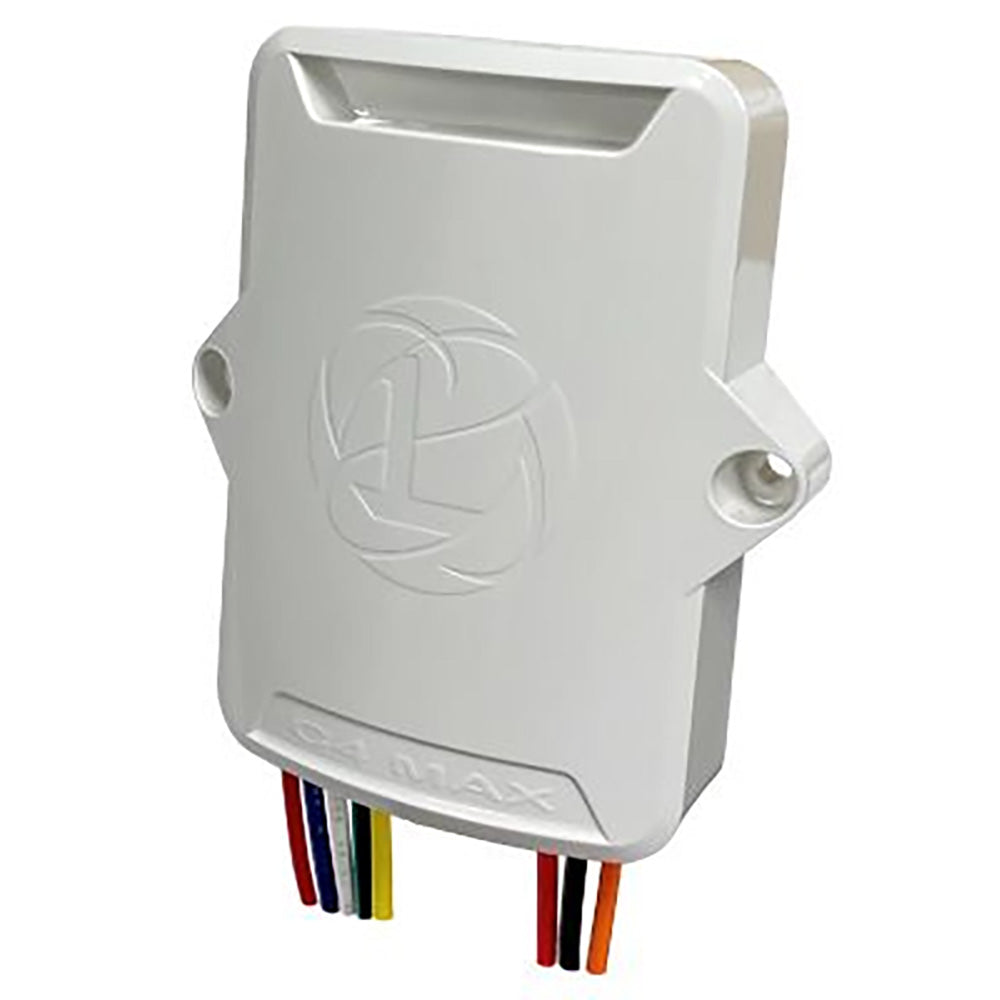

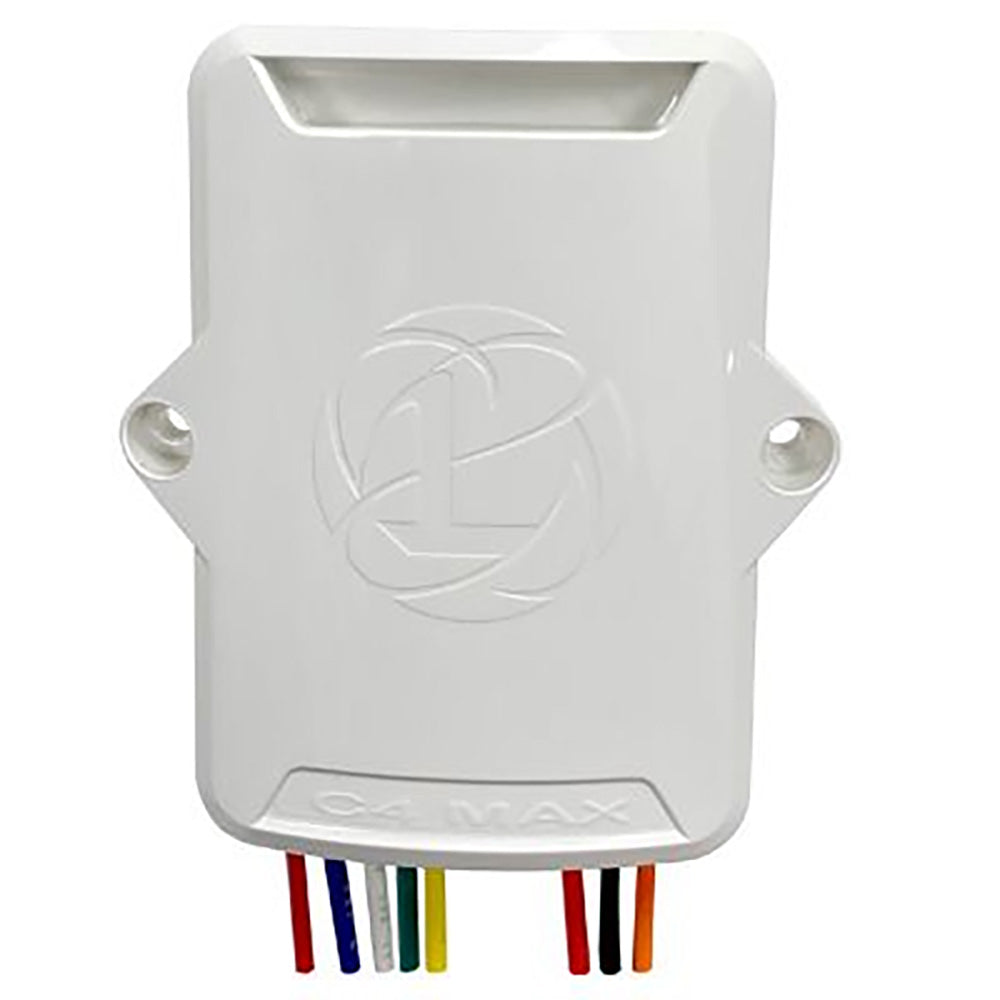

The Lumitec Pico C4-MAX Expansion Module brings third-party RGB and RGBW lighting accessories — from strip lights to lighted speakers — into the Poco Digital Lighting Control ecosystem. On vessels without Poco, the C4-MAX uses Lumitec's field-proven Timed Toggle Protocol (TTP) to deliver full color and intensity control through any standard on/off switch, bridging sophisticated PLI technology with everyday wiring.

Specifications:

• CE Certified: Yes
• UL Certified: No
• PLI Enabled: Yes
• Timed Toggle Protocol (TTP): Yes
• Voltage: 10V DC – 30V DC
• Max Amps per Channel: 10A
• IP Rating: IP67
• Operating Temperature: -31°F / -35°C to +131°F / +55°C
• Finish / Housing: White
• Height: 3.5 in (8.89 cm)
• Width: 3.1 in (7.87 cm)
• Depth: 0.88 in (2.23 cm)
• Sub-Category: Pico Expansion Modules

Resources:

• Owner's Manual (PDF)
• Quick Guide (PDF)
