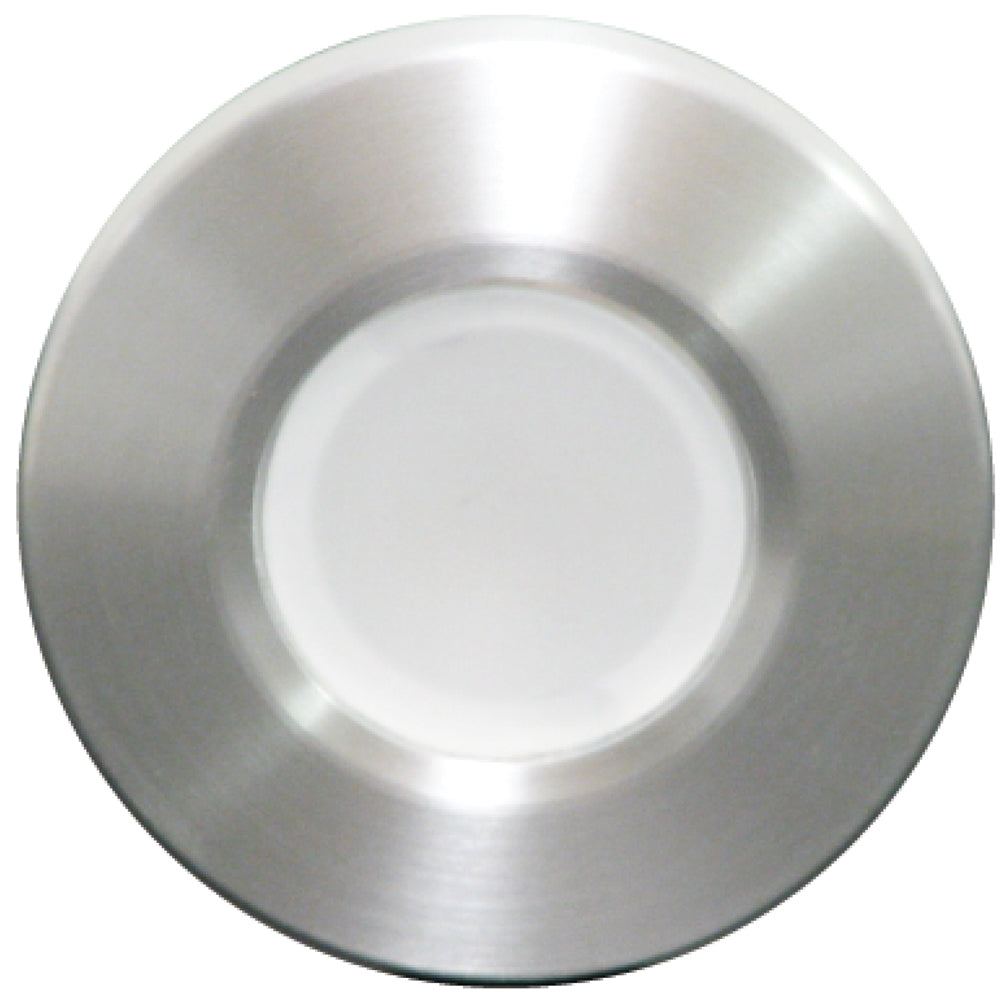

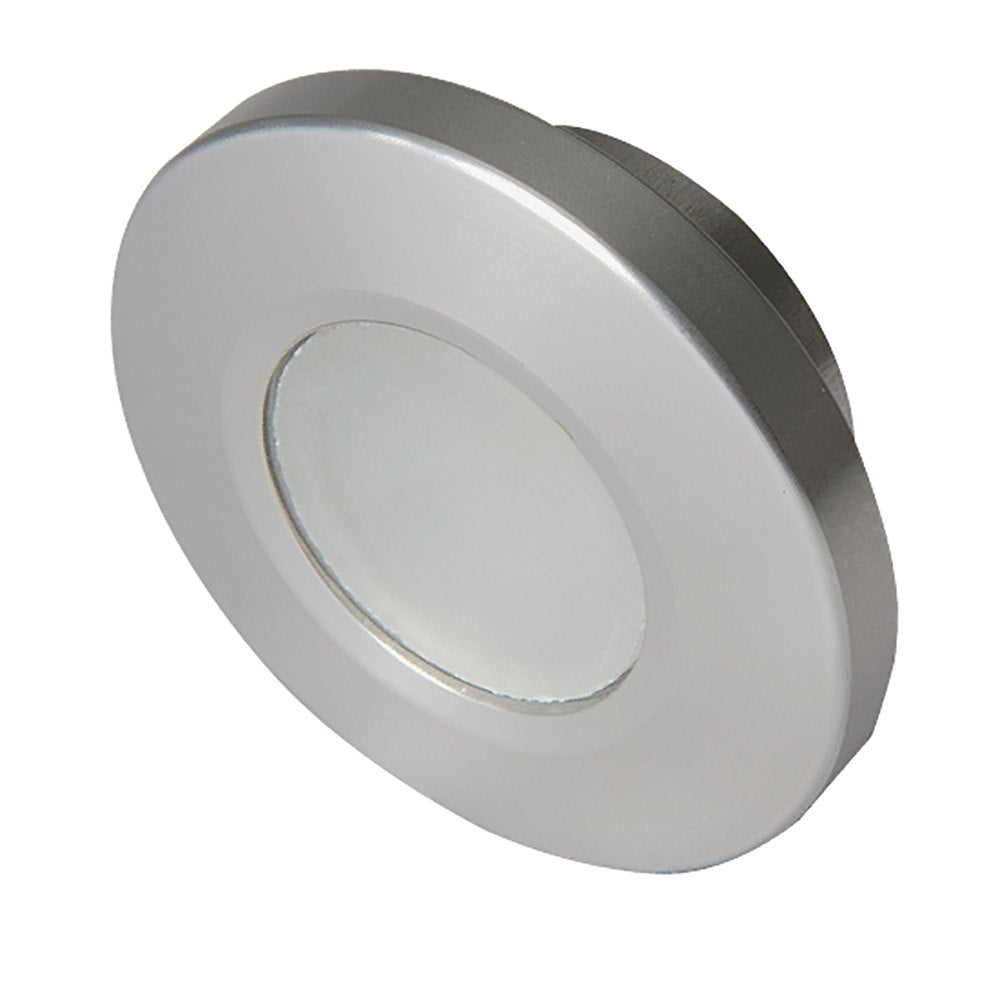

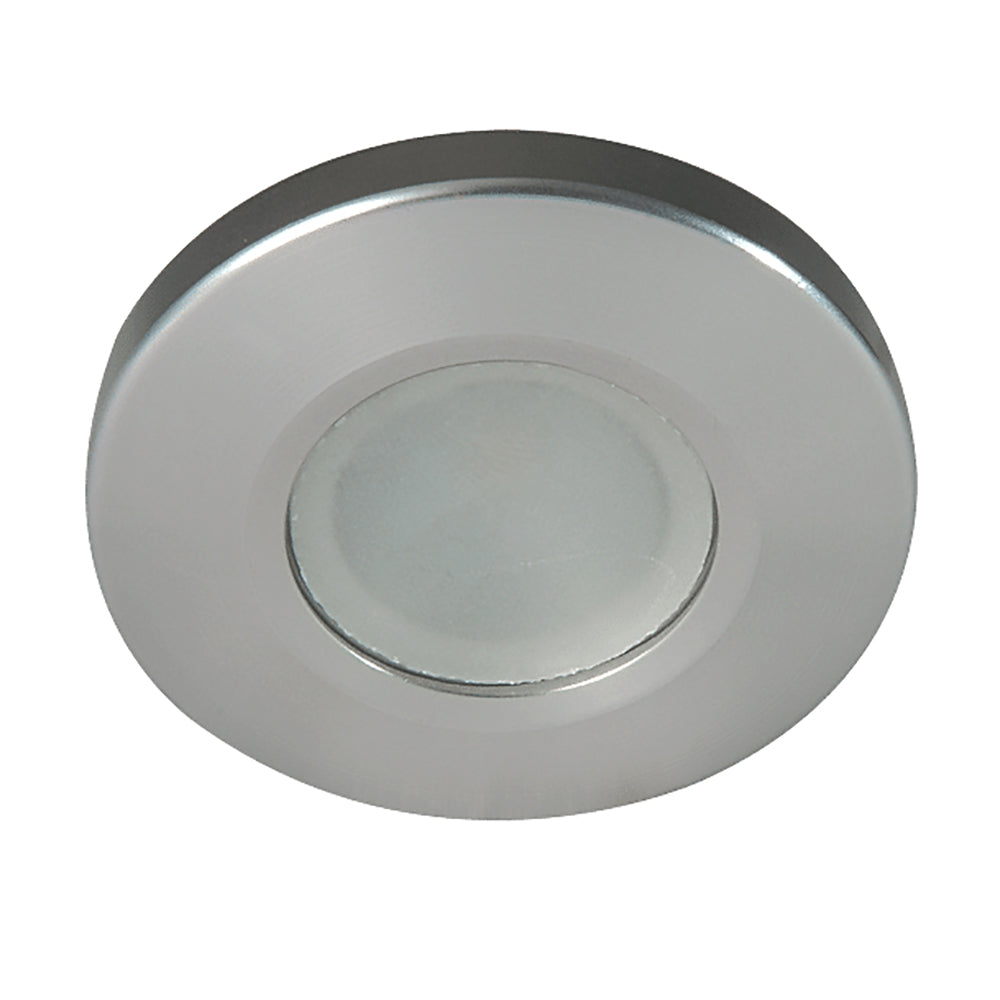

The Lumitec Orbit Flush Mount Down Light delivers class-leading LED output in a compact, shallow-profile housing that installs in minutes. At under half an inch of mounting depth, it fits comfortably in salons, staterooms, helm stations, flybridges, and hardtops without cutting deep into overhead structure. The fully sealed, IP67-rated composite housing stands up to demanding marine environments, while built-in intelligent circuitry supports dimming and multi-color control without external modules, specialty switches, or added wire runs.

Specifications:

• Voltage: 10–30V DC
• 12V DC Current Draw: 315mA
• 24V DC Current Draw: 175mA
• Correlated Color Temperature: 5000K
• Color Rendering Index: 70+
• Rated Watts: 4W
• White Lumens: 136
• Operating Temperature: -31°F to +131°F (-35°C to +55°C)

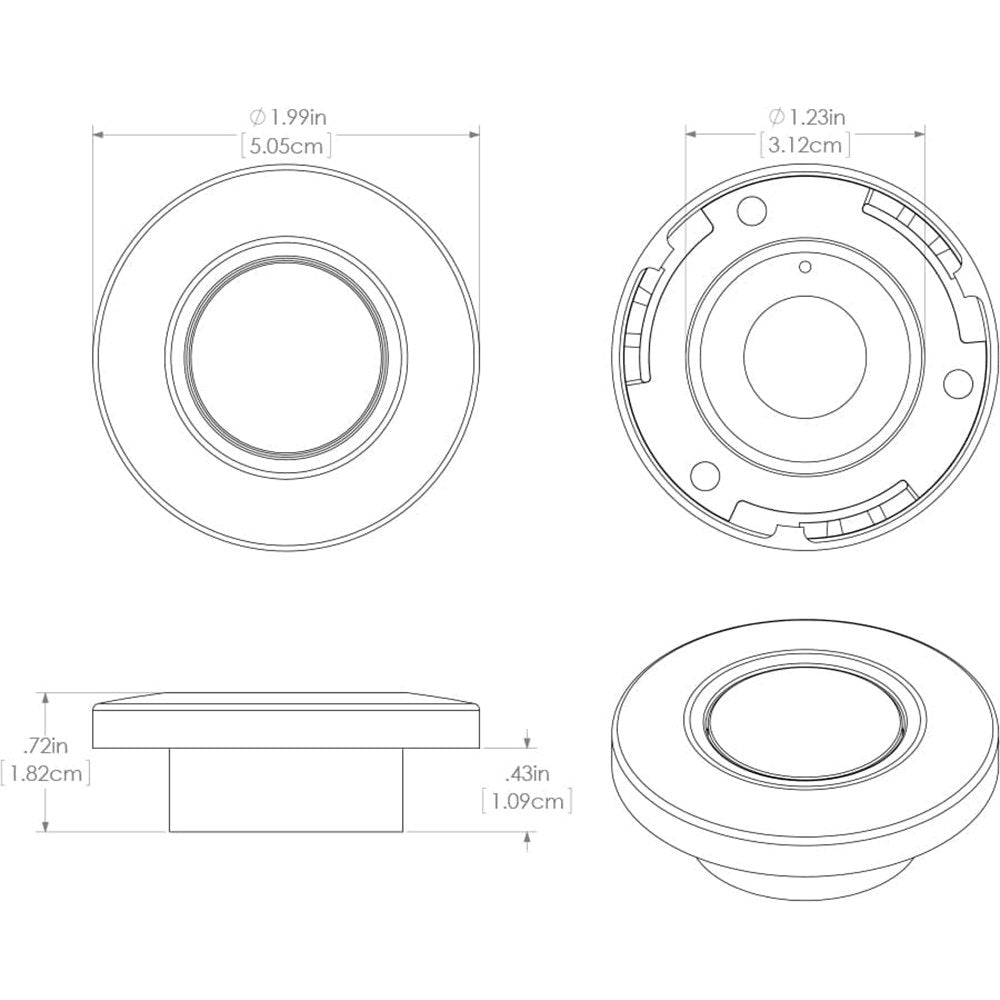

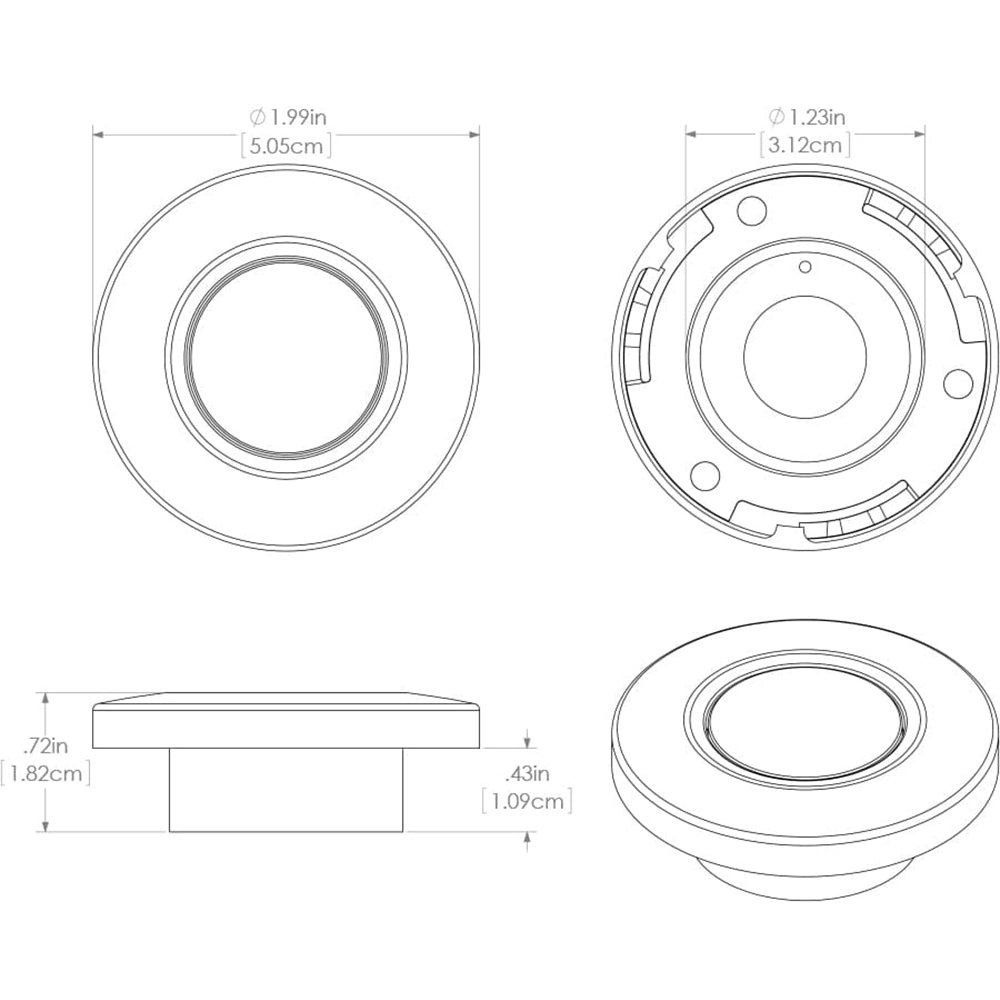

• Width: 1.99" (5.05cm)
• Height: 1.99" (5.05cm)
• Depth: 0.72" (1.82cm)
• Ingress Protection: IP67 fully sealed
• Mounting Depth: Less than 1/2"

Resources:

• Installation Guide (PDF)
• Quick Guide (PDF)
• Brochure (PDF)

⚠️ WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Available in White Non-Dimming, Warm White Dimming, 2-Color White/Red Dimming and 2-Color White/Blue Dimming -- choose your option below.
