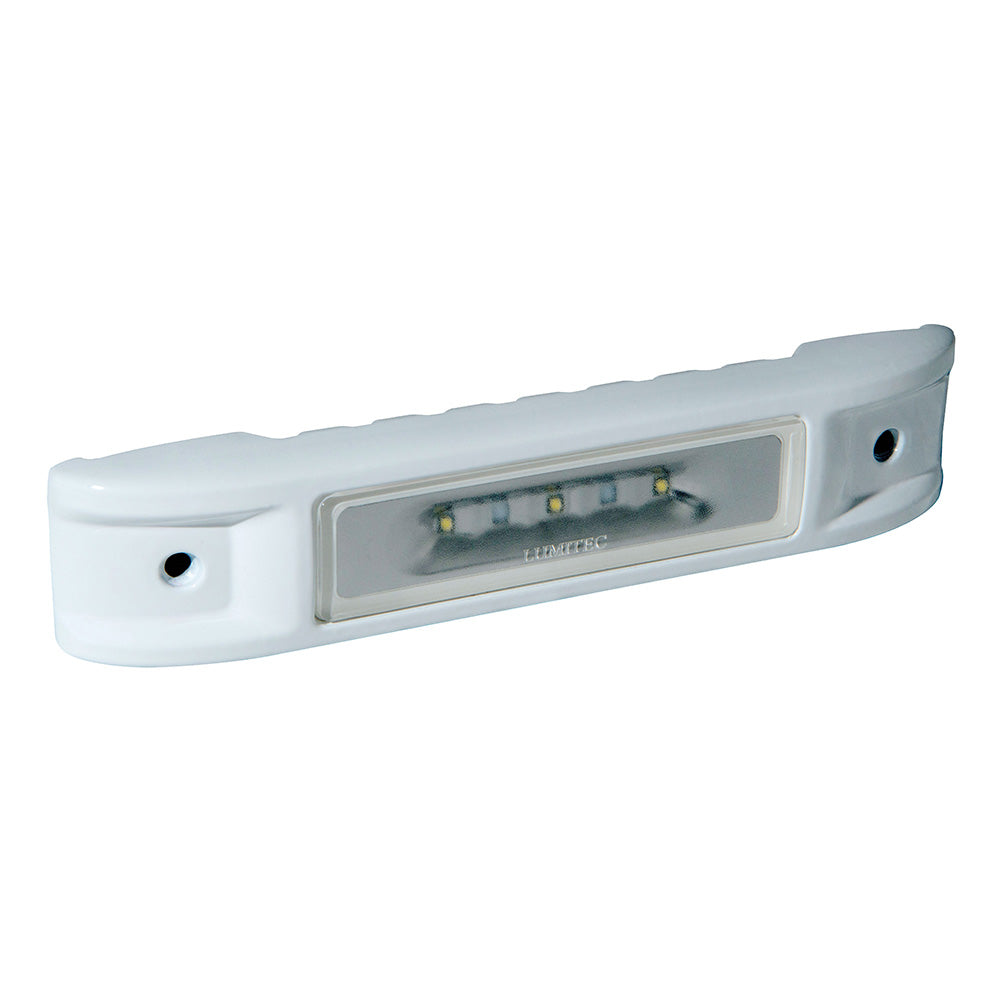

The Lumitec Ibiza delivers 1,000 integrating-sphere-measured lumens in a sleek, low-profile housing that's built to handle the heat, vibration, and moisture of an engine room. Dual red/white output lets you preserve night vision or flood a workspace with crisp 5000K white light, while IP67-rated full sealing keeps moisture and dust out entirely. A 180-degree engineered beam pattern reaches every corner, and broad 10–30V DC compatibility pairs with PWM dimmer support for flexible installation aboard almost any vessel.

Specifications:

• Lumens (White): 1,000 (integrating-sphere measured)
• Voltage: 10–30V DC
• Current Draw at 12V DC: 1.3A
• Current Draw at 24V DC: 600mA
• Rated Watts: 16W
• Color Temperature (CCT): 5000K
• CRI: 70+
• Operating Temperature: -31°F to +131°F (-35°C to +55°C)
• Timed Toggled Protocol (TTP): Yes
• Third-Party Dimmer Compatibility (3PD): Yes
• Color Match Commitment (CM): Yes
• IP Rating: IP67
• Finish: White

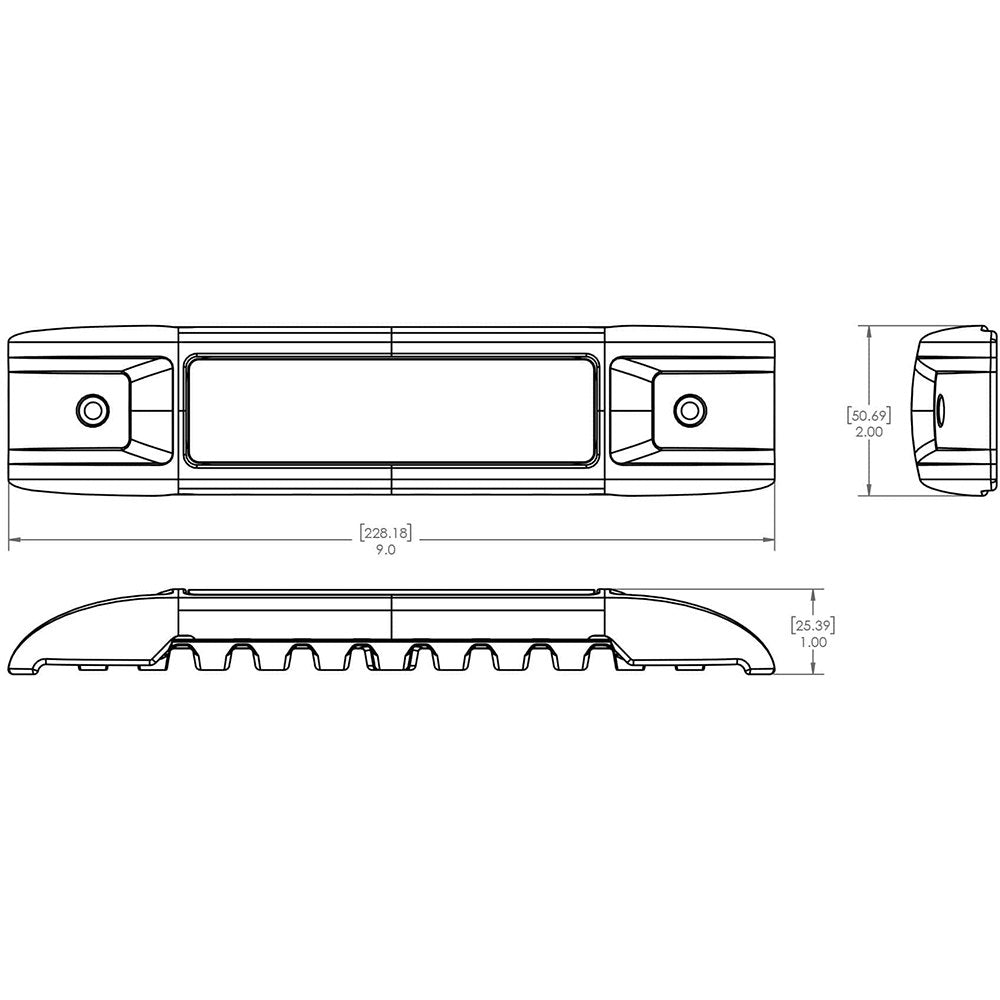

• Length: 2 in (5.08 cm)
• Width: 9 in (22.86 cm)
• Depth: 1 in (2.54 cm)
• Mounting Hole Diameter: N/A
• Diameter: N/A

Resources:

• Brochure (PDF)
