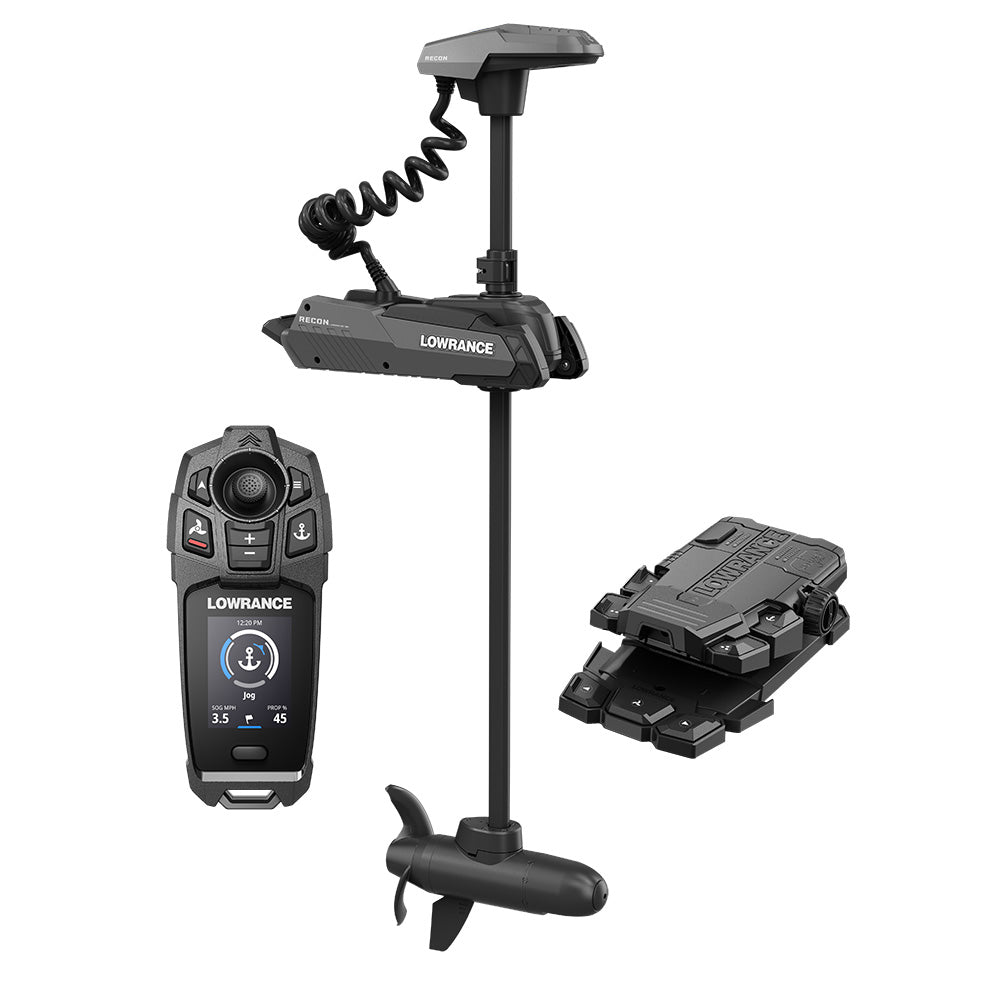

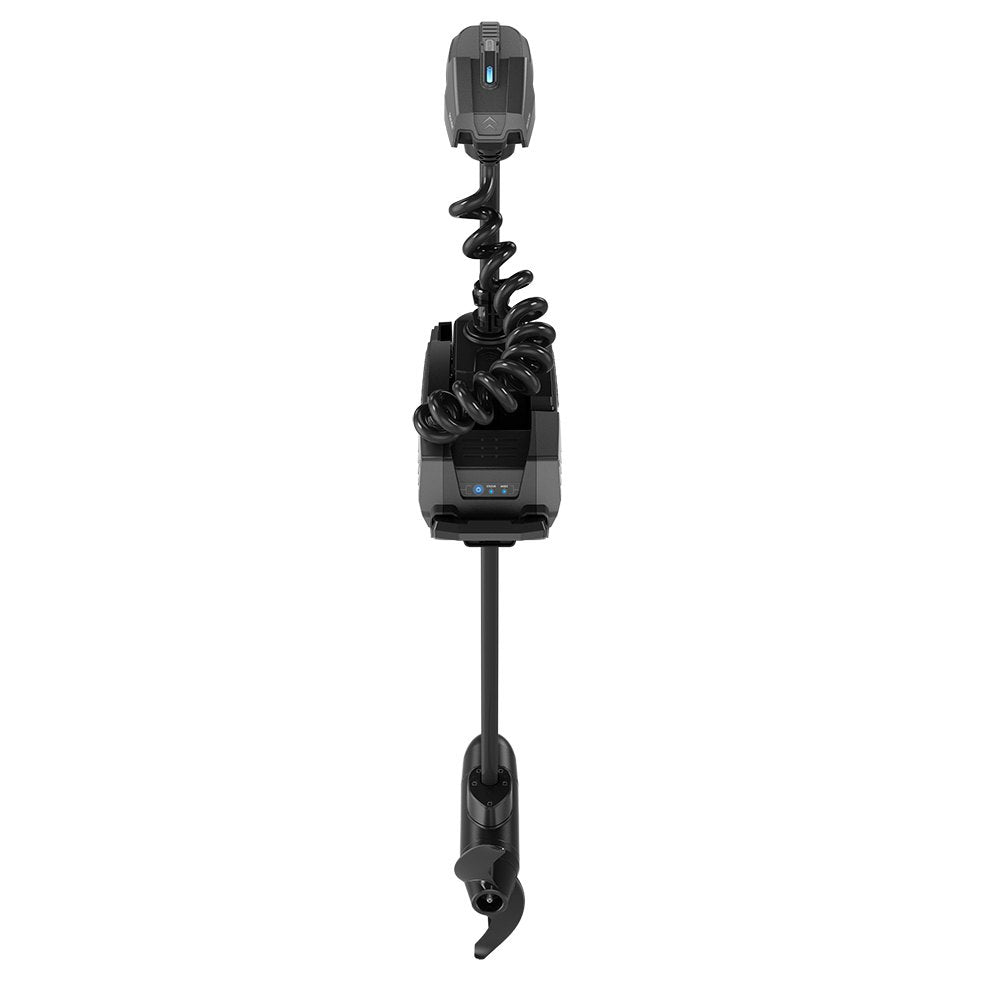

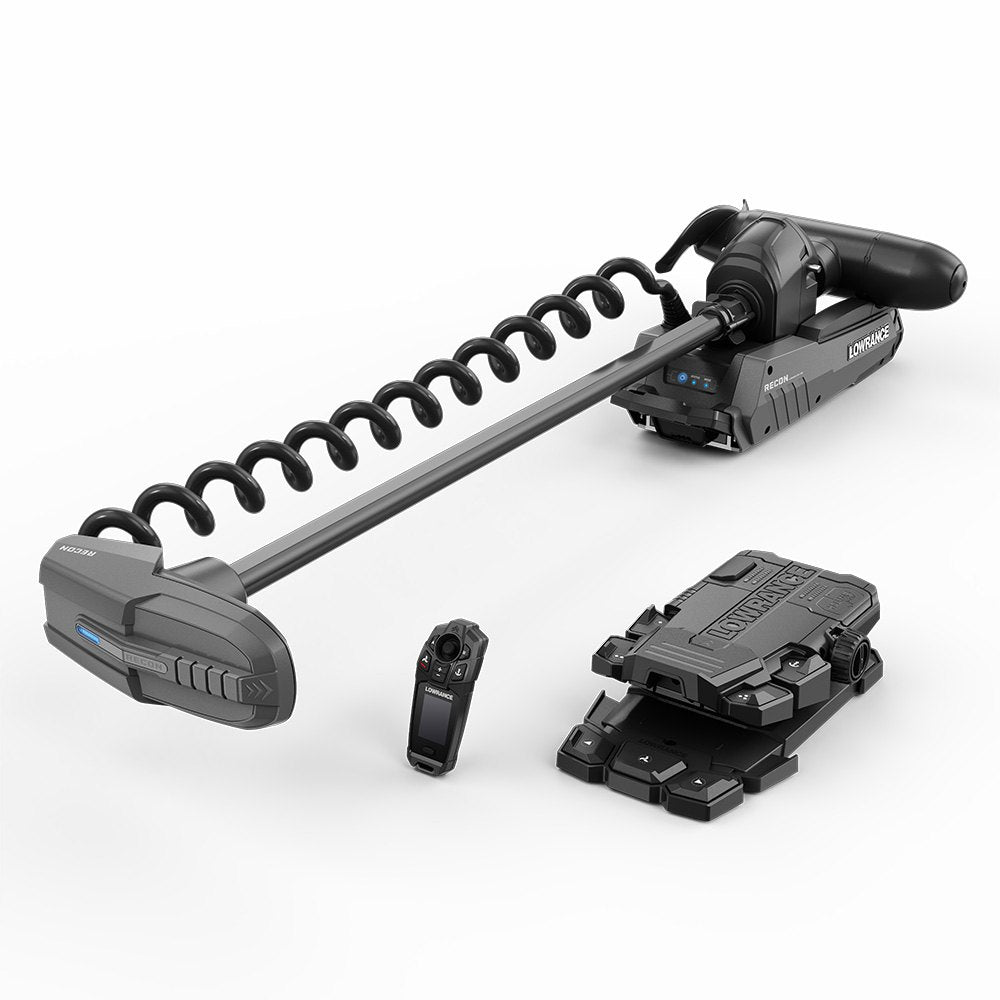

The Lowrance Recon FW trolling motor pairs a 60-inch carbon-fiber-infused composite shaft with a brushless 24V/36V drivetrain and precision GPS positioning, giving freshwater anglers quiet, reliable power and full positional control. The included FreeSteer joystick remote enables diagonal jogs in 8 directions so you can shift anchor position without re-anchoring, while the wireless configurable foot pedal with detachable, programmable lower keypad lets you steer from anywhere on the boat. An HDI nosecone delivers Lowrance-pedigree sonar images beneath the surface, and the plug-and-play nosecone design supports an optional upgrade to Active Imaging 3-in-1 sonar. One-hand cam lock depth collar, multiple accessory mounting points, LED indicators, and backlit controls round out a motor built around practical on-the-water use.

Features:

• Best-in-class power with near-silent brushless 24V/36V motor
• Precision GPS positioning with compass sensor support
• FreeSteer joystick remote with color LCD — 8-direction diagonal jog capability
• Wireless, configurable foot pedal with detachable and programmable lower keypad
• HDI Nosecone with plug-and-play upgrade path to Active Imaging 3-in-1 sonar
• Multiple accessory mounting points
• One-hand cam lock depth collar for on-the-go adjustments
• LED indicators and backlit controls for low-light visibility
• NMEA 2000 connectivity
• User-serviceable design with diagnostic error codes visible on remote, mobile app, or display
• Lifetime shaft warranty; 3-year motor warranty

Specifications:

• Shaft Length: 60 inches
• Maximum Thrust: 120 lbs. @ 36V; 97 lbs. @ 24V
• Supply Voltage: 24V or 36V
• Steering Modes: Wireless foot pedal and remote
• Foot Pedal Heel-Toe Travel: 40 degrees
• Steering Adjustment Increment: 1 degree
• Turn Patterns / Maneuvers: Yes
• Compass Sensor: Internal
• Sonar: HDI Nosecone — Medium/High CHIRP, 455/800 kHz
• Waterproof Rating: IPX7
• Mounting Type: Pivot style
• Dimensions (L x W x D): 11¾" L × 7¼" W × 4½" D
• Connectivity: NMEA 2000
• Shaft Material: Carbon-fiber-infused composite
• Warranty: 3-year motor warranty; lifetime shaft warranty

In the Box:

• Recon FW 60" Trolling Motor
• FreeSteer Joystick Remote
• Wireless Foot Pedal
• HDI Nosecone

Resources:

• Owner's Manual (PDF)
• Installation Guide (PDF)
