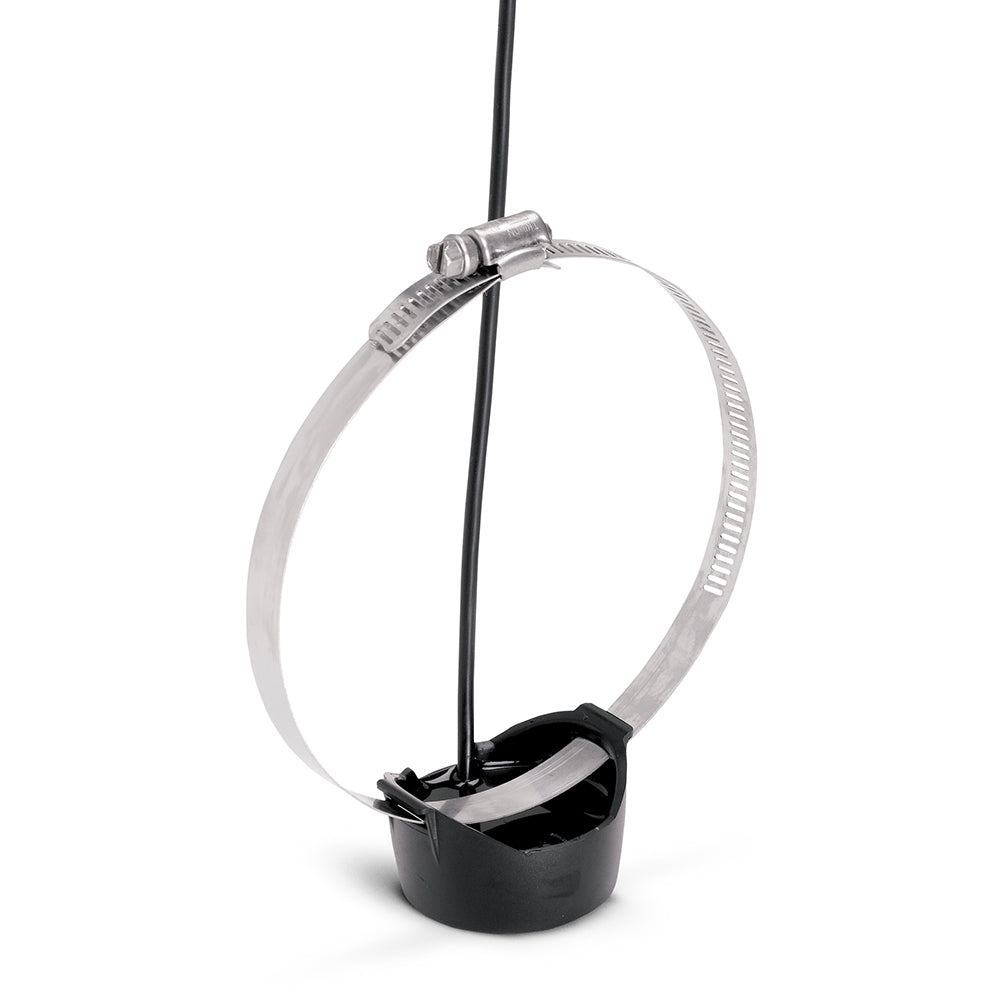

The Humminbird XTM-9-HW-T mounts directly to your trolling motor and delivers Dual Spectrum CHIRP 2D sonar with a high-frequency beam and wide cone angle — reaching depths up to 1,200 feet. A built-in temperature sensor, rugged composite housing, and 20-foot cable make it a straightforward upgrade for compatible HELIX units.

Specifications:

• Transducer Type: Dual Spectrum CHIRP 2D Sonar (trolling motor mount)
• CHIRP Frequency — Full: 150–220 kHz | Narrow: 180–240 kHz | Wide: 140–200 kHz
• Maximum Depth: 1,200 ft (365 m)
• Built-in temperature sensor
• Rugged composite construction
• Cable length: 20 ft
• Compatible units: HELIX 5 CHIRP G2 (GPS-equipped models only), HELIX 7 CHIRP G2/G3 (GPS-equipped and CHIRP DI G2 models), HELIX 7 CHIRP G2N/G3N (all models), HELIX 8 CHIRP G3N (all models), HELIX 9 CHIRP G2N/G3N (all models), HELIX 10 CHIRP G2N/G3N (all models), HELIX 12 CHIRP G2N/G3N (all models), ICE HELIX CHIRP G2 — all models in Open Water Mode
• Side Imaging and Down Imaging units can use this transducer for 2D sonar only; Side Imaging and Down Imaging functions are not supported

Resources:

• Owner's Manual (PDF)
• Installation Guide (PDF)
