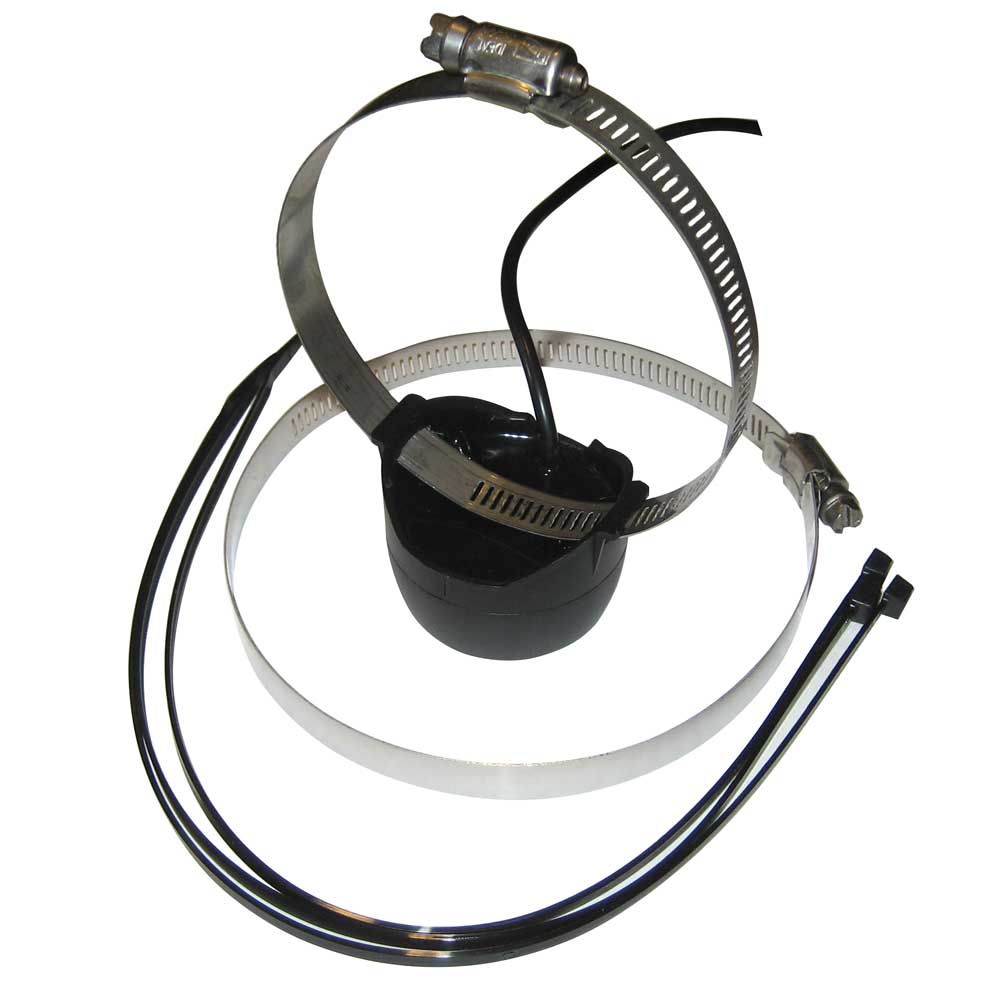

The Humminbird XTM-9-20T mounts directly to the body of most trolling motors, delivering dual-beam sonar readings without the blind spots that can occur when running only a transom transducer. Its hydrodynamic low-profile shape cuts drag and sheds weeds, and it pairs cleanly with a standard transom mount transducer via a switch so your fishfinder can pull data from either location. Compatible with a broad range of Humminbird units, it ships ready to install with all necessary mounting hardware and a 15-foot cable.

Specifications:

• Type: Trolling motor mount transducer with temperature sensor
• Profile: Hydrodynamic, low-drag design
• Beam configuration: Dual beam
• Cone angles: 20° and 60°
• Frequencies: 200 kHz / 83 kHz
• Cable length: 15 feet
• Includes: Trolling motor mounting hardware
• Compatible units: Piranha 5, Legend ID40, Matrix 15, Matrix 17, Matrix 25, Matrix 55, Matrix 65, Matrix 67, FF515, FF535, FF565

Resources:

• Owner's Manual (PDF)
• Installation Guide (PDF)
• Quick Start Guide (PDF)
