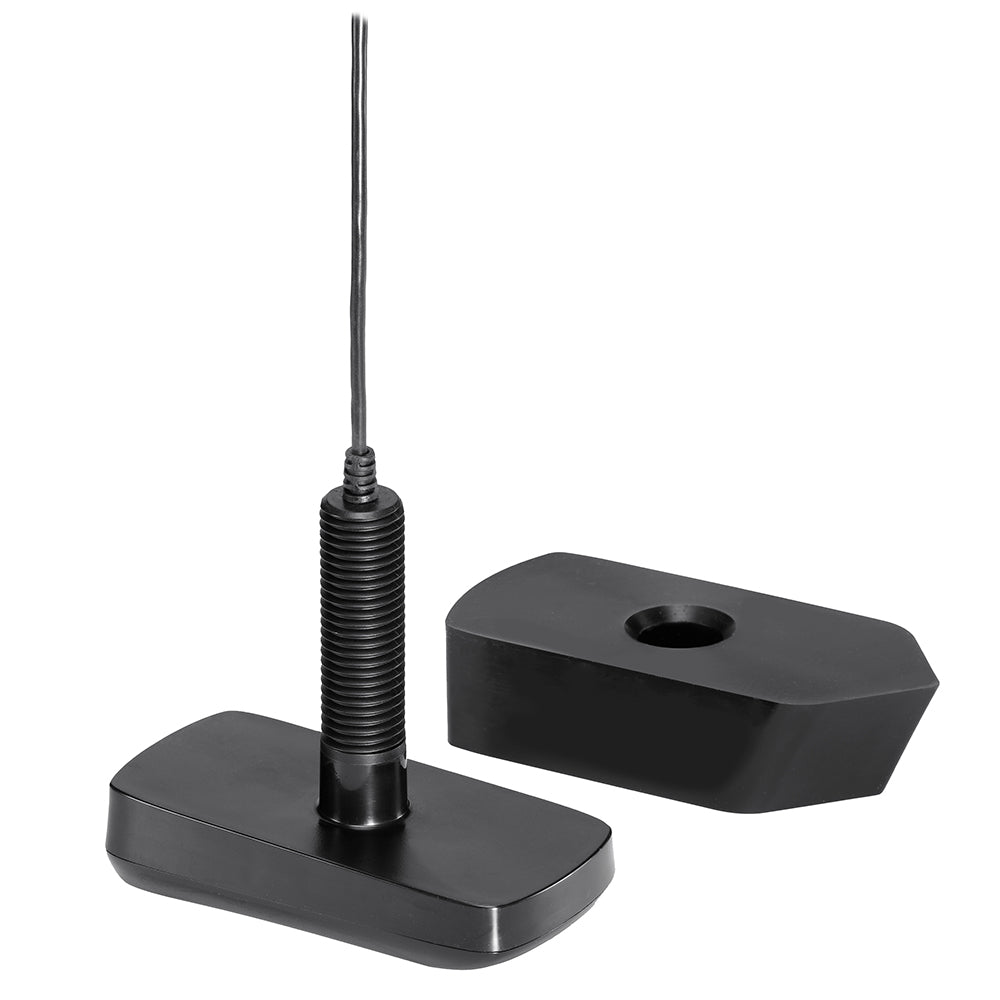

The Humminbird XTH 9 DB 74 P delivers dual-beam coverage through a robust plastic thru-hull installation, giving anglers simultaneous 20° and 74° cone angles with built-in temperature sensing. Designed for permanent mounting below the hull, it pairs with compatible Humminbird units to provide reliable depth and fish-finding data across two frequencies.

Specifications:

• Beam type: Dual Beam, 20° / 74°
• Frequencies: 200 kHz / 50 kHz
• Temperature sensor: Included
• Dimensions (below hull): 6.7" L x 3" W x 1.4" D
• Shaft diameter: 1"
• Cable length: 30 ft
• Mount type: Plastic thru-hull

Resources:

• Owner's Manual (PDF)
• Installation Guide (PDF)
