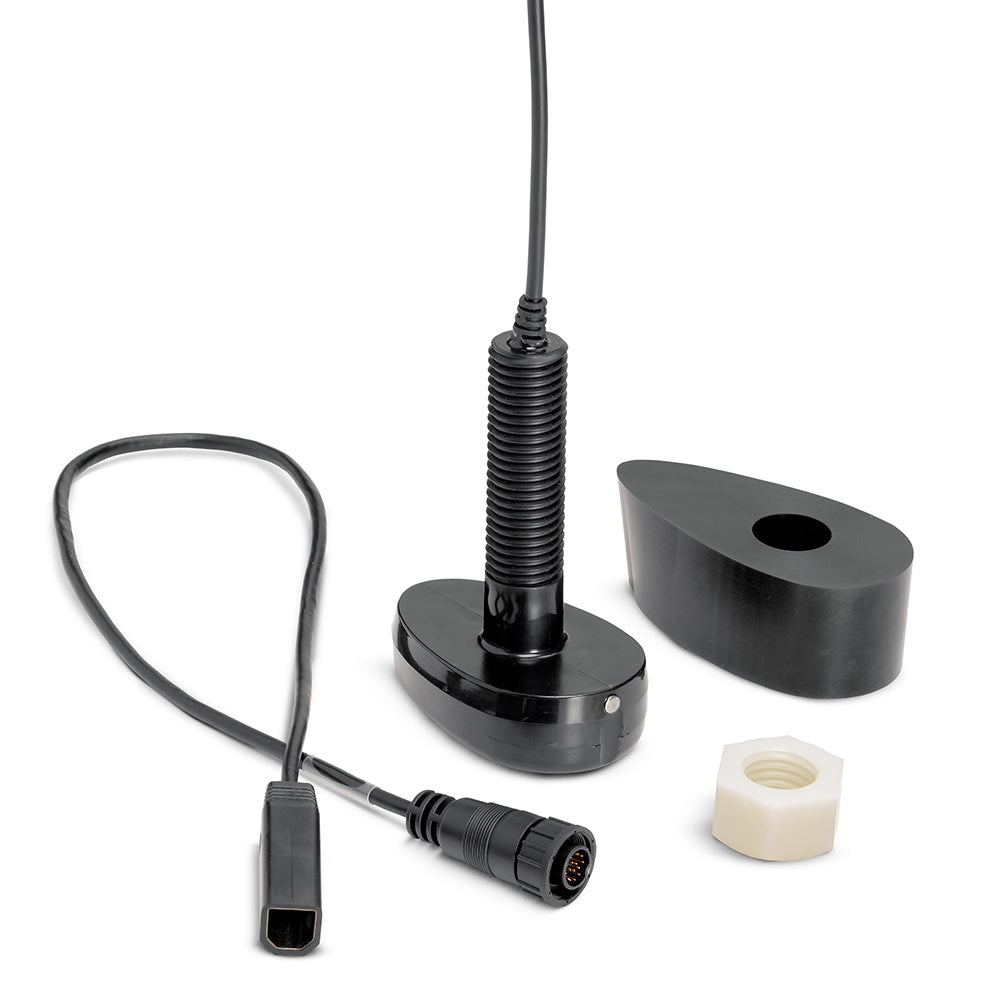

The Humminbird XPTH-9-HW-T is a plastic thru-hull transducer built for serious freshwater and saltwater anglers who want high-performance Dual Spectrum CHIRP 2D sonar in a durable composite housing. It delivers a wide cone angle, reaches depths to 1,200 feet, and integrates a built-in temperature sensor — all through a 30-foot cable connection to compatible HELIX and ICE HELIX units.

Specifications:

• Transducer type: Plastic Thru-Hull, Dual Spectrum CHIRP 2D Sonar
• CHIRP frequency range — Full: 150–220 kHz, Narrow: 180–240 kHz, Wide: 140–200 kHz
• Maximum depth: 1,200 ft (365 m)
• Built-in temperature sensor included
• Rugged composite construction
• Cable length: 30 feet
• Compatible Humminbird units: HELIX 5 CHIRP G2 (GPS-equipped models only); HELIX 7 CHIRP G2/G3 (GPS-equipped and CHIRP DI G2 models); HELIX 7 CHIRP G2N/G3N (all models); HELIX 8 CHIRP G3N (all models); HELIX 9 CHIRP G2N/G3N (all models); HELIX 10 CHIRP G2N/G3N (all models); HELIX 12 CHIRP G2N/G3N (all models); ICE HELIX CHIRP G2 (all models, Open Water Mode only)
• Side Imaging and Down Imaging units may use this transducer for 2D sonar only — Side Imaging and Down Imaging functions are not supported

Resources:

• Owner's Manual (PDF)
• Installation Guide (PDF)
