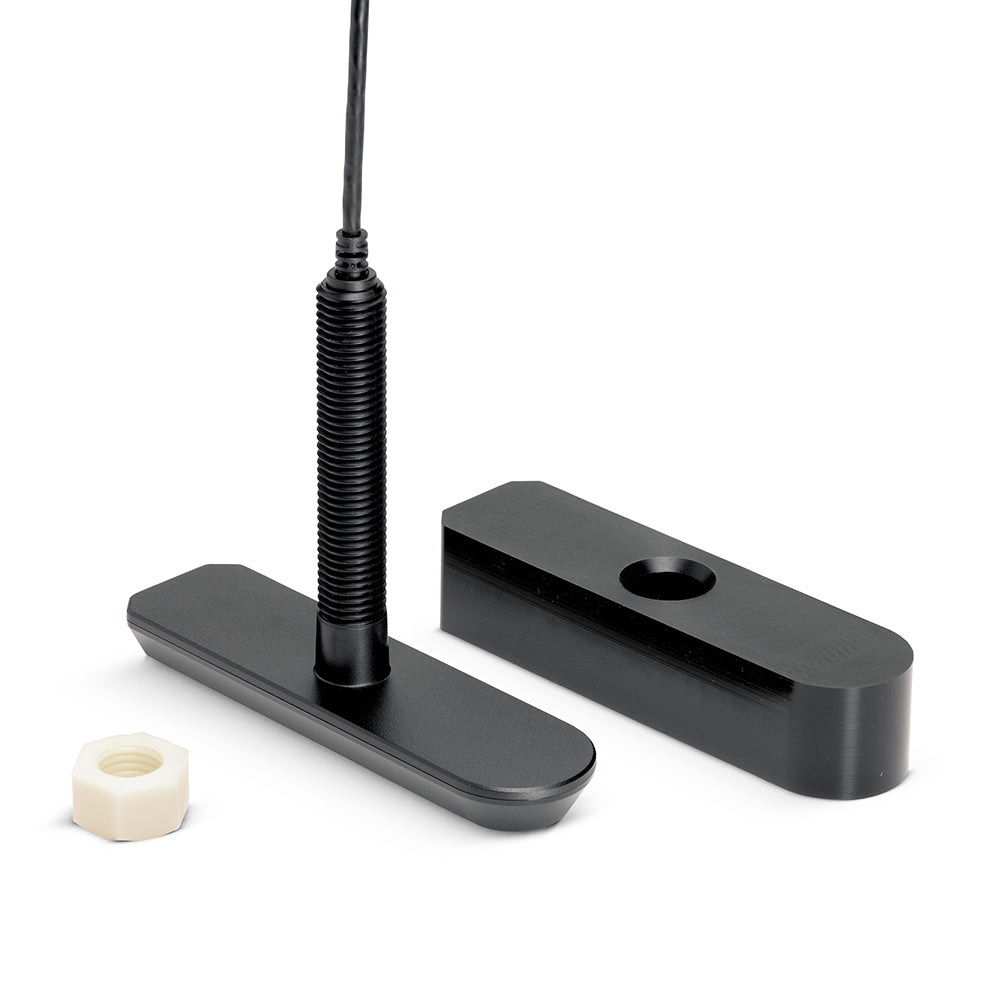

The Humminbird XPTH-9-HW-MSI-T brings MEGA Side Imaging+, MEGA Down Imaging+, and Dual Spectrum CHIRP 2D sonar into a rugged composite thru-hull housing. A built-in temperature sensor and 30-foot cable are included, making this a capable, ready-to-install solution for serious anglers running compatible HELIX units.

Specifications:

• Compatible units: HELIX 8 CHIRP MEGA SI+ GPS G3N, HELIX 9 CHIRP MEGA SI+ GPS G3N, HELIX 10 CHIRP MEGA SI+ GPS G3N, HELIX 12 CHIRP MEGA SI+ GPS G3N
• Dual Spectrum CHIRP 2D frequencies: Full 150–220 kHz, Narrow 180–240 kHz, Wide 140–200 kHz
• Dual Spectrum CHIRP max depth: 1,200 ft (365 m)
• MEGA Side Imaging+ frequencies and max side-to-side range: 455 kHz (440–500 kHz) – 800 ft (244 m); 800 kHz (790–850 kHz) – 250 ft (76 m); MEGA SI+ (1,075–1,150 kHz) – 400 ft
• MEGA Down Imaging+ frequencies and max depth: 455 kHz (440–500 kHz) – 400 ft (122 m); 800 kHz (790–850 kHz) – 125 ft (38 m); MEGA DI+ (1,075–1,150 kHz) – 200 ft (61 m)
• Built-in temperature sensor
• Rugged composite (plastic) thru-hull construction
• Cable length: 30 ft

Resources:

• Owner's Manual (PDF)
• Installation Guide (PDF)
