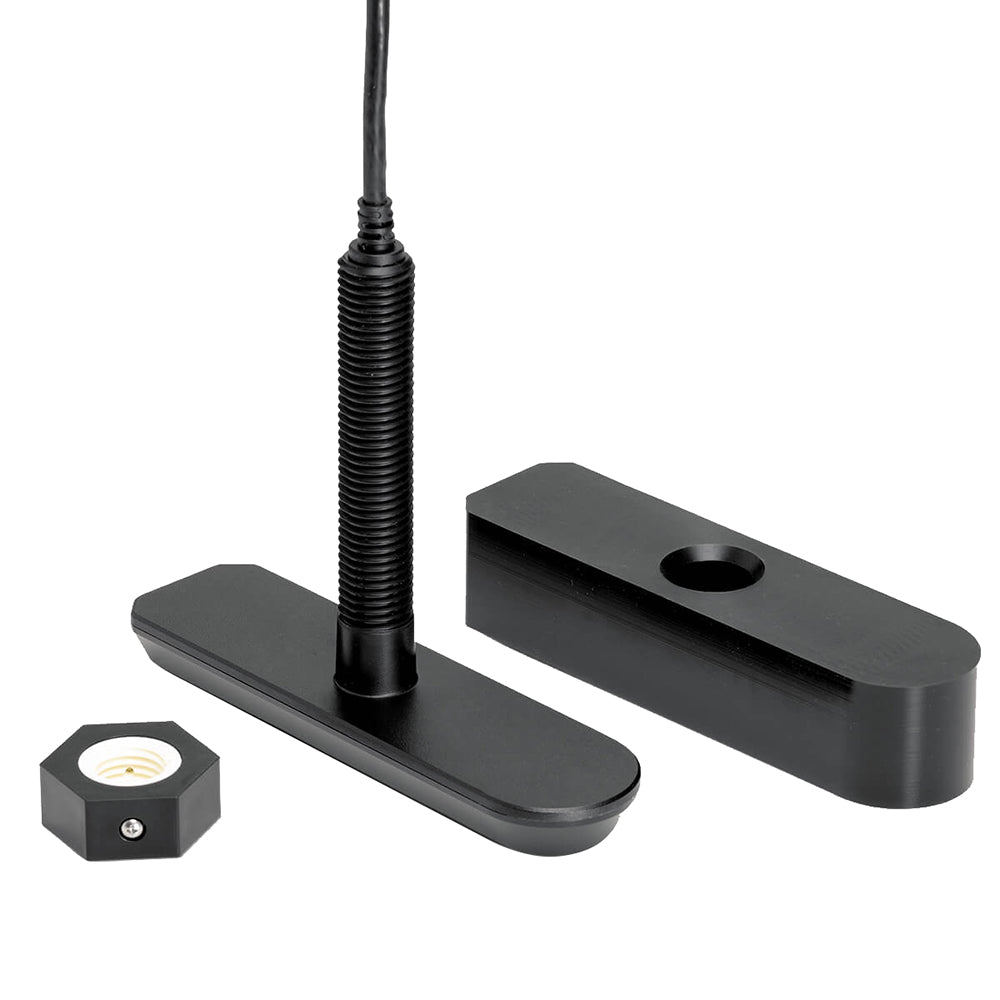

The Humminbird XPTH 14 HW MSI T is a plastic thru-hull transducer built for SOLIX G2 fishfinders, delivering MEGA Side Imaging+, MEGA Down Imaging+, and Dual Spectrum CHIRP 2D sonar from a single rugged composite housing. A built-in temperature sensor and 30-foot cable come included, making this a complete solution for anglers upgrading to a flush-mounted installation.

Specifications:

• Compatible units: SOLIX 10 CHIRP MEGA SI+ GPS G2, SOLIX 12 CHIRP MEGA SI+ GPS G2, SOLIX 15 CHIRP MEGA SI+ GPS G2
• MEGA Side Imaging frequencies and max side-to-side range: 455 kHz (440–500 kHz) – 800 ft (244 m); 800 kHz (790–850 kHz) – 250 ft (76 m); MEGA SI+ (1075–1150 kHz) – 400 ft (122 m)
• MEGA Down Imaging frequencies and max depth: 455 kHz (440–500 kHz) – 400 ft (122 m); 800 kHz (790–850 kHz) – 250 ft (76 m); MEGA DI+ (1075–1150 kHz) – 200 ft (61 m)
• Dual Spectrum CHIRP frequency ranges: Full 150–220 kHz; Narrow 180–240 kHz; Wide 140–200 kHz
• Dual Spectrum CHIRP max depth: 1,200 ft (365 m)
• Dimensions: 8.4" L x 2.3" W x 1.0" D; stem length 5", stem diameter 1"
• Cable length: 30 ft
• Built-in temperature sensor
• Rugged composite (plastic) thru-hull construction
• 1-Year Limited Warranty
