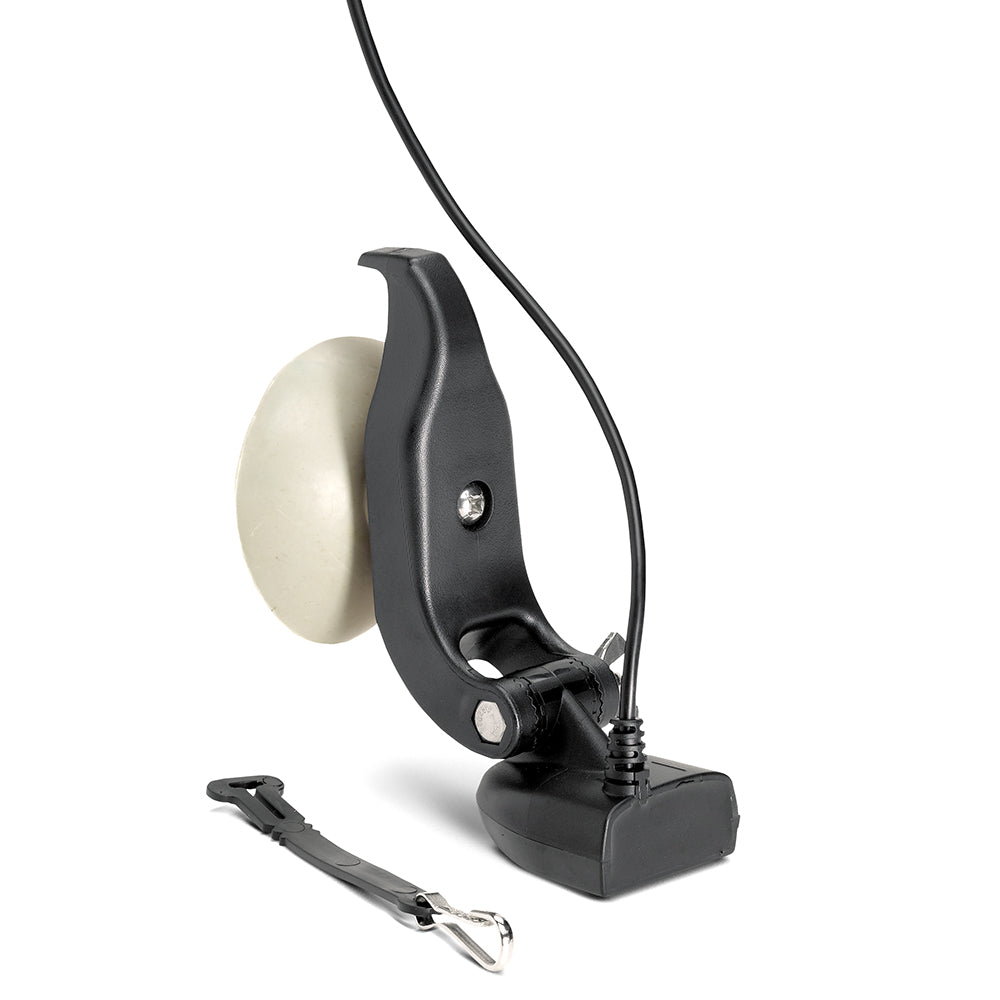

The Humminbird XPT-9-HW-T brings Dual Spectrum CHIRP sonar capability to portable setups, using a suction cup mount that attaches to smooth hull surfaces without permanent installation. A built-in temperature sensor and 20-foot cable are included, and the transducer delivers a high-frequency, wide-cone-angle beam for sharp 2D sonar returns down to 1,200 feet. Note that this transducer does not support Side Imaging or Down Imaging, and is not recommended for high-speed use.

Specifications:

• Transducer type: Dual Spectrum CHIRP Portable
• Sonar supported: Dual Spectrum CHIRP 2D Sonar (high frequency, wide cone angle)
• Full CHIRP frequency range: 150–220 kHz
• Narrow CHIRP frequency range: 180–240 kHz
• Wide CHIRP frequency range: 140–200 kHz
• Maximum depth: 1,200 ft (365 m)
• Mount type: Suction cup — adheres to smooth surface hulls
• Cable length: 20 feet
• Built-in temperature sensor: Yes
• Includes all required mounting hardware
• Not recommended for high speeds
• Side Imaging and Down Imaging units can use this transducer as a 2D sonar only — Side Imaging and Down Imaging are not supported
• Compatible with: HELIX 5 CHIRP G2 (GPS-equipped models only); HELIX 7 CHIRP G2/G3 (GPS-equipped and CHIRP DI G2 models); HELIX 7 CHIRP G2N/G3N (all models); HELIX 8 CHIRP G3N (all models); HELIX 9 CHIRP G2N/G3N (all models); HELIX 10 CHIRP G2N/G3N (all models); HELIX 12 CHIRP G2N/G3N (all models); ICE HELIX CHIRP G2 (all models, in Open Water Mode)

Resources:

• Owner's Manual (PDF)
• Installation Guide (PDF)
