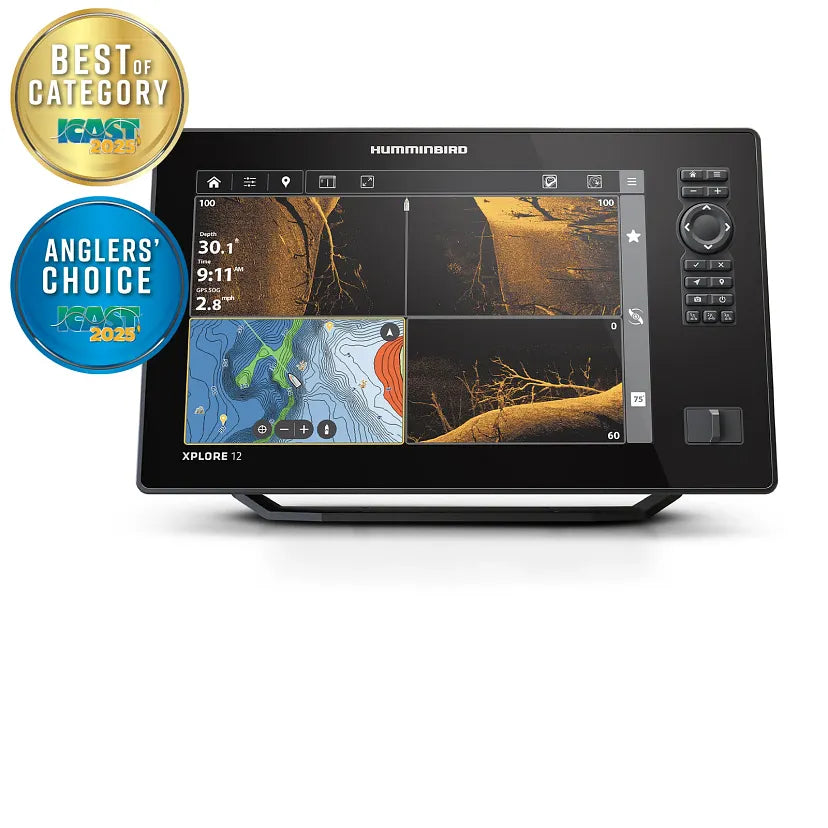

The Humminbird XPLORE 12 CMSI+ combines a 12-inch Full-HD touchscreen with MEGA Side Imaging+, MEGA Down Imaging+, and Dual Spectrum CHIRP sonar in a single unit built for serious freshwater and coastal anglers. Bundled LakeMaster and CoastMaster map cards covering 13 regions across the U.S. and Canada set this series apart, while Wi-Fi, Bluetooth, NMEA 2000, and Ethernet keep it fully wired into the One-Boat Network ecosystem of Humminbird, Minn Kota, and Cannon products.

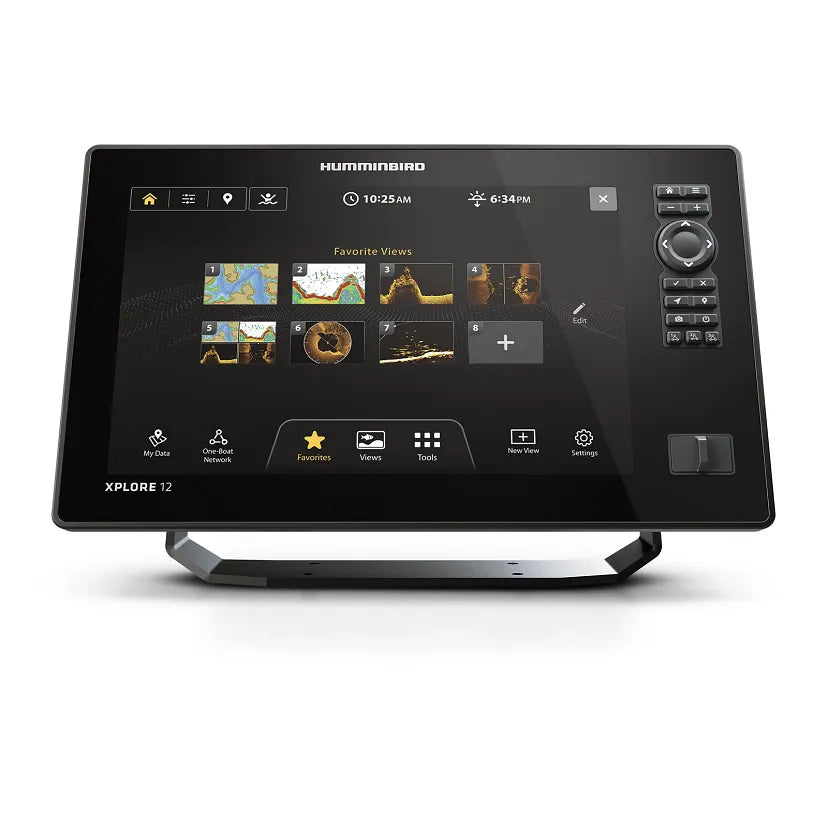

Full-HD Display with Cross Touch Interface

• 1280H x 800V resolution delivers sharp detail across sonar and chart views
• Operate via touchscreen or keypad — both are fully supported

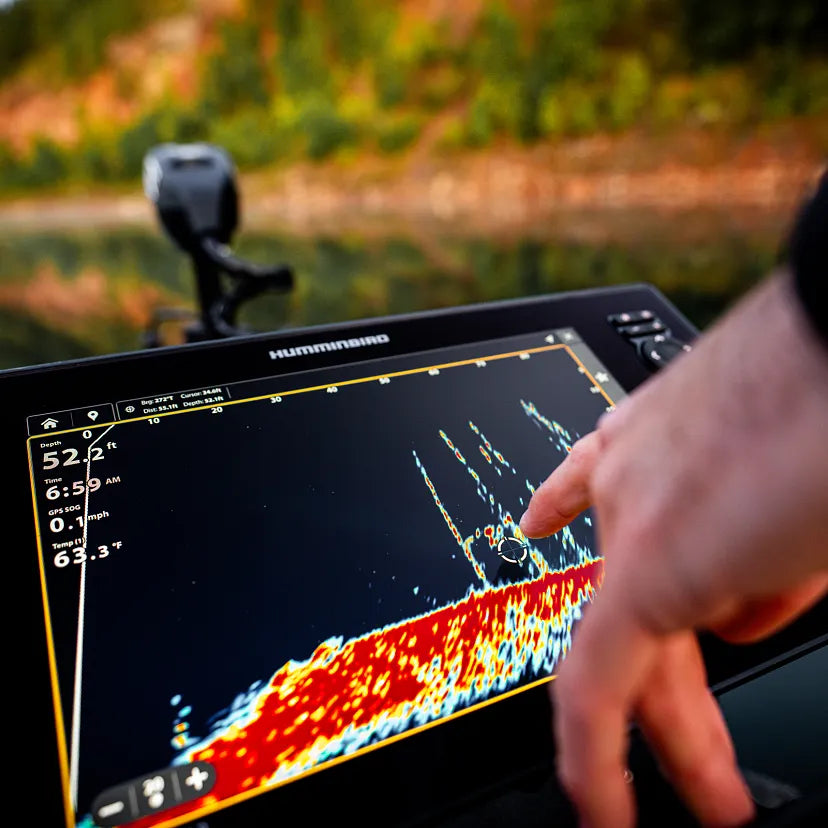

Dual Spectrum CHIRP Sonar

• Powered by a proprietary Low-Q CHIRP transducer for clear fish arches and bottom structure
• Wide Mode maximizes coverage area; Narrow Mode focuses on fine detail

MEGA Side Imaging+

• Scans up to 200 feet on either side of the boat
• Delivers 20% more detail and 60% more range than standard MEGA Side Imaging

MEGA Down Imaging+

• Coverage to 200 feet below the hull
• Provides 20% more detail and 60% more depth capability than standard MEGA Down Imaging

Internal GPS and Humminbird Basemap

• Enhanced basemap includes buoys, day markers, hazards, marinas, contours, and depth markers
• Charts over 10,000 lakes plus coastal coverage for the continental U.S.

Premium Chart Compatibility

• Includes LakeMaster and CoastMaster mapping cards with North American standard data covering 13 U.S. and Canadian regions
• Also compatible with Navionics charts

AutoChart Live

• Maps depth contours, bottom hardness, and vegetation in real time as you navigate
• Eight hours of built-in recording time standard
• Compatible with AutoChart Zero Line SD cards for expanded mapping capacity

One-Boat Network Compatible

• Integrates with Minn Kota and Cannon products via Wi-Fi, Bluetooth, NMEA 2000, and Ethernet
• Unlocks shared boat control and fish-catching features across the network

Specifications:

• Display: 12-inch Full-HD, 1280H x 800V resolution
• Interface: Cross Touch (touchscreen + keypad)
• Sonar: MEGA Side Imaging+, MEGA Down Imaging+, Dual Spectrum CHIRP
• MEGA Imaging+ range: up to 250 ft below and to either side of the boat
• Side Imaging+ range: up to 200 ft per side
• Down Imaging+ depth: up to 200 ft
• GPS: Internal with Humminbird Basemap
• Basemap coverage: 10,000+ lakes plus continental U.S. coastal charts
• Included maps: LakeMaster and CoastMaster cards, 13 U.S. and Canadian regions
• Compatible charts: Humminbird LakeMaster, CoastMaster, Navionics
• AutoChart Live: 8 hours built-in recording; expandable via AutoChart Zero Line SD cards
• Networking: Wi-Fi, Bluetooth, NMEA 2000, Ethernet
• One-Boat Network compatible: Humminbird, Minn Kota, Cannon
