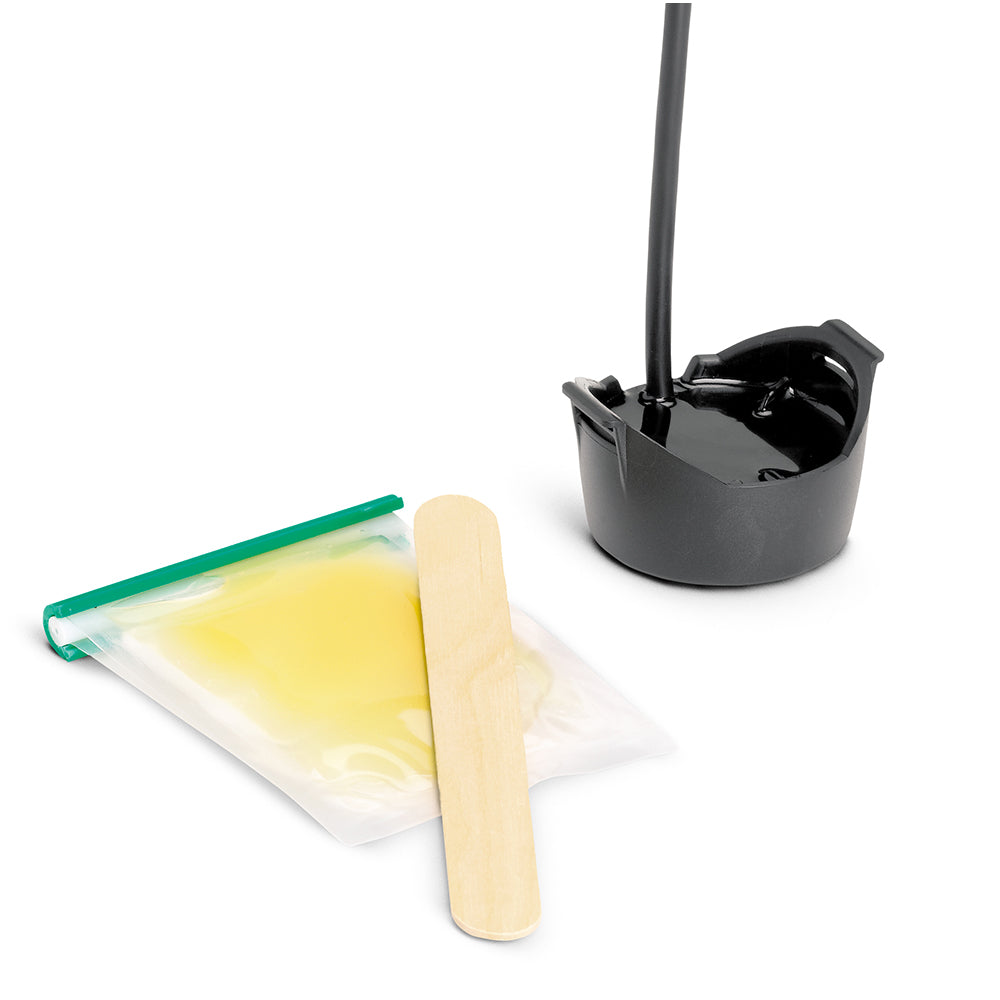

The Humminbird XP 9 HW is an in-hull Dual Spectrum CHIRP transducer designed for glue-in installation inside single-layer fiberglass hulls. It delivers CHIRP 2D sonar with a high-frequency beam and wide cone angle, reaching depths up to 1,200 ft. An epoxy kit and 20-foot cable are included for a clean, permanent installation.

Specifications:

• Transducer type: In-Hull Dual Spectrum CHIRP (2D Sonar only)
• CHIRP frequency range — Full: 150–220 kHz, Narrow: 180–240 kHz, Wide: 140–200 kHz
• Maximum depth: 1,200 ft (365 m)
• Installation method: Glue-in inside single-layer fiberglass hulls
• Cable length: 20 ft
• Includes epoxy kit
• Does not support Side Imaging or Down Imaging
• Compatible models: HELIX 5 CHIRP G2 (GPS-equipped models only), HELIX 7 CHIRP G2/G3 (GPS-equipped and CHIRP DI G2 models), HELIX 7 CHIRP G2N/G3N (all models), HELIX 8 CHIRP G3N (all models), HELIX 9 CHIRP G2N/G3N (all models), HELIX 10 CHIRP G2N/G3N (all models), HELIX 12 CHIRP G2N/G3N (all models), ICE HELIX CHIRP G2 (all models, in Open Water Mode)

Resources:

• Owner's Manual (PDF)
• Installation Guide (PDF)
