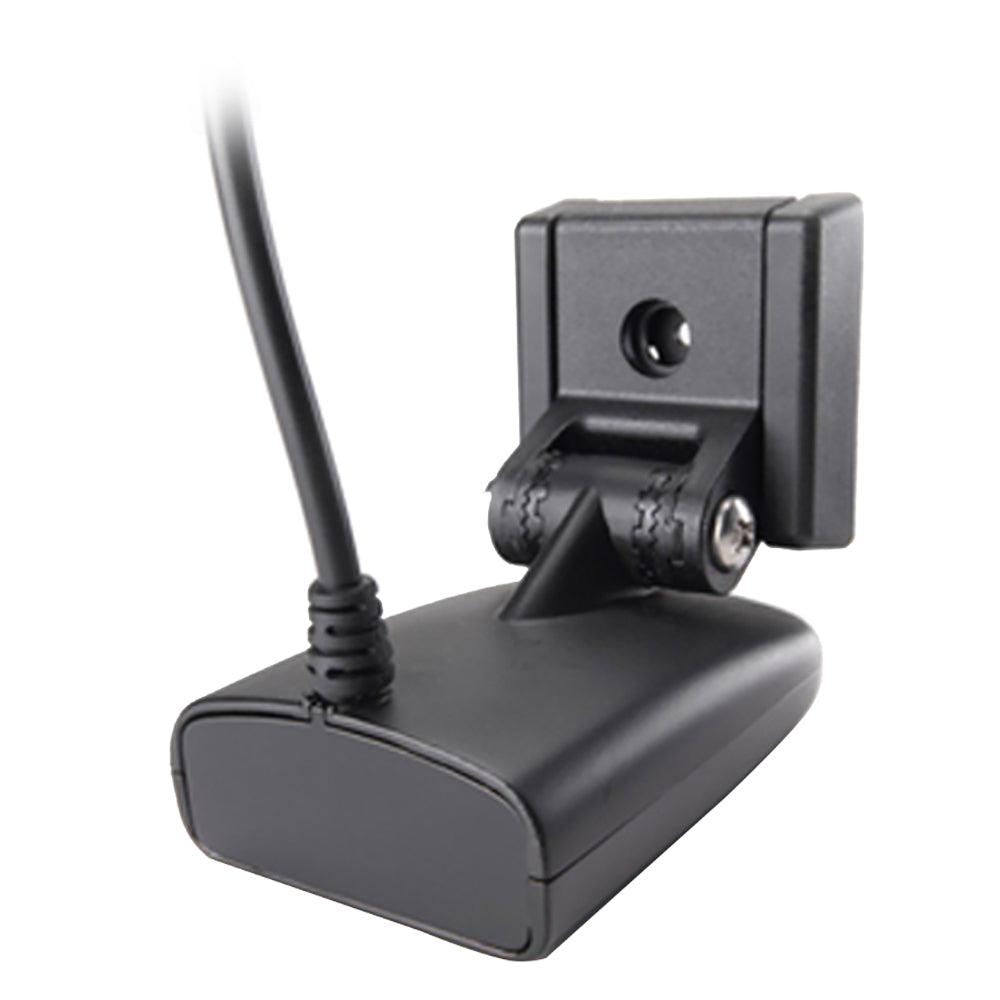

The Humminbird XNT-9-SI-180-T is a transom mount transducer built around a compact dual/side imaging design. The updated housing is more secure than earlier versions, resisting kick-up under high wave force, and includes an improved running angle along with an optional lock-down screw to override the kick-up mechanism. The hole pattern is compatible with select older Humminbird transducers, making upgrades straightforward. Designed for use with the Humminbird 797c.

Specifications:

• Mount type: Transom mount
• Imaging: Compact dual/side imaging
• Beam angles: 20°, 74°, 84°
• Frequencies: 200 kHz, 83 kHz, 455 kHz
• Built-in temperature sensor: Yes
• Kick-up protection: Improved running angle with optional lock-down screw
• Hole pattern: Compatible with select older Humminbird transducer versions
• Compatible unit: Humminbird 797c

Resources:

• Owner's Manual (PDF)
• Installation Guide (PDF)
• Quick Start Guide (PDF)
