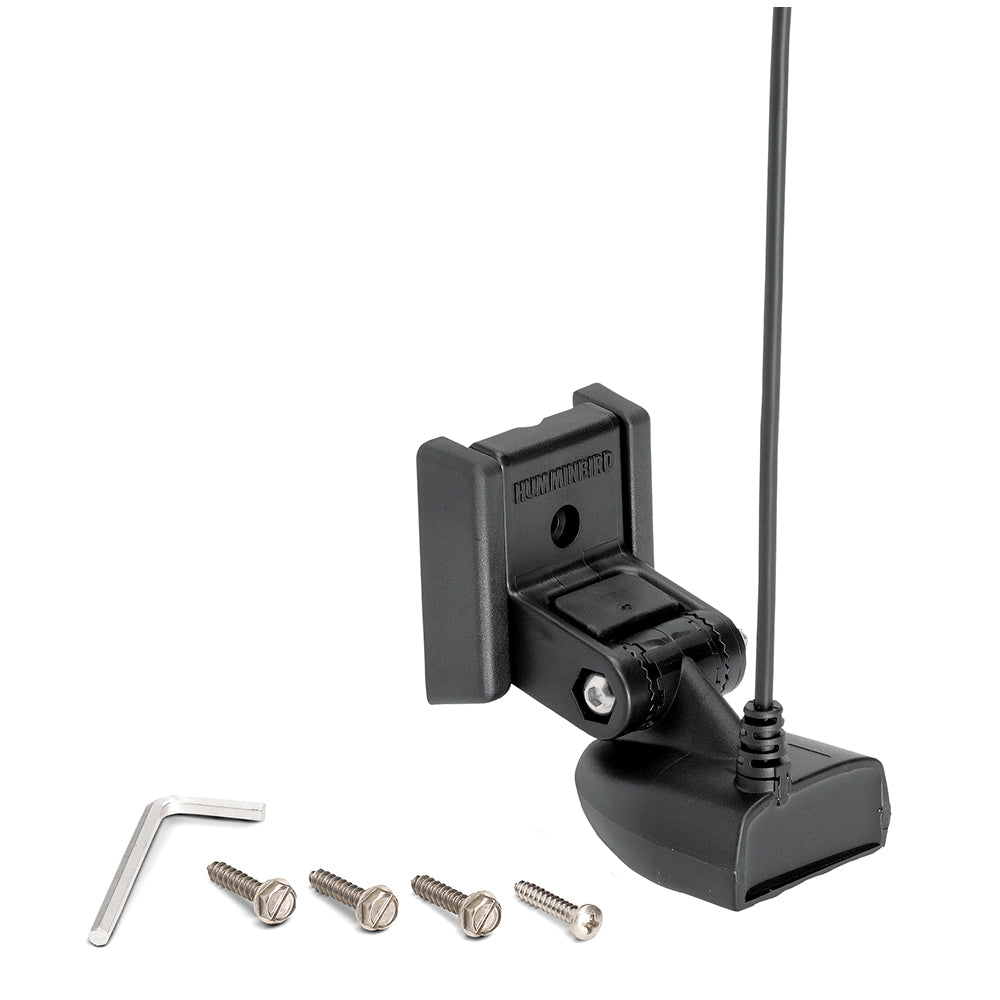

The Humminbird XNT-9-HW-T delivers Dual Spectrum CHIRP 2D sonar from a transom-mount transducer built for HELIX series fishfinders. A high-frequency beam paired with a wide cone angle gives you a CHIRP range spanning 150–220 kHz and depth capability down to 1,200 feet. The rugged composite housing, impact-release mounting bracket, built-in temperature sensor, and 20-foot cable make this a ready-to-install upgrade for compatible HELIX units.

Specifications:

• Transducer type: Transom mount, Dual Spectrum CHIRP
• Sonar supported: Dual Spectrum CHIRP 2D Sonar only — does not support Side Imaging™ or Down Imaging™
• CHIRP frequency — Full: 150–220 kHz, Narrow: 180–240 kHz, Wide: 140–200 kHz
• Maximum depth: 1,200 ft (365 m)
• Built-in temperature sensor: Yes
• Cable length: 20 ft
• Mounting bracket: Impact-release composite design
• Compatible models: HELIX 5 CHIRP G2 (GPS-equipped models only), HELIX 7 CHIRP G2/G3 (GPS-equipped and CHIRP DI G2 models), HELIX 7 CHIRP G2N/G3N (all models), HELIX 8 CHIRP G3N (all models), HELIX 9 CHIRP G2N/G3N (all models), HELIX 10 CHIRP G2N/G3N (all models), HELIX 12 CHIRP G2N/G3N (all models), ICE HELIX CHIRP G2 (all models, in Open Water Mode); Side Imaging™ and Down Imaging™ units support this transducer as a 2D sonar transducer only

Resources

• Owners Manual (PDF)
• Installation Guide (PDF)
