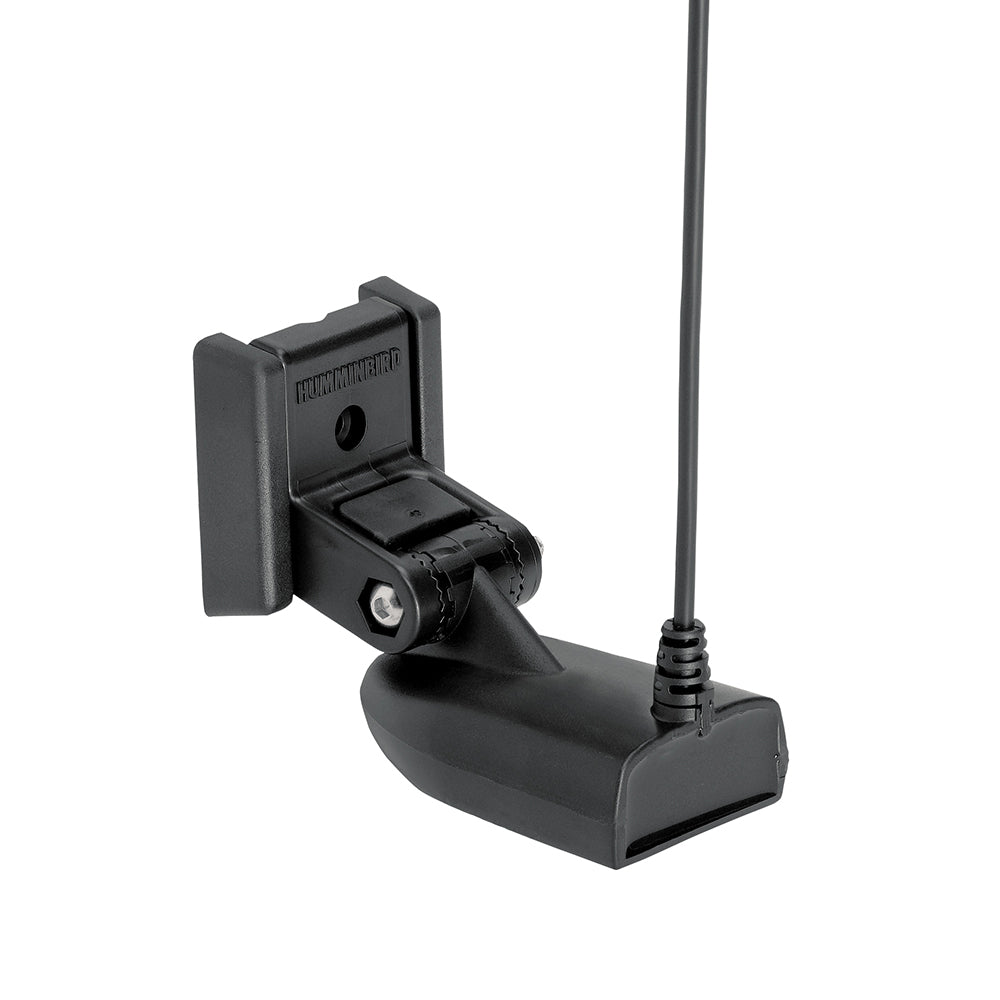

The Humminbird XNT-9-HW-MSI-150-T delivers MEGA Side Imaging, MEGA Down Imaging, and Dual Spectrum CHIRP 2D sonar from a single transom-mount transducer, with a built-in temperature sensor included. Designed specifically for compatible HELIX 7 CHIRP MEGA SI units, it covers a wide range of depths and scanning widths across multiple frequencies for detailed underwater views.

Specifications:

• Mount Type: Transom Mount
• Compatible Units: HELIX 7 CHIRP MSI GPS G3, HELIX 7 CHIRP MSI GPS G3N, HELIX 7 CHIRP MSI GPS G4, HELIX 7 CHIRP MSI GPS G4N
• Cable Length: 20 feet
• Built-In Temperature Sensor: Yes
• Dual Spectrum CHIRP 2D Sonar Frequency Range (Full): 150–220 kHz
• Dual Spectrum CHIRP 2D Sonar Frequency Range (Narrow): 180–240 kHz
• Dual Spectrum CHIRP 2D Sonar Frequency Range (Wide): 140–200 kHz
• Dual Spectrum CHIRP Maximum Depth: 1,200 ft (365 m)
• Side Imaging Frequency – 455 kHz (440–500 kHz), Max Side-to-Side Range: 800 ft (146 m)
• Side Imaging Frequency – MEGA SI (1,075–1,150 kHz), Max Side-to-Side Range: 250 ft (76 m)
• Down Imaging Frequency – 455 kHz (440–500 kHz), Max Depth: 125 ft (38 m)
• Down Imaging Frequency – MEGA DI (1,075–1,150 kHz), Max Depth: 75 ft (23 m)

Resources

• Owner's Manual (PDF)
• Installation Guide (PDF)
