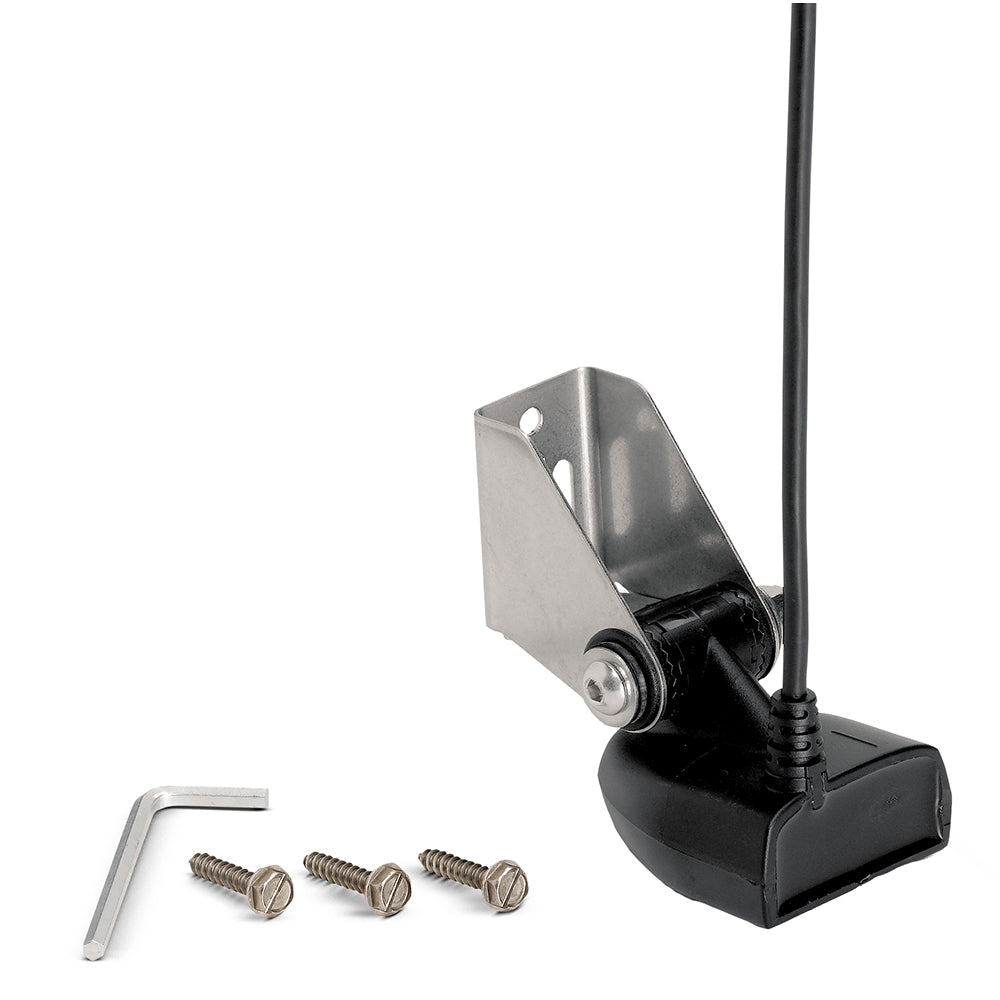

The Humminbird XNT-14-HW-T is a transom-mount Dual Spectrum CHIRP transducer built for SOLIX 10, 12, and 15 units. It delivers wide-cone, high-frequency 2D sonar with a built-in temperature sensor, an all-metal bracket, and a 20-foot cable — a straightforward upgrade for anglers who want deeper, clearer bottom readings.

Specifications:

• Transducer type: Transom Mount Dual Spectrum CHIRP
• Compatible units: SOLIX 10, 12, 15 — All Models
• Compatible as 2D sonar only on Side Imaging and Down Imaging units; does not support Side Imaging or Down Imaging functions
• Dual Spectrum CHIRP frequency range — Full: 150–220 kHz, Narrow: 180–240 kHz, Wide: 140–200 kHz
• Maximum depth: 1,200 ft (365 m)
• Built-in temperature sensor
• All-metal mounting bracket included
• Cable length: 20 ft

Resources:

• Owner's Manual (PDF)
• Installation Guide (PDF)
