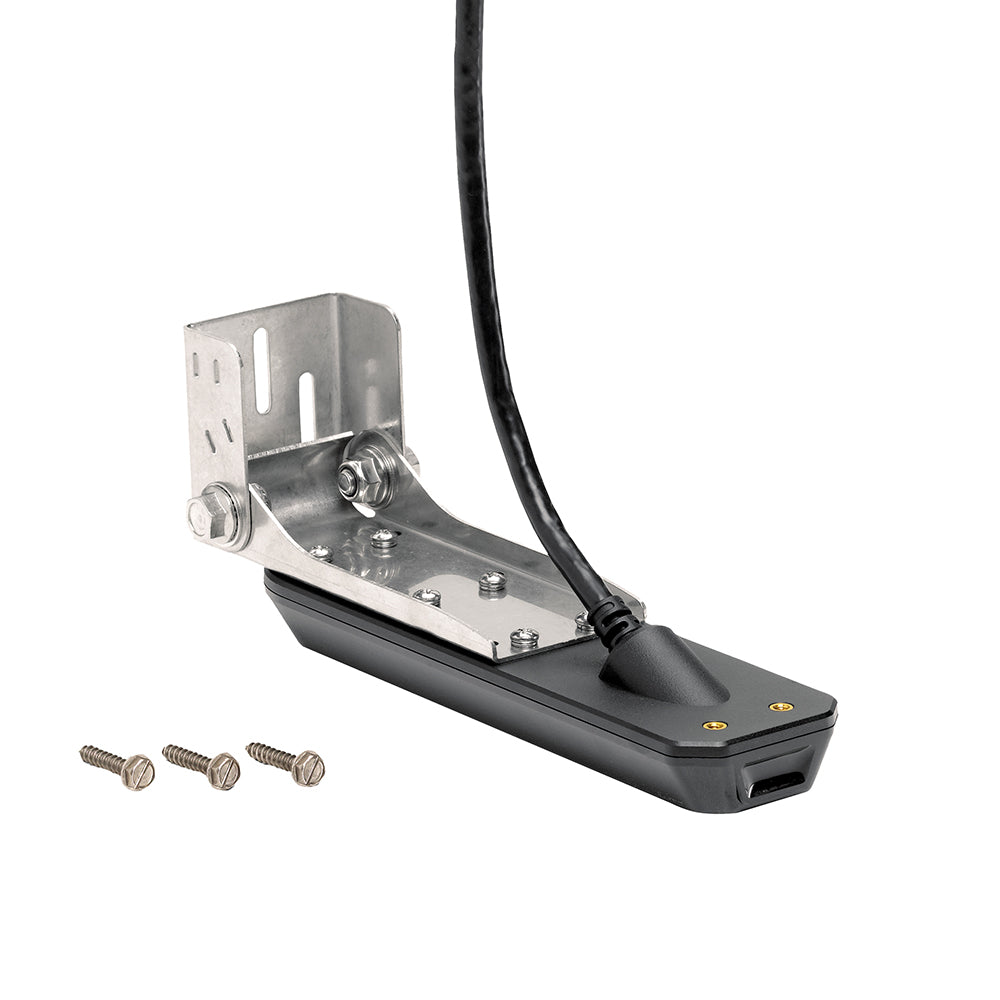

The Humminbird XM-14-HW-MSI-T brings MEGA Side Imaging+, MEGA Down Imaging+, and Dual Spectrum CHIRP 2D sonar together in a single transom-mount transducer built for SOLIX fishfinders. A rugged composite body, all-metal bracket, built-in temperature sensor, and 20-foot cable make this a complete, ready-to-install upgrade for serious offshore and inshore anglers.

Specifications:

• Compatible units: SOLIX 10 CHIRP MEGA SI+ GPS G2, SOLIX 12 CHIRP MEGA SI+ GPS G2, SOLIX 15 CHIRP MEGA SI+ GPS G2
• Mount type: Transom mount
• Cable length: 20 feet
• Built-in temperature sensor: Yes
• Construction: Rugged composite body, all-metal bracket
• Dual Spectrum CHIRP 2D sonar frequencies — Full: 150–220 kHz, Narrow: 180–240 kHz, Wide: 140–200 kHz
• Dual Spectrum CHIRP maximum depth: 1,200 ft (365 m)
• MEGA Side Imaging+ frequencies and max side-to-side range — 455 kHz (440–500 kHz): 800 ft (244 m); 800 kHz (790–850 kHz): 250 ft (76 m); MEGA SI+ (1,075–1,150 kHz): 400 ft (122 m)
• MEGA Down Imaging+ frequencies and max depth — 455 kHz (440–500 kHz): 400 ft (122 m); 800 kHz (790–850 kHz): 250 ft (76 m); MEGA DI+ (1,075–1,150 kHz): 200 ft (61 m)
