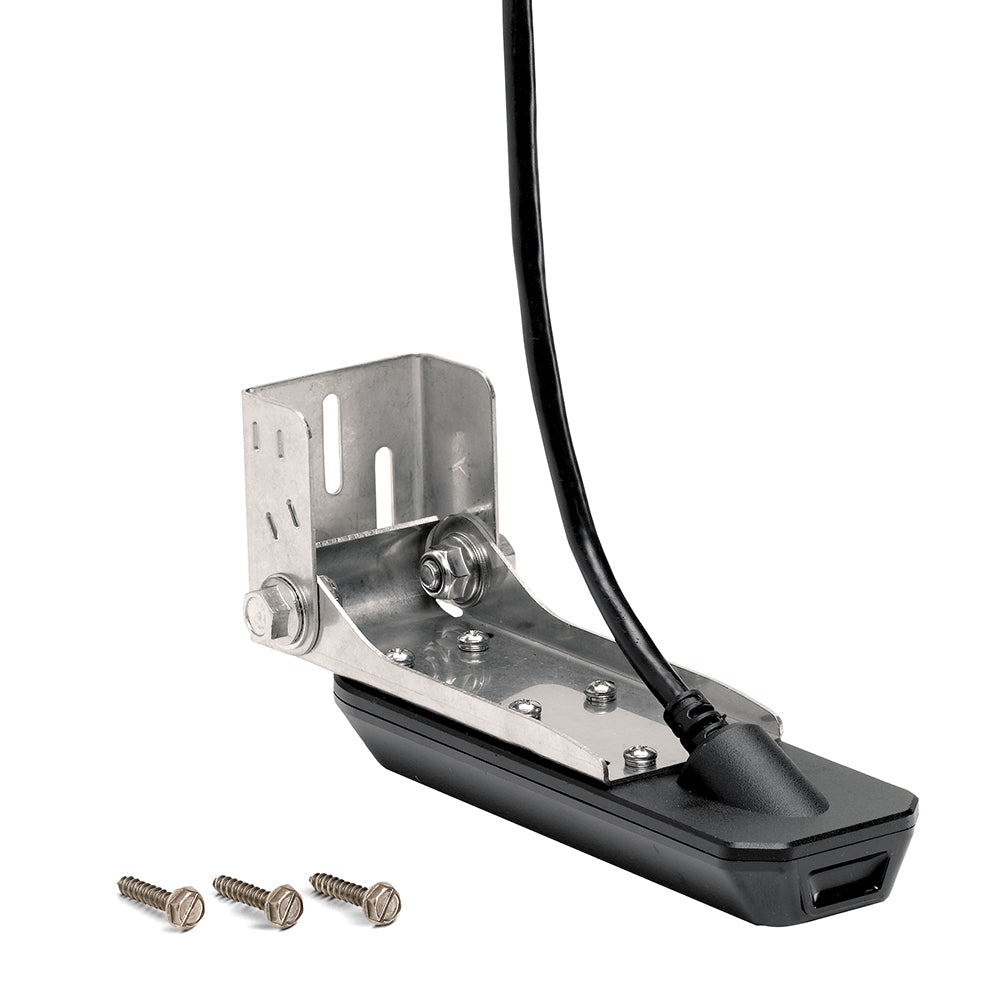

The Humminbird XM-14-HW-MDI-T brings MEGA Down Imaging+ capability to your SOLIX MEGA DI setup with Dual Spectrum CHIRP 2D sonar, a built-in temperature sensor, and a rugged composite housing. The all-metal bracket and 20-foot cable make for a straightforward transom installation on compatible SOLIX G2 units.

Specifications:

• Compatible units: SOLIX 10 CHIRP MEGA DI+ GPS G2, SOLIX 12 CHIRP MEGA DI+ GPS G2, SOLIX 15 CHIRP MEGA DI+ GPS G2
• Dual Spectrum CHIRP frequency ranges — Full: 150–220 kHz, Narrow: 180–240 kHz, Wide: 140–200 kHz
• Dual Spectrum CHIRP maximum depth: 1,200 ft (365 m)
• MEGA Down Imaging frequencies and maximum depths — 455 kHz (440–500 kHz): 400 ft (122 m); 800 kHz (790–850 kHz): 125 ft (38 m); MEGA DI+ (1,075–1,150 kHz): 200 ft (61 m)
• Built-in temperature sensor
• Rugged composite construction with all-metal bracket
• 20-foot cable included
• Transom mount

Resources:

• Owner's Manual (PDF)
• Installation Guide (PDF)
