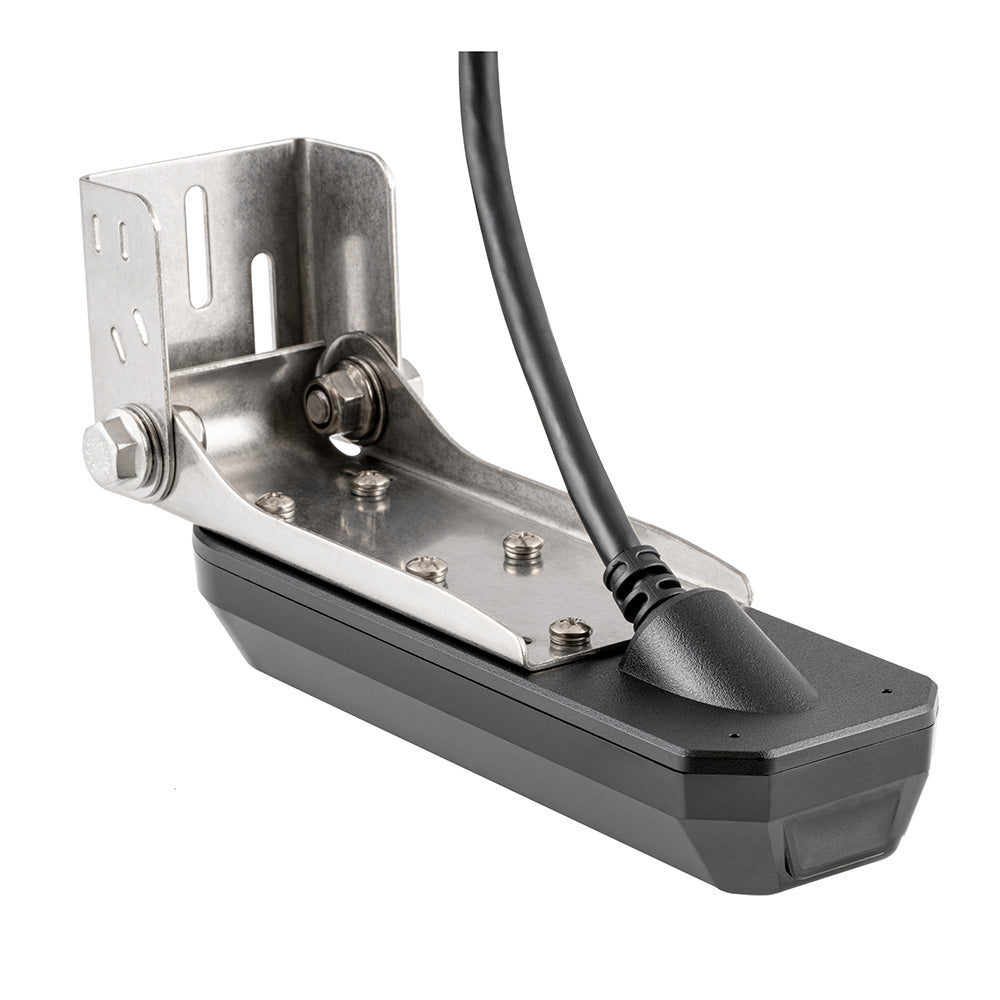

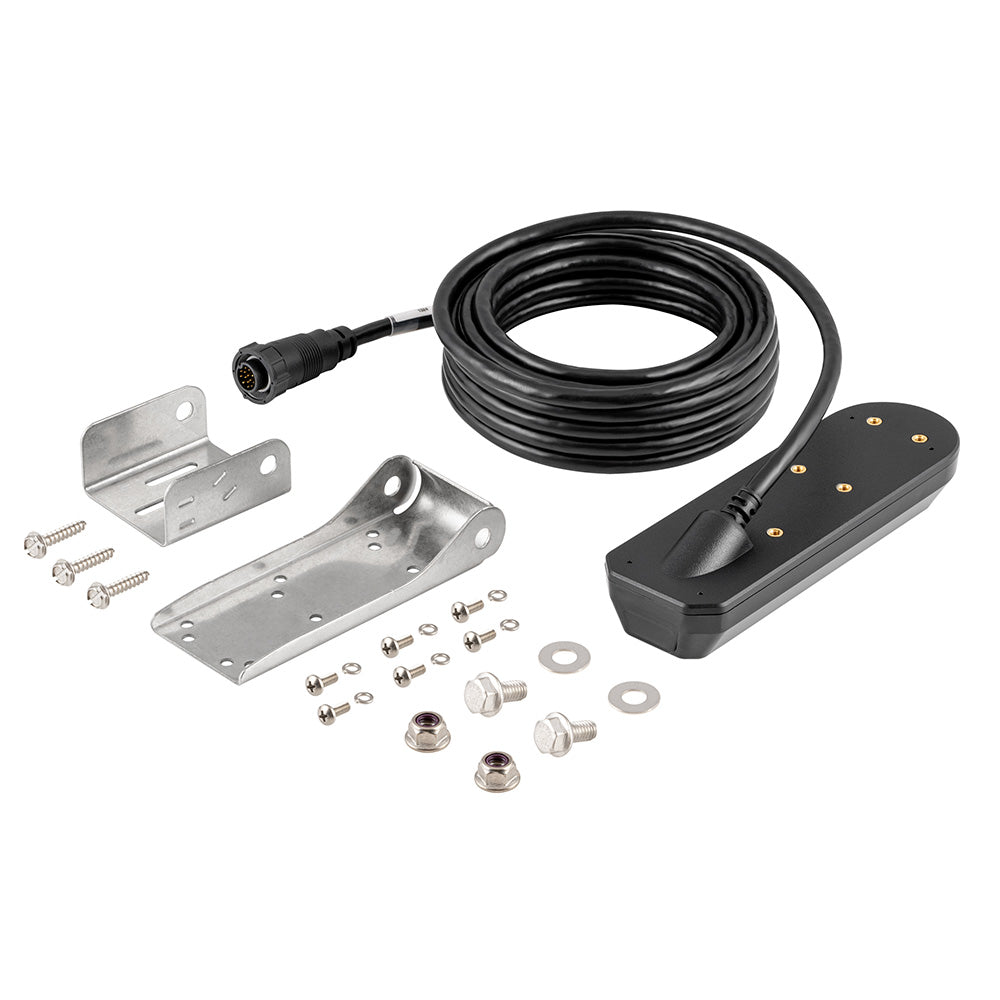

The Humminbird XM-14-HW-CMSI-T delivers MEGA Side Imaging+, MEGA Down Imaging+, and Dual Spectrum 2D CHIRP sonar in a compact transom-mount package. Designed for APEX, SOLIX G3, and XPLORE fish finder units, it includes a built-in temperature sensor and connects via a screw-on connector on a 20-foot cable.

Specifications:

• Compatible Units: APEX, SOLIX G3, and XPLORE fish finder models
• Mount Type: Transom
• Cable Length: 20 feet
• Connector Type: Screw-On
• Sonar Types: MEGA Side Imaging+, MEGA Down Imaging+, Dual Spectrum 2D CHIRP, Down Imaging
• MEGA Side Imaging Frequencies & Max Side-to-Side Range: 455 kHz (405–505 kHz) – 800 ft (244 m); MEGA 1.1 MHz (1.100–1.200 MHz) – 400 ft (122 m)
• MEGA Down Imaging Frequencies & Max Depth: 455 kHz (420–520 kHz) – 400 ft (122 m); MEGA 1.125–1.225 MHz – 400 ft (122 m)
• Dual Spectrum CHIRP Frequency Ranges: Full 150–220 kHz; Narrow 180–240 kHz; Wide 140–200 kHz
• Built-In Temperature Sensor: Yes
• Warranty: 1-Year Limited
