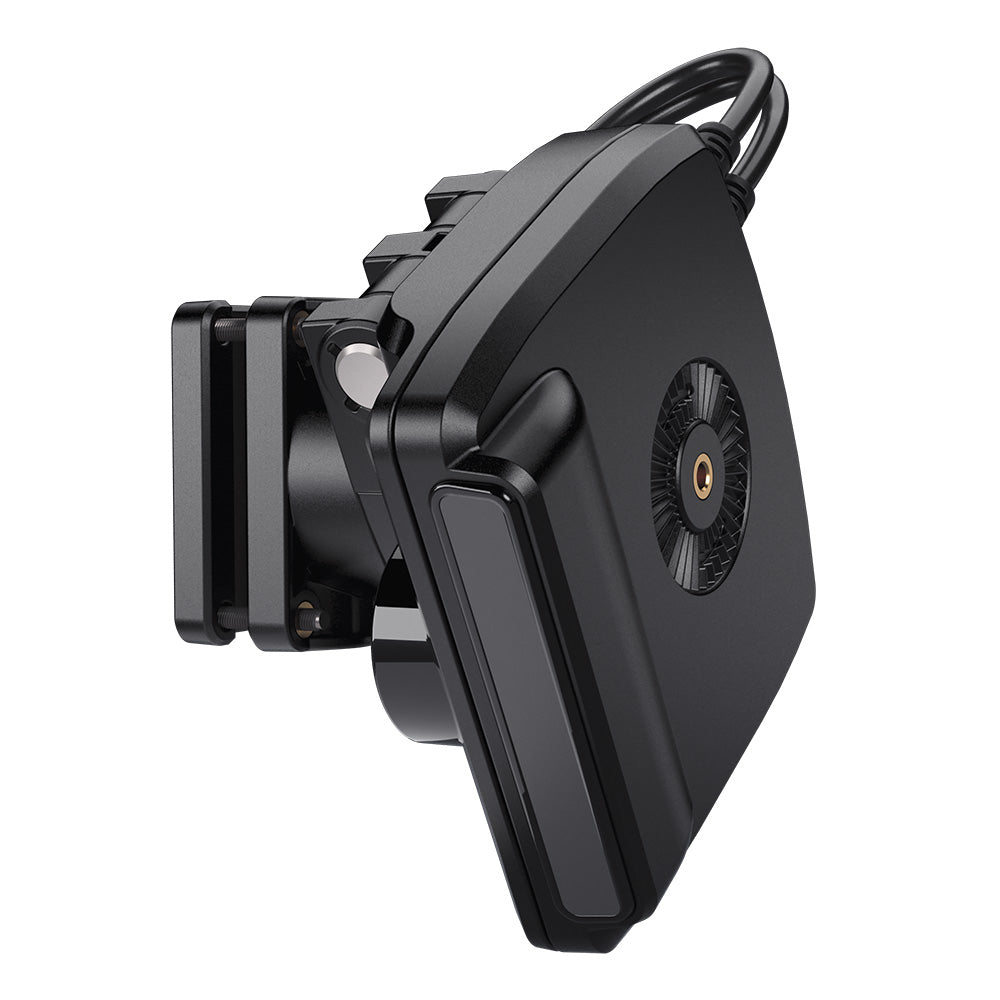

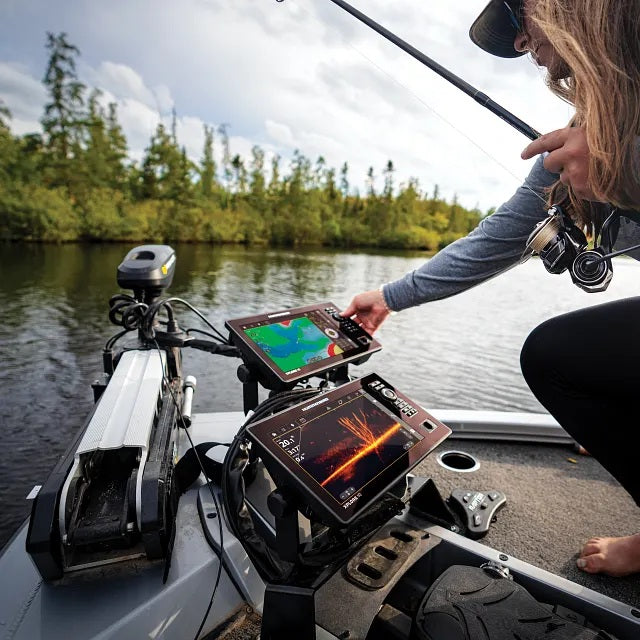

The Humminbird MEGA Live 2 is a forward-facing live sonar transducer that mounts directly to a trolling motor shaft, delivering real-time views of fish and structure with the full detail and clarity of MEGA Imaging. Three selectable viewing modes — Forward, Down, and Landscape — give you complete sonar coverage around the boat with no gaps, while an optimized cone angle balances wide coverage with the precision needed to target individual fish. Dynamic bait and lure tracking, customizable color palettes, and waypoint marking on the sonar screen round out a versatile live sonar solution. No external sonar box is required; the unit connects to compatible Humminbird control heads via the included Ethernet cable and can share the control head with optional sources like MEGA 360 Imaging or Built-in MEGA Imaging.

Specifications:

• Viewing modes: Forward, Down, and Landscape
• Imaging technology: MEGA Imaging with dynamic bait and lure tracking

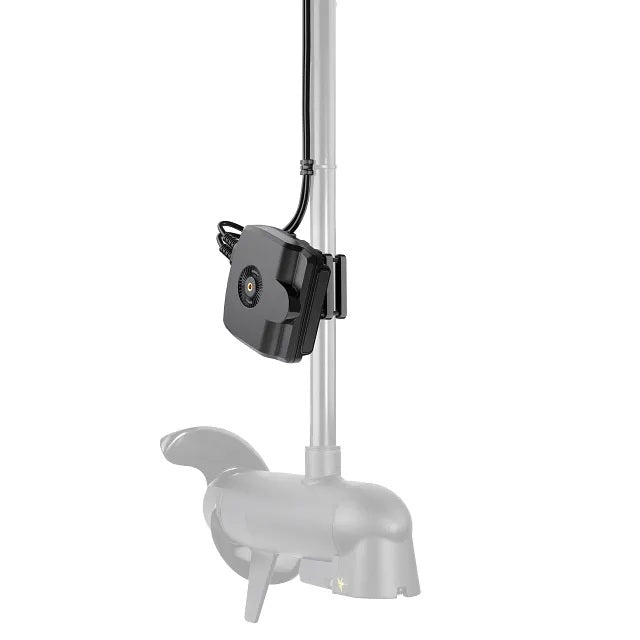

• Mounting location: Either side of the trolling motor shaft
• Compatible control heads: All Humminbird APEX, SOLIX G3, and XPLORE models (must be MEGA Side Imaging or MEGA Down Imaging model)
• Recommended trolling motors: Minn Kota Ultrex, Minn Kota Fortrex, or any QUEST trolling motor with Built-in MEGA Imaging
• Connection: Ethernet cable (no external sonar box required)
• Optional GPS waypoint marking: Requires AS GPS HS GPS receiver with heading sensor (sold separately)
• Power cable length: 10 ft
• Ethernet cable length: 20 ft
• Trolling motor and MEGA 360 Imaging accessories not included
• Warranty: 2-Year Limited

In the Box:

• MEGA Live Imaging transducer with adjustable mounting bracket
• 10 ft power cable
• 20 ft Ethernet cable
• Mounting hardware

Resources:

• Product Brochure (PDF)
