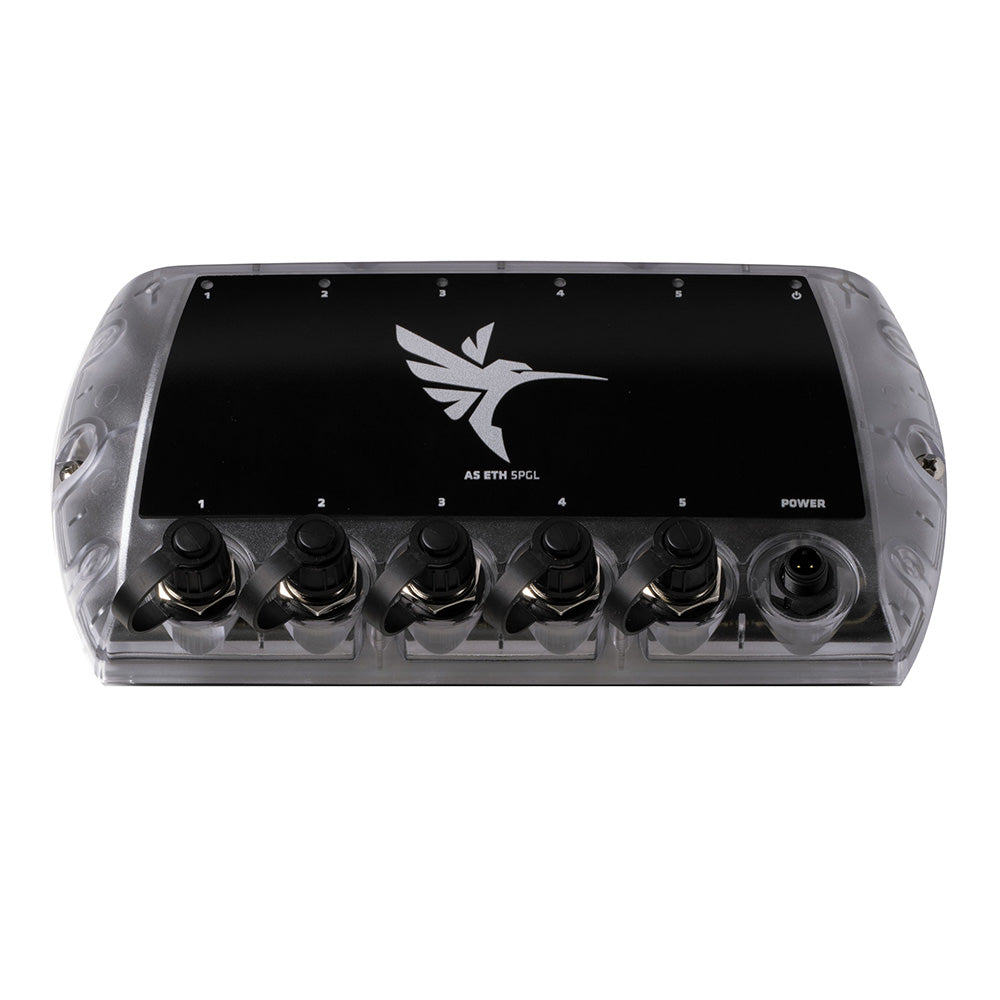

The Humminbird AS-ETH-5PGL creates a shared data network by linking up to five compatible Humminbird fish finders and Ethernet-capable devices through a single hub. Status lights on each port provide at-a-glance feedback on power, connection, and active data transfer, while the ability to daisy-chain multiple switches scales the network up to 20 devices total.

Specifications:

• Connects up to five compatible Humminbird fish finders and Ethernet devices for cross-network data sharing
• Expandable to 20 devices by linking additional switches together (additional switches sold separately)
• Compatible with all XPLORE, APEX, SOLIX, HELIX G4N, and HELIX G3N fish finder models
• Connection light status: Solid = Connected; Flashing = Data Transfer in Progress; No Light = No Connection
• Amber connection light indicates: XPLORE, HELIX G4N & G3N, AS ETH NMEA2K, Minn Kota Trolling Motor, Radar
• Green connection light indicates: APEX, SOLIX, MEGA Live, TargetLock, AS ETH 5PXG, AS ETH 5PGL
• Amber power light indicates unit is connected to power
• Additional Ethernet cables required to connect devices; AS EC QDE connectors required for compatible HELIX models
• Includes: Ethernet switch, power cable, and mounting hardware
• 1-Year Limited Warranty
