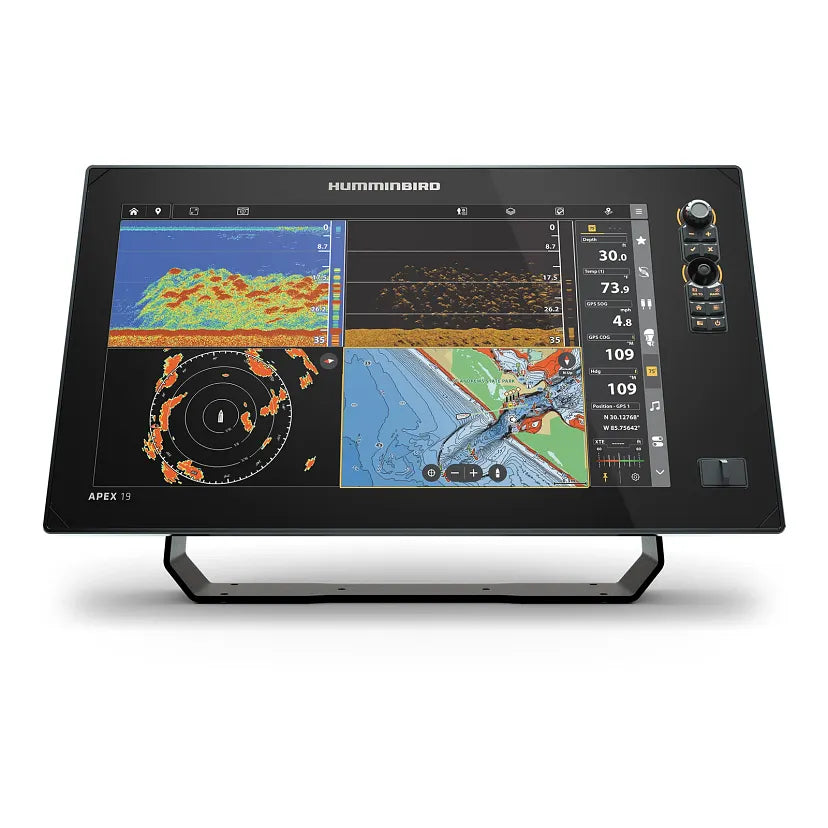

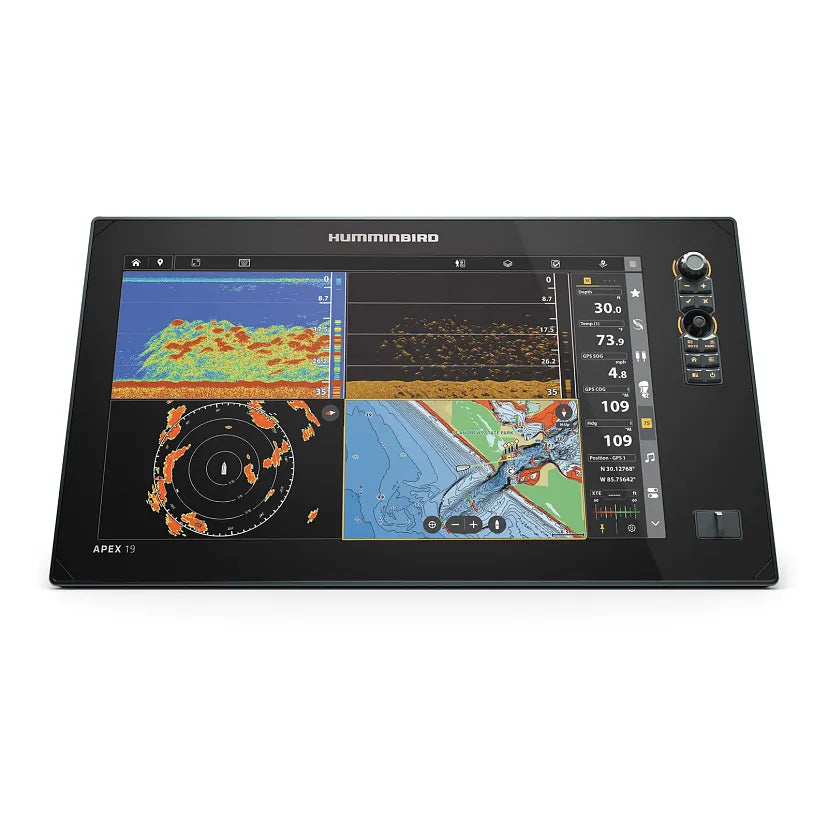

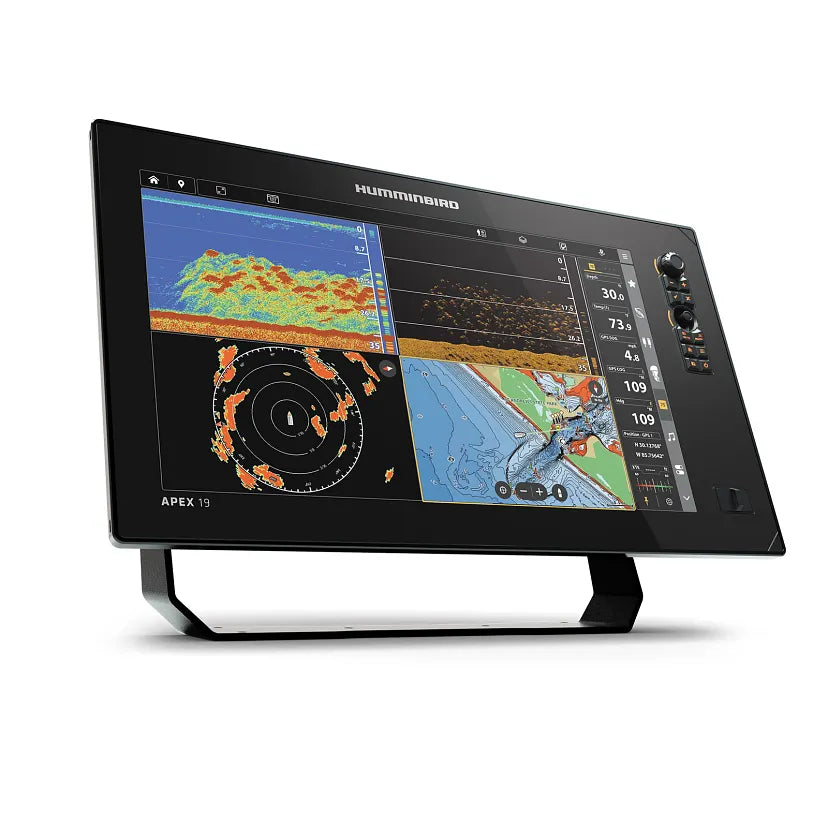

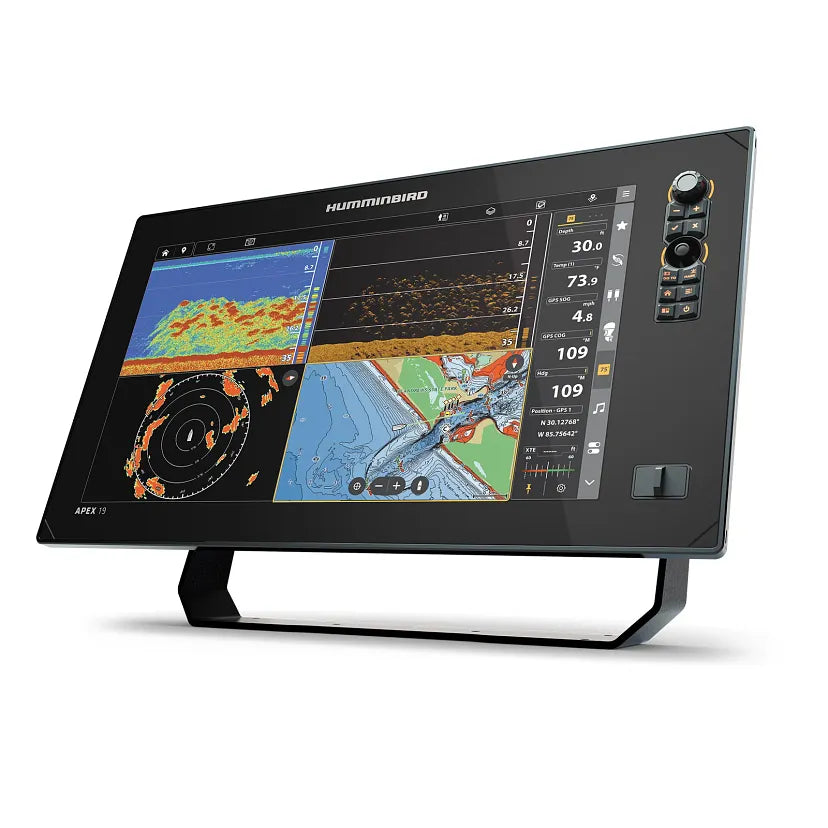

The Humminbird APEX 19 VX MSI+ Control Head Only pairs an 18.5-inch Full-HD touchscreen with MEGA Imaging+ sonar and Dual Spectrum CHIRP technology, giving anglers an exceptionally detailed view of structure, bottom composition, and fish. Designed for those who want to select their own transducer — whether a stainless-steel thru-hull, a MEGA 360 Imaging accessory, or an existing Humminbird Ethernet network — this CHO unit delivers network flexibility alongside industry-leading imaging performance.

Specifications:

• Model Type: Control Head Only (CHO) — transducer not included
• Display: 18.5-inch Full-HD touchscreen, 1920H x 1080V resolution
• Interface: Cross Touch — operate via touchscreen or physical keypad
• Processor: Dual Core for fast, responsive performance
• Sonar Technologies: MEGA Side Imaging+, MEGA Down Imaging+, Dual Spectrum CHIRP
• MEGA Imaging+ Range: up to 250 ft below and to either side of the boat
• Dual Spectrum CHIRP: superior 2D target separation and fish detail
• Dual Channel CHIRP Sonar: two sonar ports — one for Humminbird sonar accessories, one dedicated port for 2D CHIRP transducers up to 2kW
• Internal GPS included
• Humminbird Basemap: covers 10,000+ lakes plus continental U.S. coastal areas; includes buoys, day markers, hazards, marinas, contours, and depth markers
• Premium Chart Compatibility: supports Humminbird LakeMaster, CoastMaster, and Navionics charts
• AutoChart Live: real-time depth contour, bottom hardness, and vegetation mapping; 8 hours of built-in recording; compatible with AutoChart Zero Line SD cards for expanded capacity
• Customizable Interface: intuitive UI with sidebar menus for personalized view combinations

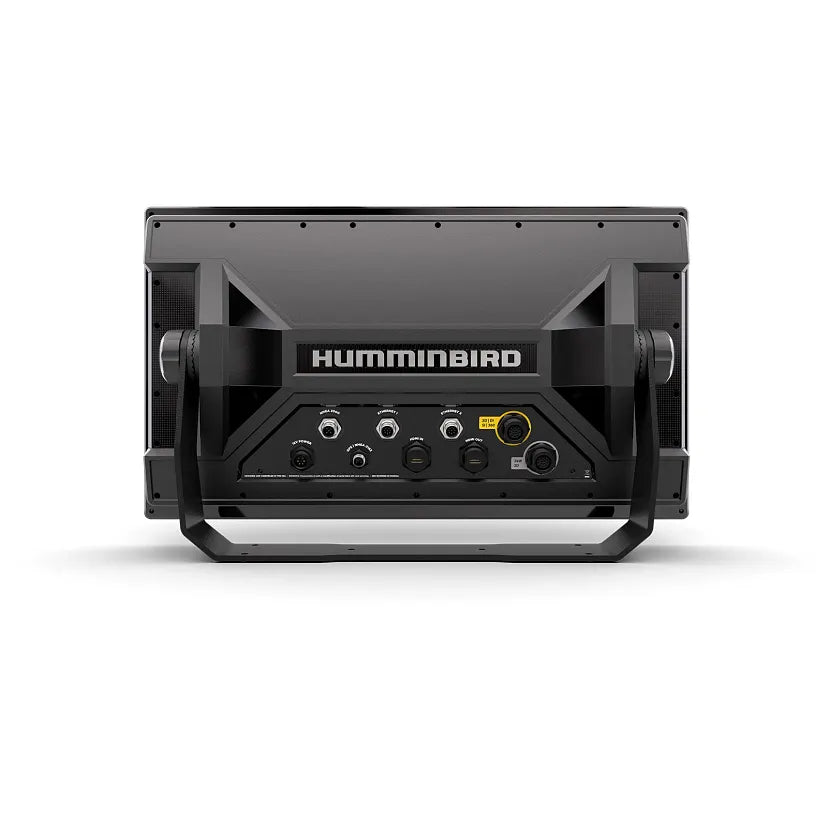

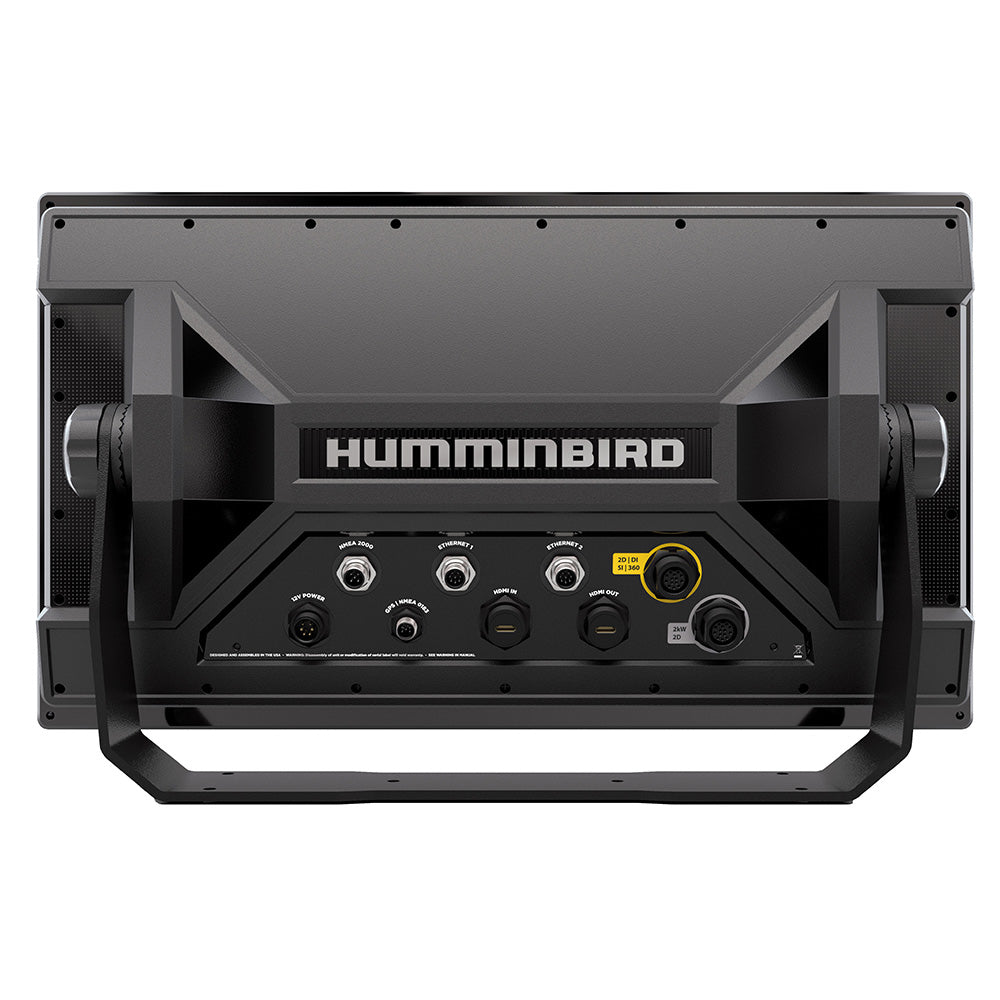

• Connectivity: NMEA 2000, HDMI In/Out, WiFi, Bluetooth, Dual Ethernet ports
• One-Boat Network Compatible: integrates with Minn Kota trolling motors and Cannon downrigger wireless control
• CHO model supports connection to Built-in MEGA Imaging on Minn Kota motors and MEGA 360 Imaging accessories
