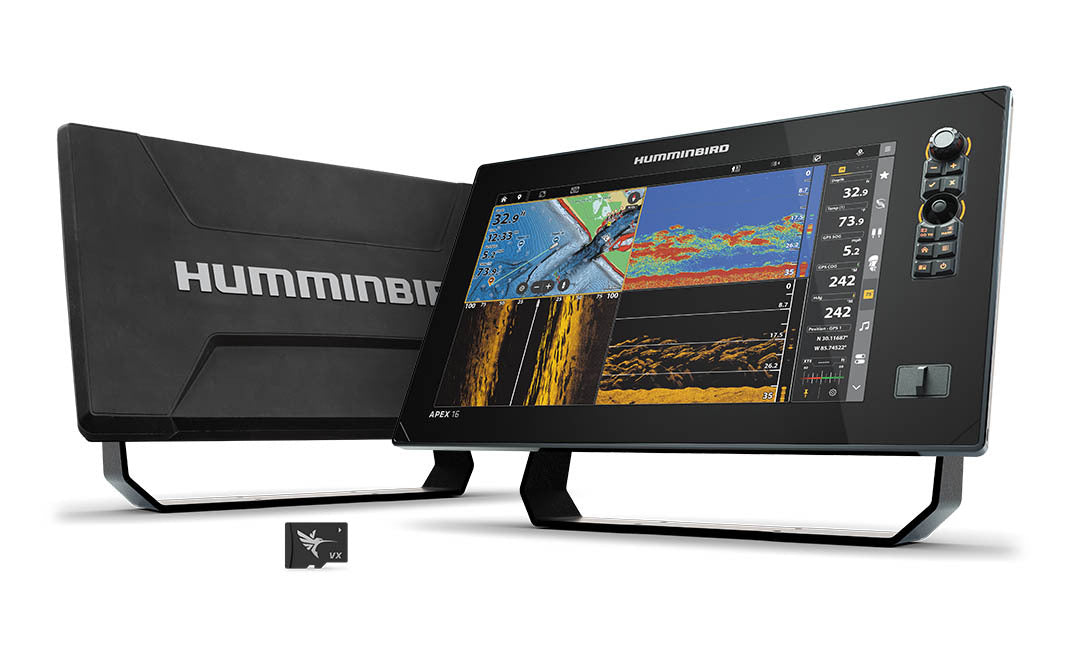

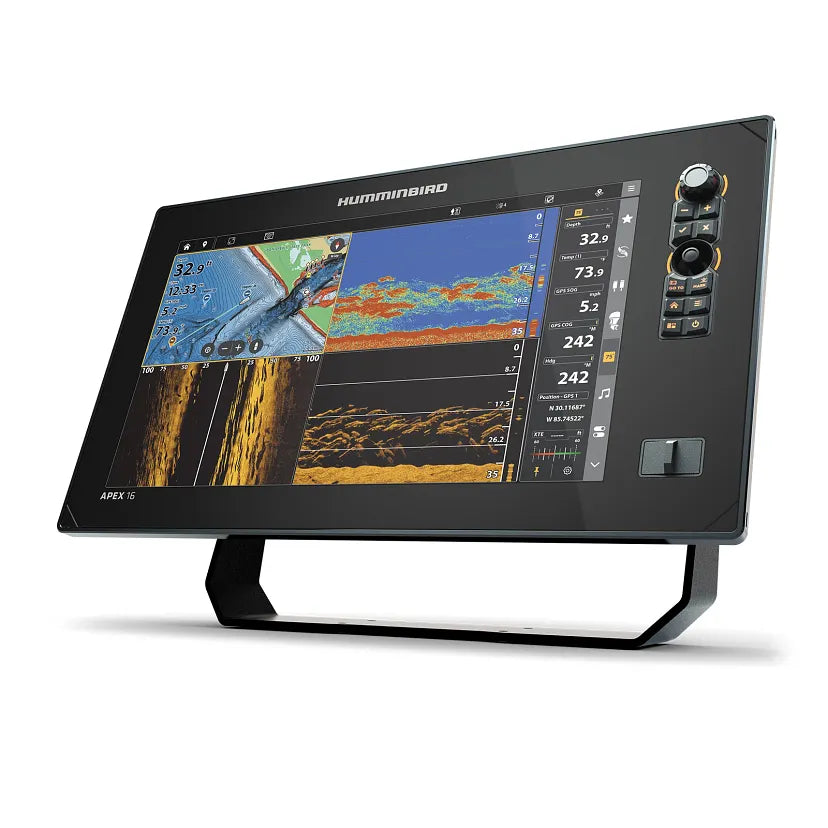

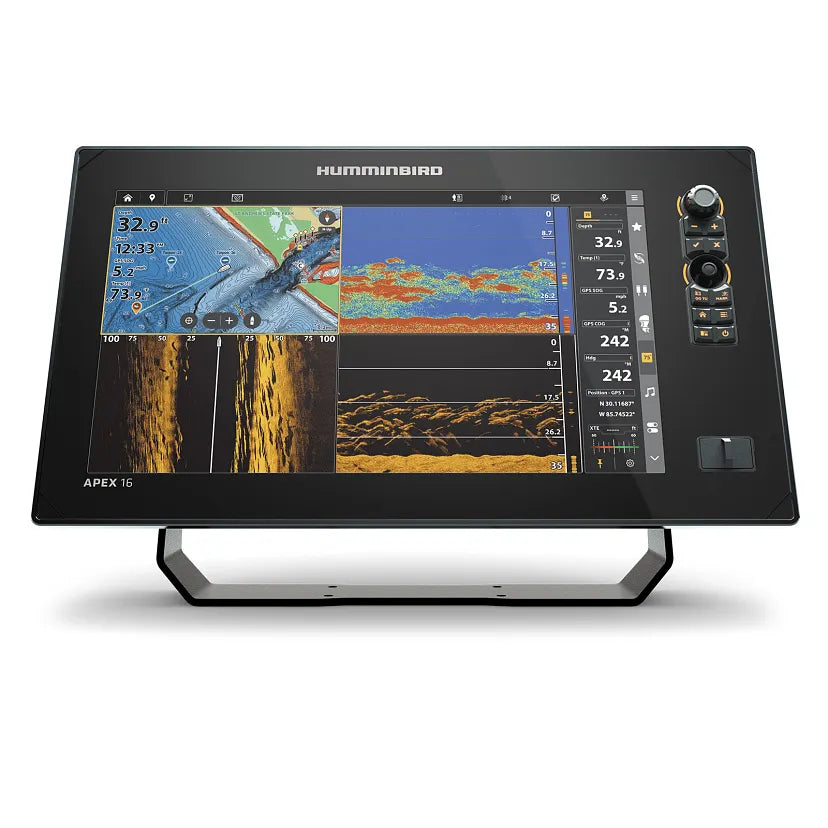

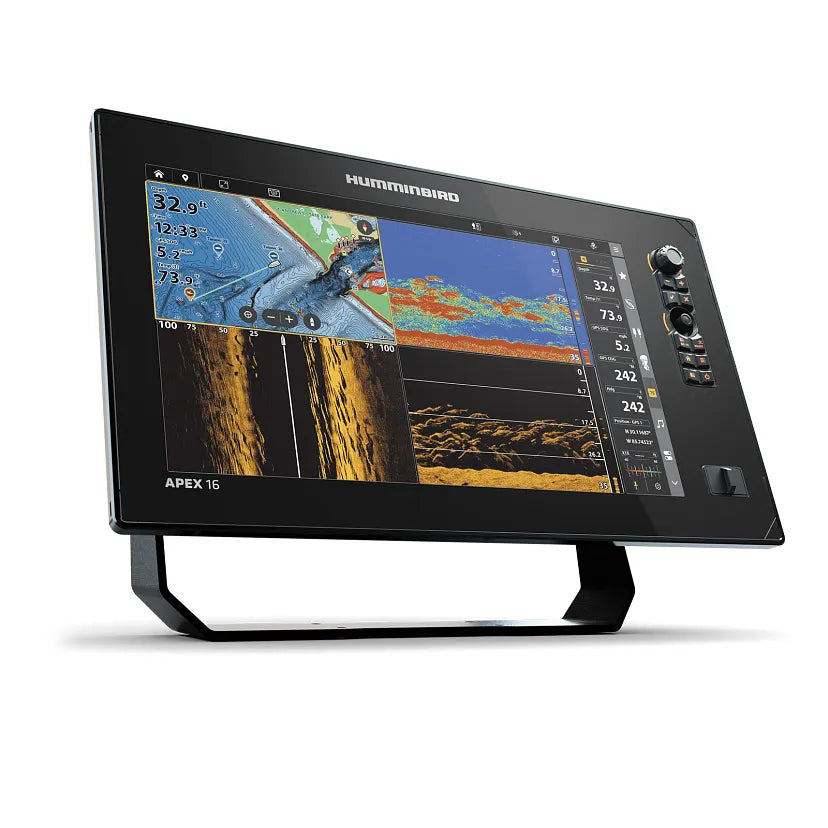

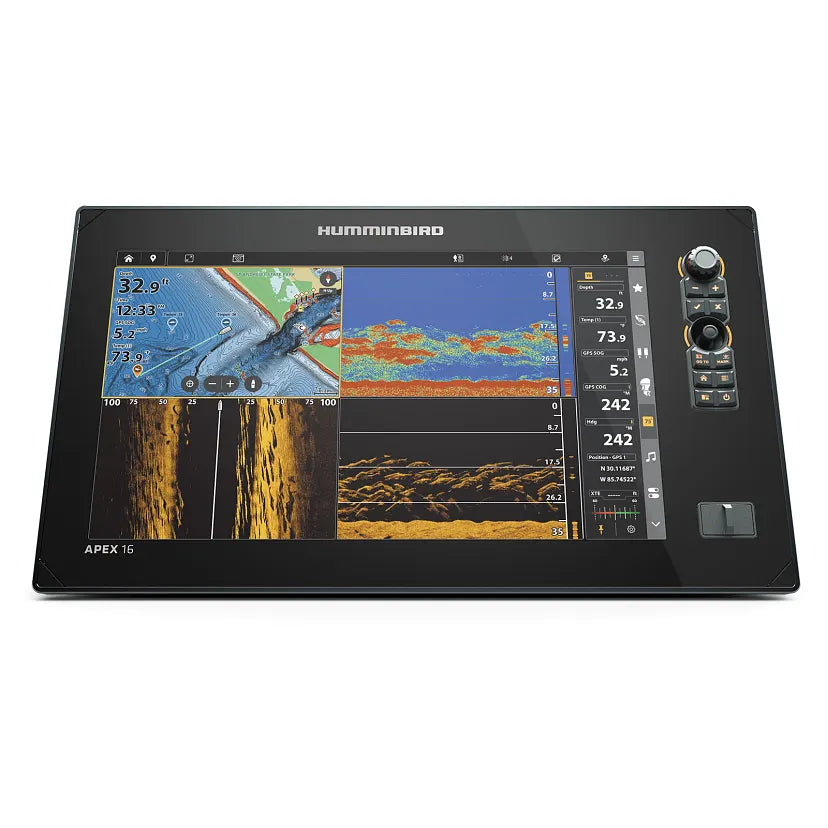

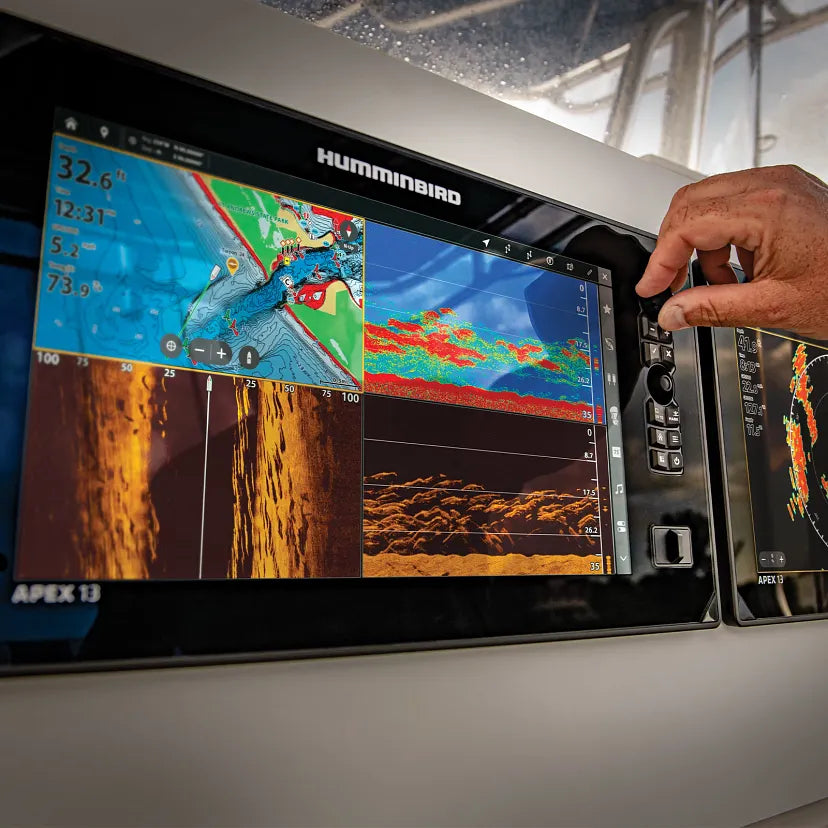

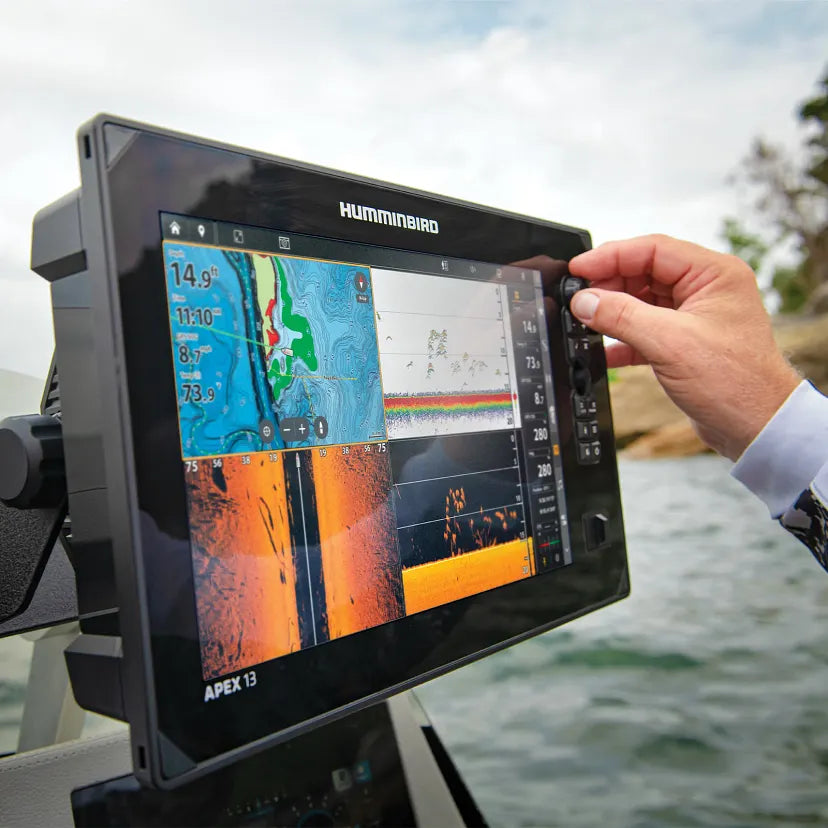

The Humminbird APEX 16 VX MSI+ combines a 15.6-inch Full-HD touchscreen with industry-leading MEGA Imaging+ sonar and Dual Spectrum CHIRP technology, delivering some of the sharpest underwater detail available on a multifunction display. A dual-core processor keeps the interface fast and responsive, while dual Ethernet ports, HDMI In/Out, NMEA 2000, Wi-Fi, and Bluetooth enable a fully integrated onboard network. One-Boat Network compatibility ties together Humminbird GPS charts, Minn Kota boat control, and Cannon downrigger management in a single cohesive system.

Features:

• Full-HD Cross Touch Display: 15.6-inch screen at 1920 x 1080 resolution; operated via touchscreen or keypad
• Dual-Core Processor: Delivers fast, responsive performance across all functions and tasks
• MEGA Side Imaging+: Views up to 250 feet to either side of the boat
• MEGA Down Imaging+: Views up to 250 feet beneath the boat
• Dual Spectrum CHIRP Sonar: Superior 2D target separation and fish clarity
• Dual Channel CHIRP Sonar: Two sonar ports — one for Humminbird sonar accessories, one dedicated port for 2D CHIRP transducers up to 2 kW
• Internal GPS with Humminbird Basemap: Covers 10,000+ lakes plus continental U.S. coastal waters; includes buoys, day markers, hazards, marinas, depth contours, and more
• Premium Chart Compatible: Supports LakeMaster, CoastMaster, and compatible Navionics charts
• AutoChart Live: Real-time mapping of depth contours, bottom hardness, and vegetation; 8 hours of built-in recording time; expandable with AutoChart Zero Line SD cards
• One-Boat Network Compatible: Integrates with Minn Kota and Cannon products for unified boat control and fish-catching features
• Dual Ethernet Ports: Network multiple control heads and Ethernet accessories (e.g., Minn Kota i-Pilot Link, Humminbird CHIRP Radar) without an external hub
• HDMI In/Out: Connect accessory cameras or video sources via HDMI In; output to accessory displays via HDMI Out
• Bluetooth: Wireless connectivity for supported accessories and devices
• NMEA 2000 Compatible: Integrates with onboard NMEA 2000 networks
• Wi-Fi: Wireless networking capability built in
• Customizable Interface: Intuitive sidebar menu with adjustable settings and view combinations
• Includes: Transom mount transducer

Specifications:

• Display Size: 15.6 inches
• Resolution: 1920H x 1080V (Full HD)
• Interface: Cross Touch (touchscreen + keypad)
• Sonar: MEGA Side Imaging+, MEGA Down Imaging+, Dual Spectrum CHIRP
• Max Transducer Power: 2 kW (dedicated 2D CHIRP port)
• Sonar Ports: 2 (dual channel)
• Imaging Range: Up to 250 feet side and down
• GPS: Internal
• Basemap Coverage: 10,000+ lakes; continental U.S. coastal coverage
• AutoChart Live Recording: 8 hours built-in; expandable via AutoChart Zero Line SD card

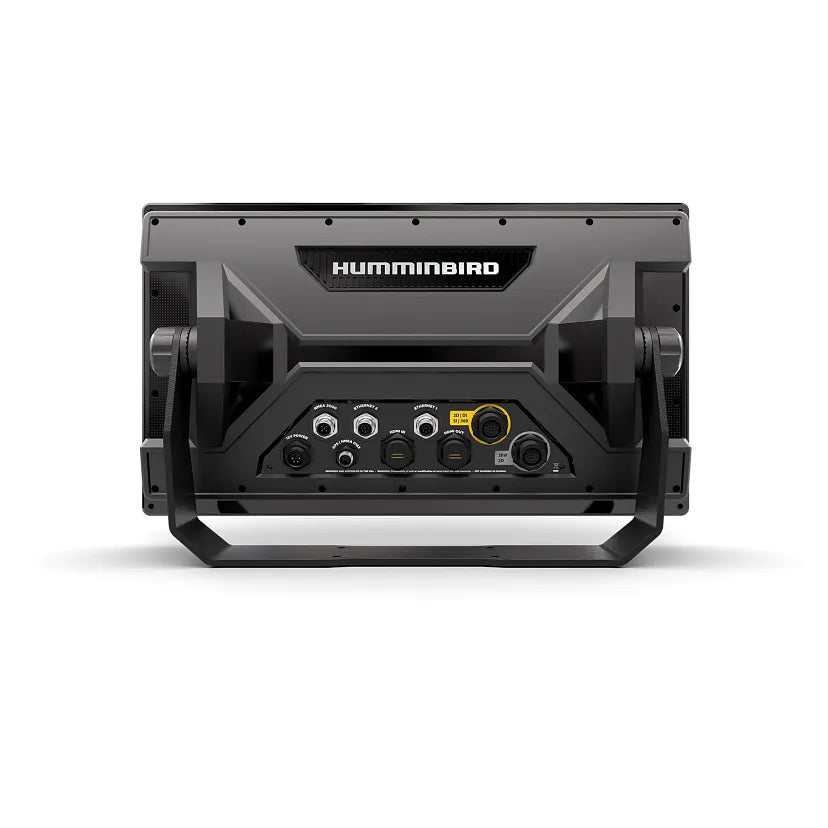

• Connectivity: Dual Ethernet, HDMI In, HDMI Out, NMEA 2000, Wi-Fi, Bluetooth
• Includes: Transom mount transducer
