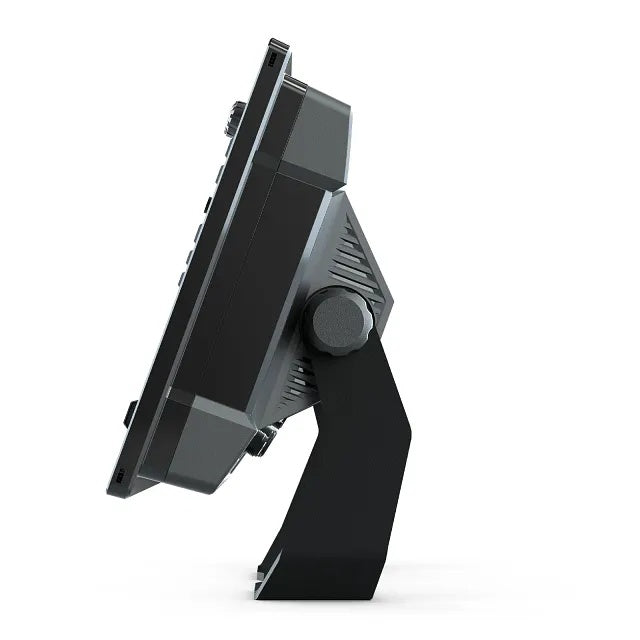

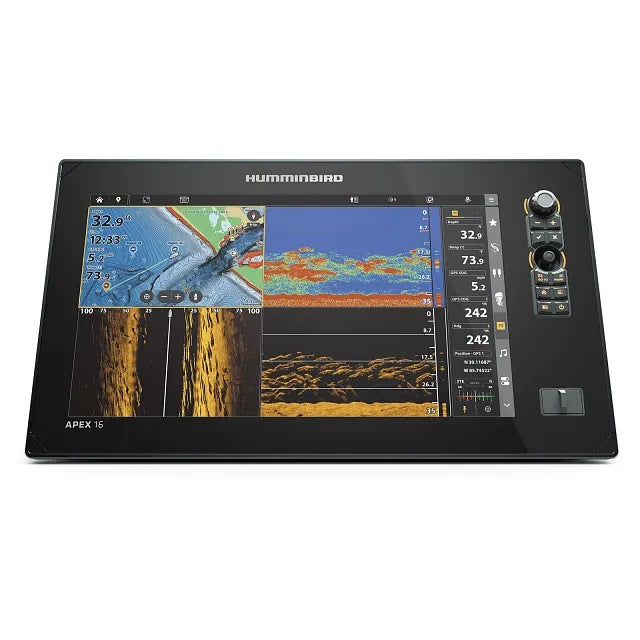

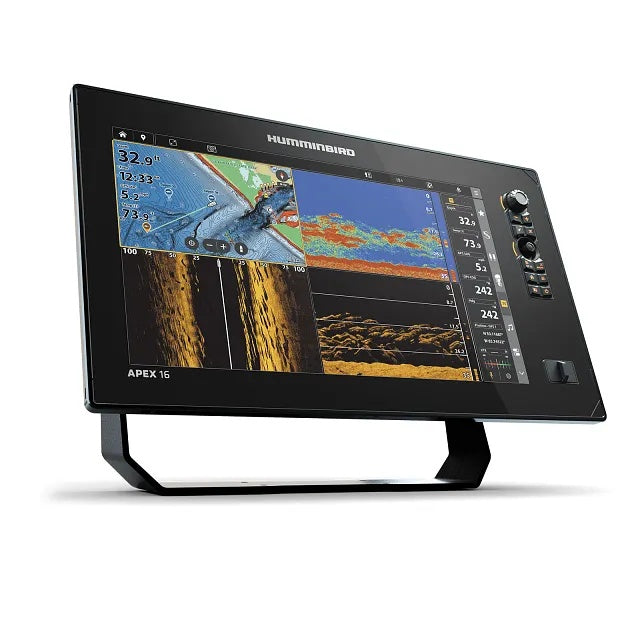

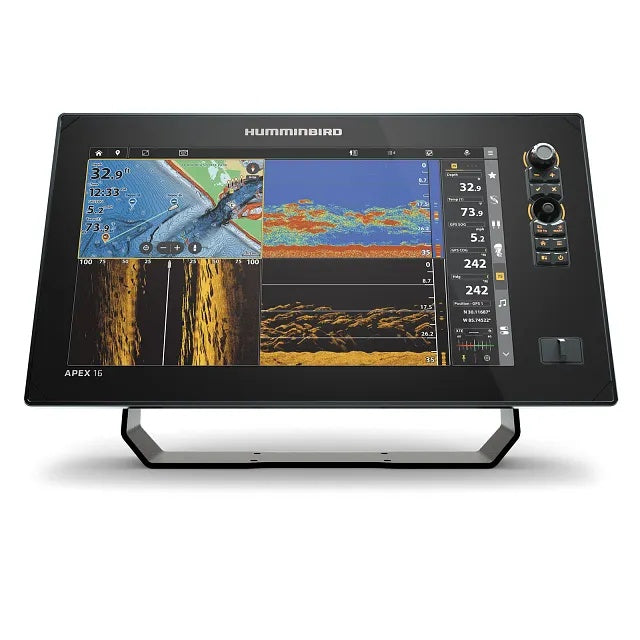

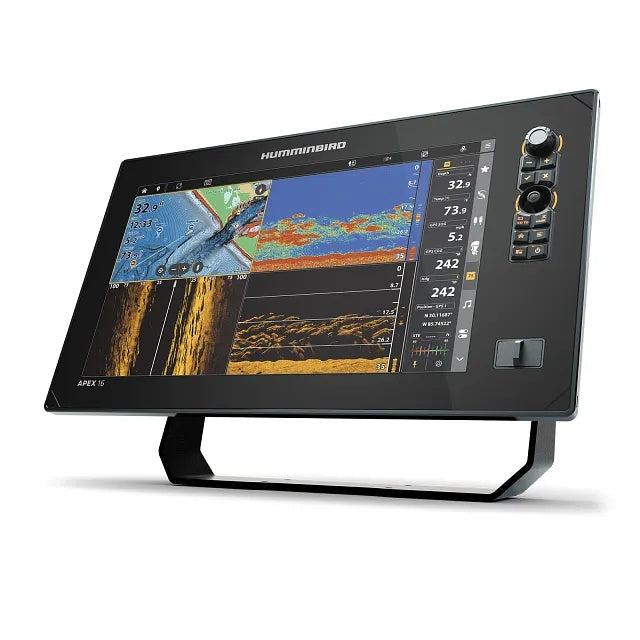

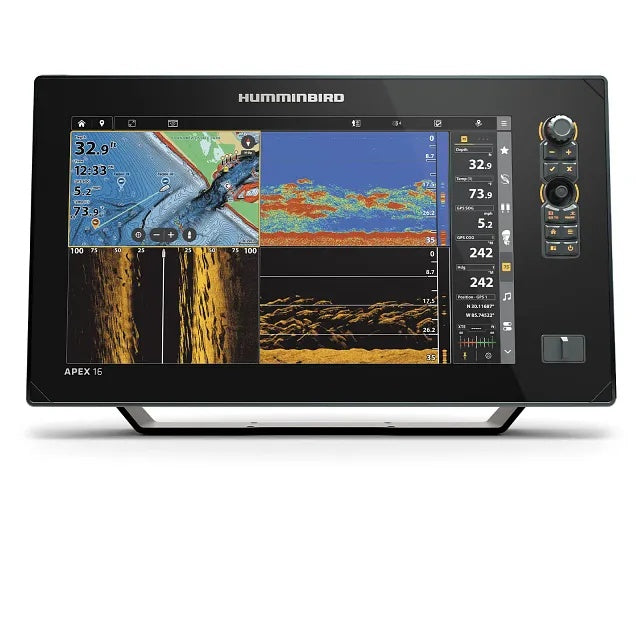

The Humminbird APEX 16 VX MSI+ CHO (Control Head Only) brings together a 15.6-inch Full-HD touchscreen, MEGA Imaging+, and Dual Spectrum CHIRP sonar into one of the most capable multifunction displays on the water. Designed for anglers who want to choose their own transducer — whether a stainless steel thru-hull, MEGA 360 Imaging, or an existing Humminbird Ethernet network — this unit delivers uncompromised sonar clarity, advanced charting, and deep integration with Minn Kota and Cannon through the One-Boat Network.

Specifications:

• Model: APEX 16 VX MSI+ CHO (Control Head Only — transducer not included)
• Display: 15.6-inch Full-HD touchscreen, 1920H x 1080V resolution
• Interface: Cross Touch — operate via touchscreen or keypad
• Processor: Dual Core for fast, responsive performance
• Sonar: MEGA Side Imaging+, MEGA Down Imaging+, Dual Spectrum CHIRP
• MEGA Imaging+ range: up to 250 feet below and to either side of the boat
• Dual Channel CHIRP Sonar: two sonar ports, including a dedicated port for 2D CHIRP transducers up to 2kW
• Internal GPS with Humminbird Basemap included
• Basemap coverage: 10,000+ lakes plus coastal coverage for the continental U.S.; includes buoys, day markers, hazards, marinas, contours, and depth markers
• Premium chart compatible: LakeMaster, CoastMaster, and Navionics charts supported
• AutoChart Live: real-time depth contour, bottom hardness, and vegetation mapping; 8 hours of built-in recording time; compatible with AutoChart Zero Line SD cards for expanded capacity
• One-Boat Network compatible: integrates with Minn Kota trolling motors and Cannon downriggers for wireless boat control and sonar sharing

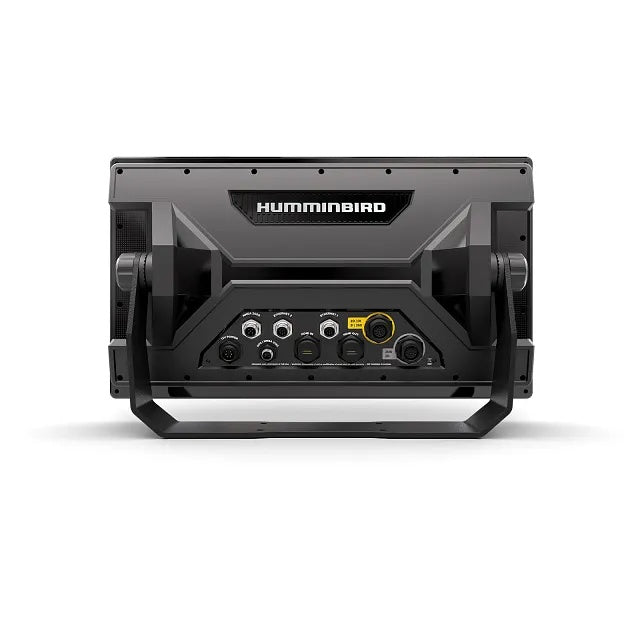

• Connectivity: NMEA 2000, HDMI In/Out, Wi-Fi, Bluetooth, Dual Ethernet ports
• Customizable sidebar menu and user interface for personalized view combinations
