The Hella Marine NaviLED Port and Starboard Pair delivers 2nm visibility in a compact, fully sealed LED package. Drawing less than 2W combined, these lamps replace traditional bulb-based navigation lights at a fraction of the power cost. Filament-free construction means no scheduled bulb changes, and IP 67 certification keeps moisture and spray out for the life of the lamp. MultiVolt electronics handle the voltage swings common on boats running everything from 12V to 24V systems.

Specifications:

• Lens/Housing: UV resistant, enhanced impact resistant acrylic lens with high impact shroud
• Minimum Visible Distance: 2 Nautical Miles (Yachts and Powerboats)
• Cable: Pre-wired with sheathed marine cable — single core (120mm) or twin core (2.5m) assemblies
• Operating Voltage: Multivolt™ 9–33V DC (earlier version 8–28V DC)
• Voltage Protection: Spike protected to +500V; reverse polarity protected to –700V
• Power Consumption: Less than 2W combined (port and starboard)
• Degree of Protection: IP 67 — Completely Sealed
• Weight: 60g (120mm cable version)
• Approvals: IMO Col Reg 72, RINA, USCG, ABYC A-16, Maritime NZ

Resources:

• Quick Guide (PDF)

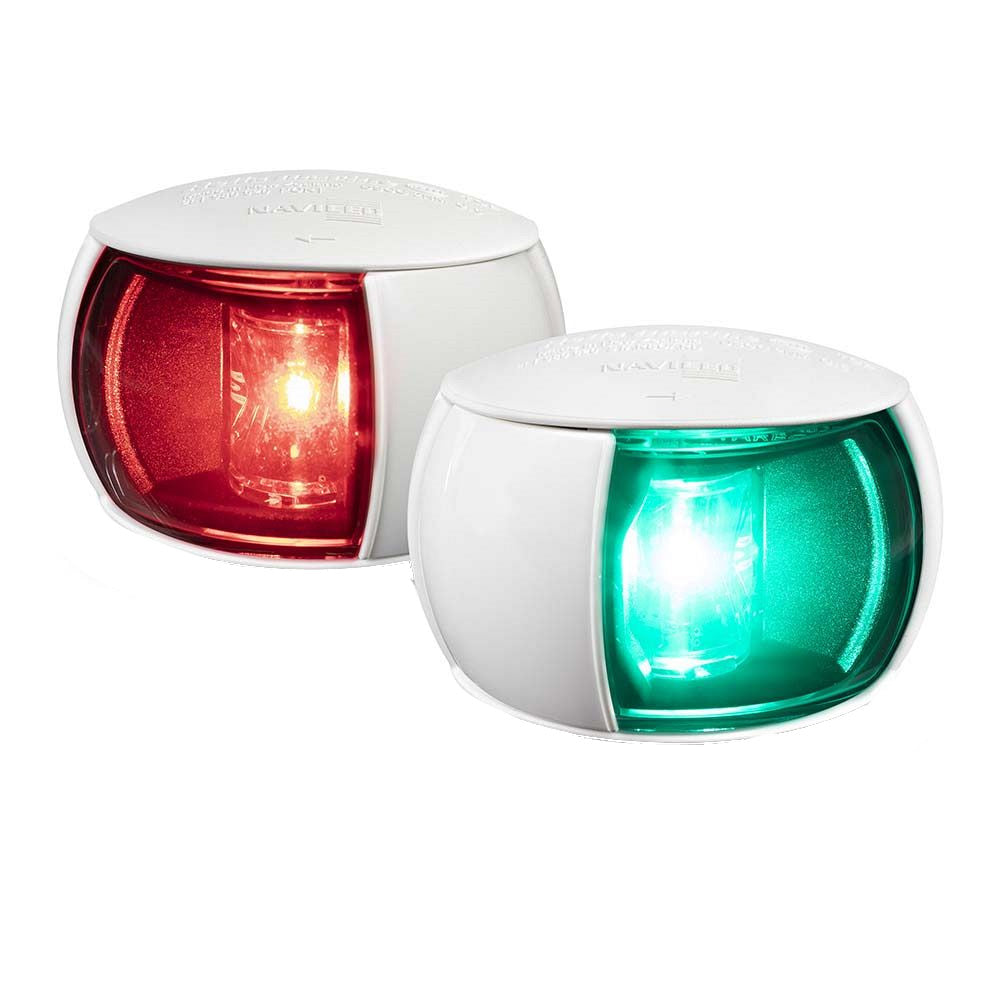

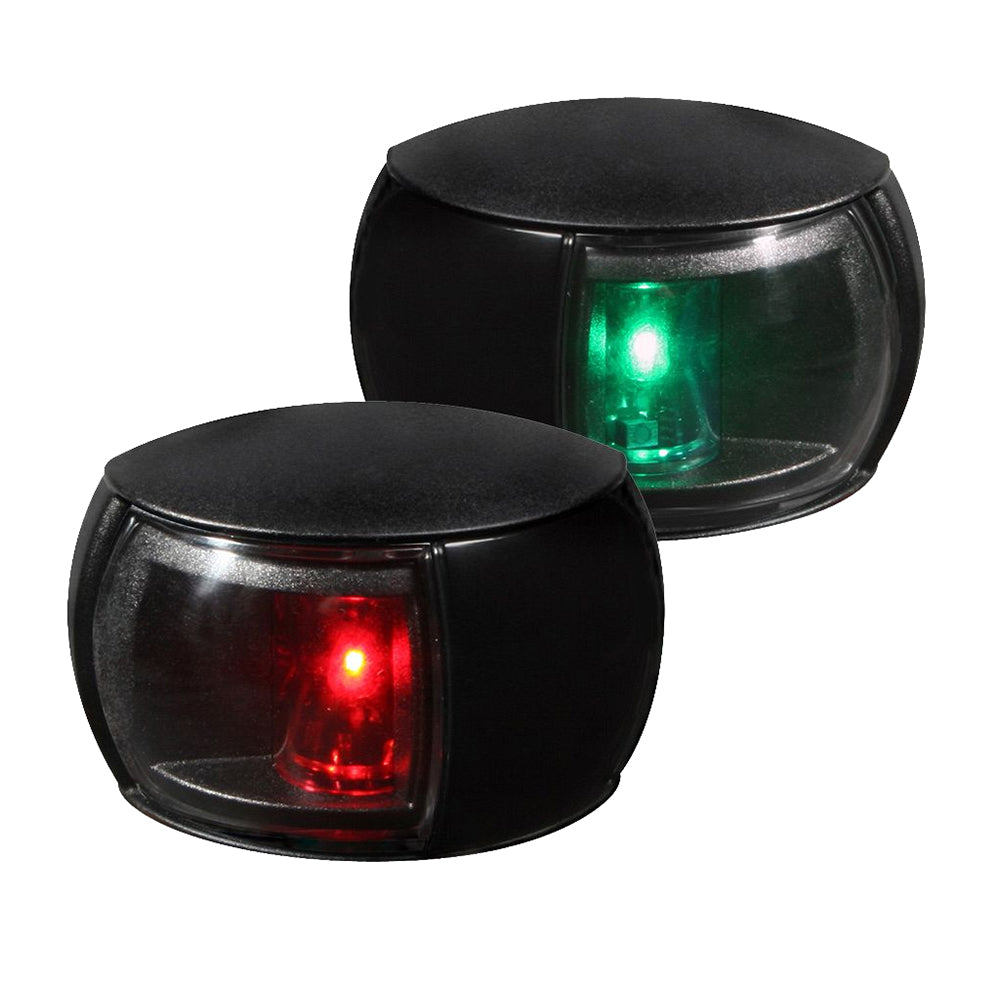

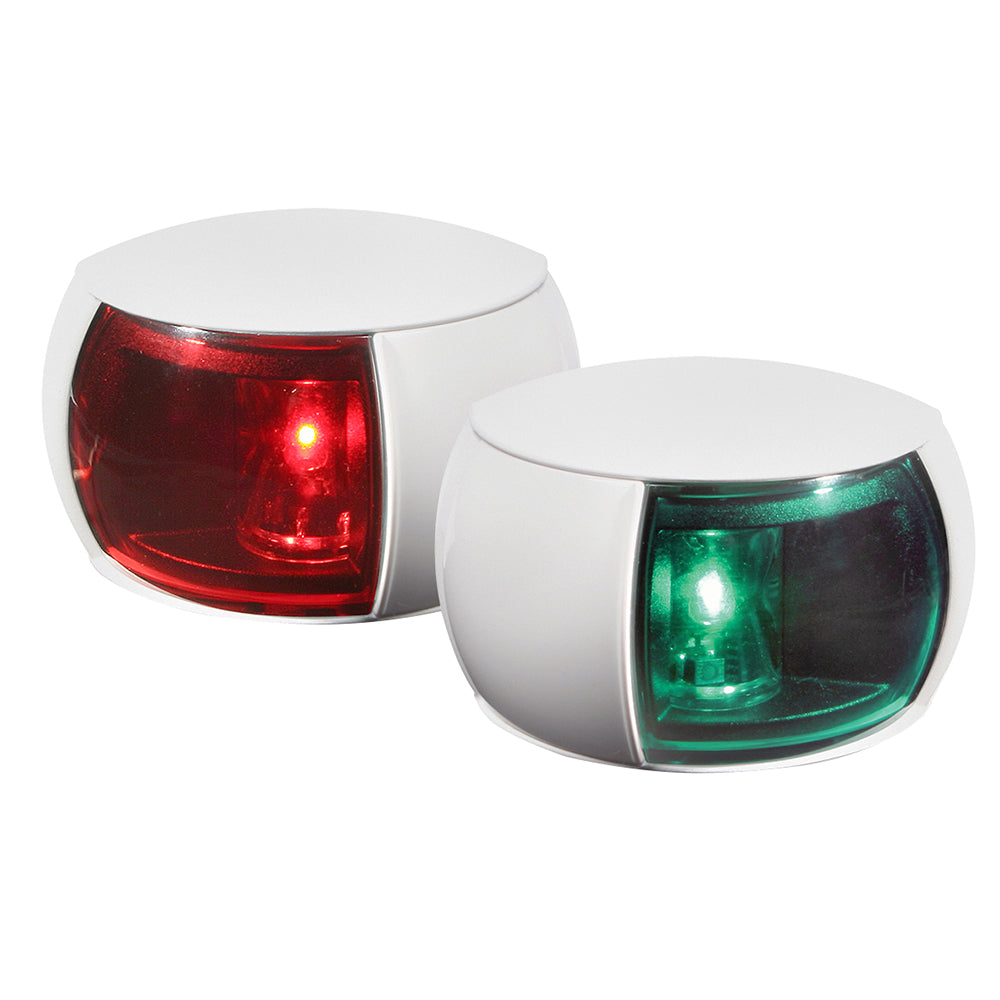

Available in Colored Lens/White Housing, Clear Lens/Black Housing and Clear Lens/White Housing -- choose your option below.
