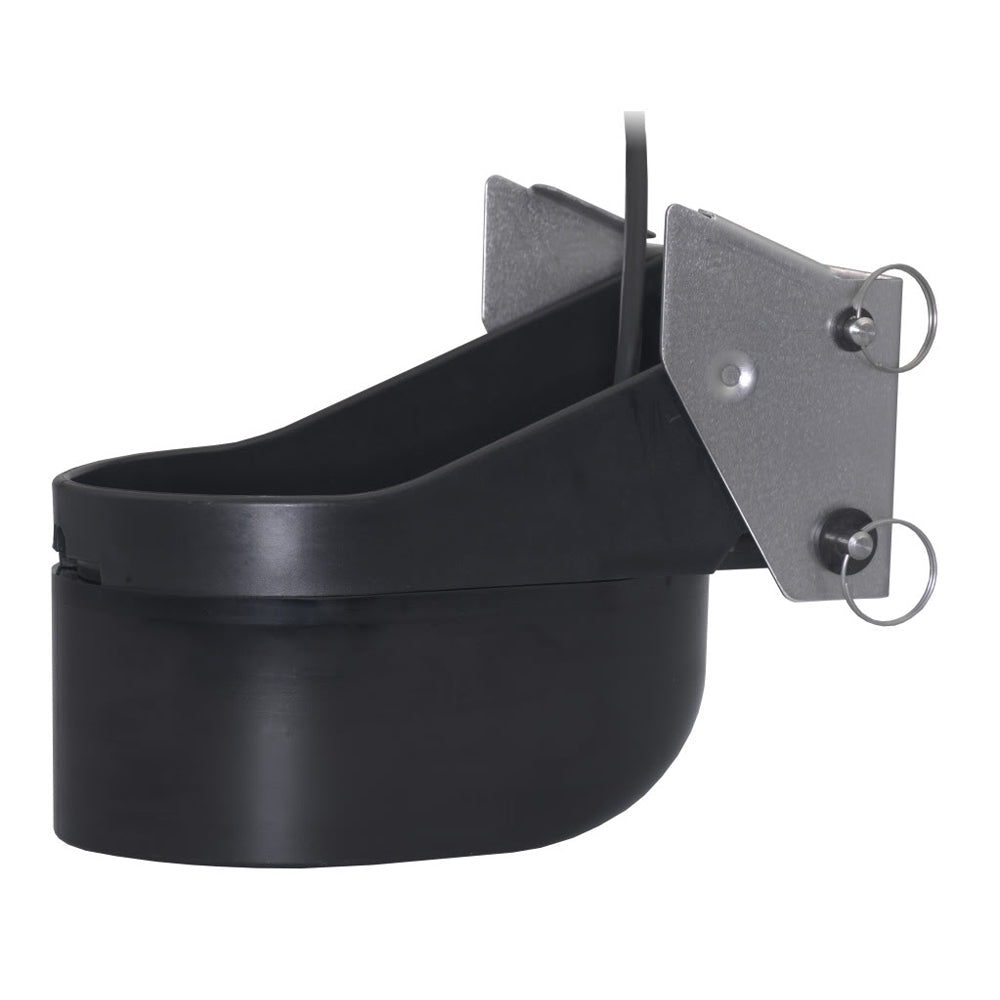

The Garmin TM265LH is a 1 kW plastic transom mount transducer built for serious depth performance, capable of reading bottom structure and water column detail down to 3,000 feet. Dual-frequency operation across both low and high bands gives anglers flexibility from shallow inshore water to deep offshore breaks, while the broad transom angle compatibility simplifies installation on a wide variety of hull designs.

Specifications:

• Transducer type: Plastic transom mount
• Connector: 12-pin
• Sensing: Depth and temperature
• Maximum depth: 3,000 feet
• Power output: 1 kW (top-performing plastic transom mount class)
• Operating frequency: 42–65 kHz (low) and 130–210 kHz (high)
• Beamwidth: 16–25 degrees (low frequency) / 6–10 degrees (high frequency)
• Compatible transom angle: 3–21 degrees

Compatible Devices:

• GPSMAP® 7607xsv, 7608xsv, 7610xsv, 7612xsv, 7616xsv
• GSD™ 25 Premium Sonar Module

In the Box:

• TM265LH transducer
• Installation instructions

Resources:

• Owner's Manual (PDF)
• Product Brochure (PDF)
