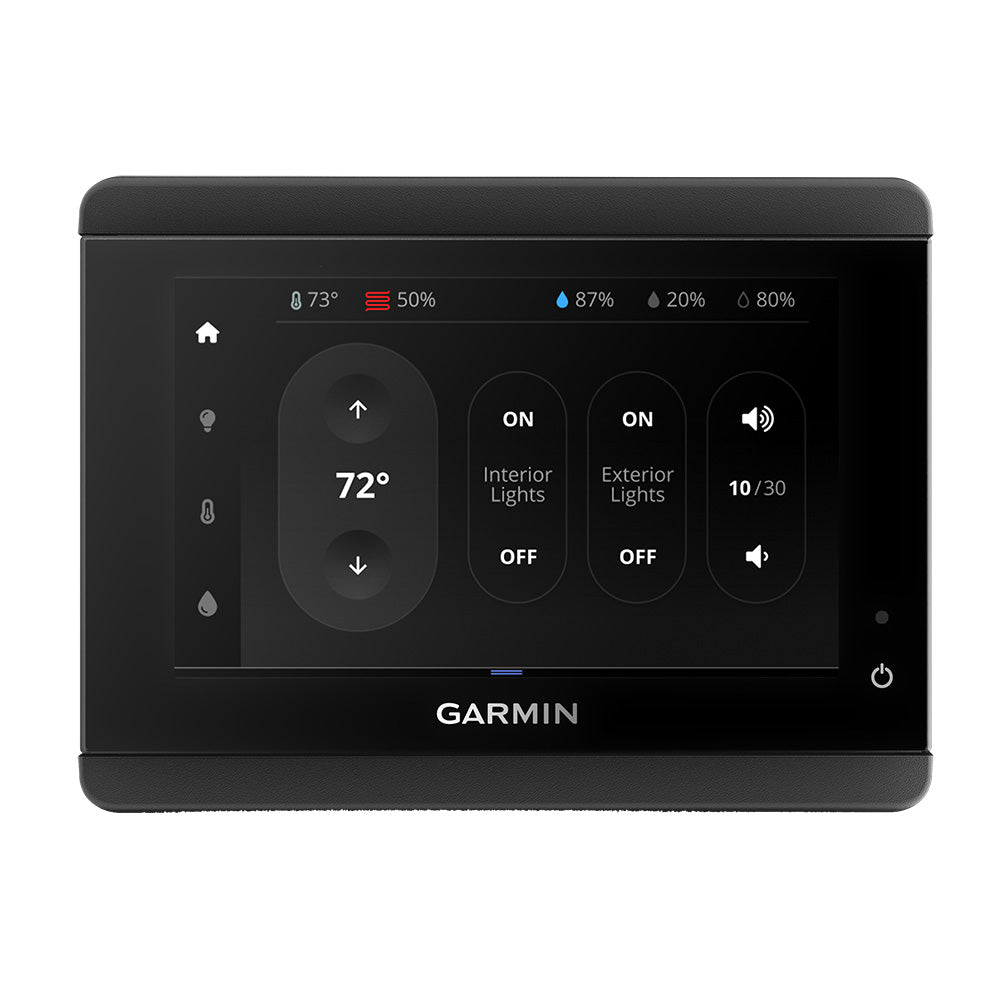

The Garmin TD 50 is a 5-inch edge-to-edge glass touchscreen that extends your onboard network to virtually any location on the vessel. Through a single plug-and-play connection, it provides centralized control over engine data, vessel switching, lighting, climate, entertainment, security sensors, autopilots, and more. Compatible with NMEA 2000, EmpirBus, OneHelm third-party systems, and the Garmin Marine Network, it pairs seamlessly with GPSMAP series chartplotters. IPX7-rated and built around a fully gasketed polycarbonate case, it delivers a 1,200-nit display with adjustable backlighting and a wide viewing angle for clear readability in demanding on-water conditions.

Specifications:

• Display: 5" edge-to-edge glass touchscreen with anti-glare and anti-fingerprint finish
• Dimensions Without Sun Cover (H x W x D): 4.1 x 4.5 x 2.0 in. (10.5 x 14.0 x 5.1 cm)
• Dimensions With Sun Cover (H x W x D): 4.5 x 5.7 x 2.2 in. (11.3 x 14.4 x 5.6 cm)
• Weight Without Sun Cover: 11.6 oz. (328 g)
• Weight With Sun Cover: 13.2 oz. (375 g)
• Operating Temperature Range: 5° to 131° F (-15° to 55° C)
• Compass-Safe Distance: 7.9" (20 cm)
• Case Material: Fully gasketed polycarbonate
• Lens Material: Glass with anti-glare and anti-fingerprint coating
• Water Rating: IPX7
• Brightness: 1,200 cd/m² (NIT)
• Power Usage: 5.9 W max.
• NMEA 2000® Input Voltage: 9 to 16 Vdc
• NMEA 2000 LEN @ 9 Vdc: 13 (650 mA)
• Network Compatibility: NMEA 2000®, EmpirBus™, OneHelm™ third-party systems, Garmin Marine Network
• Mounting Options: Flat or flush mount
