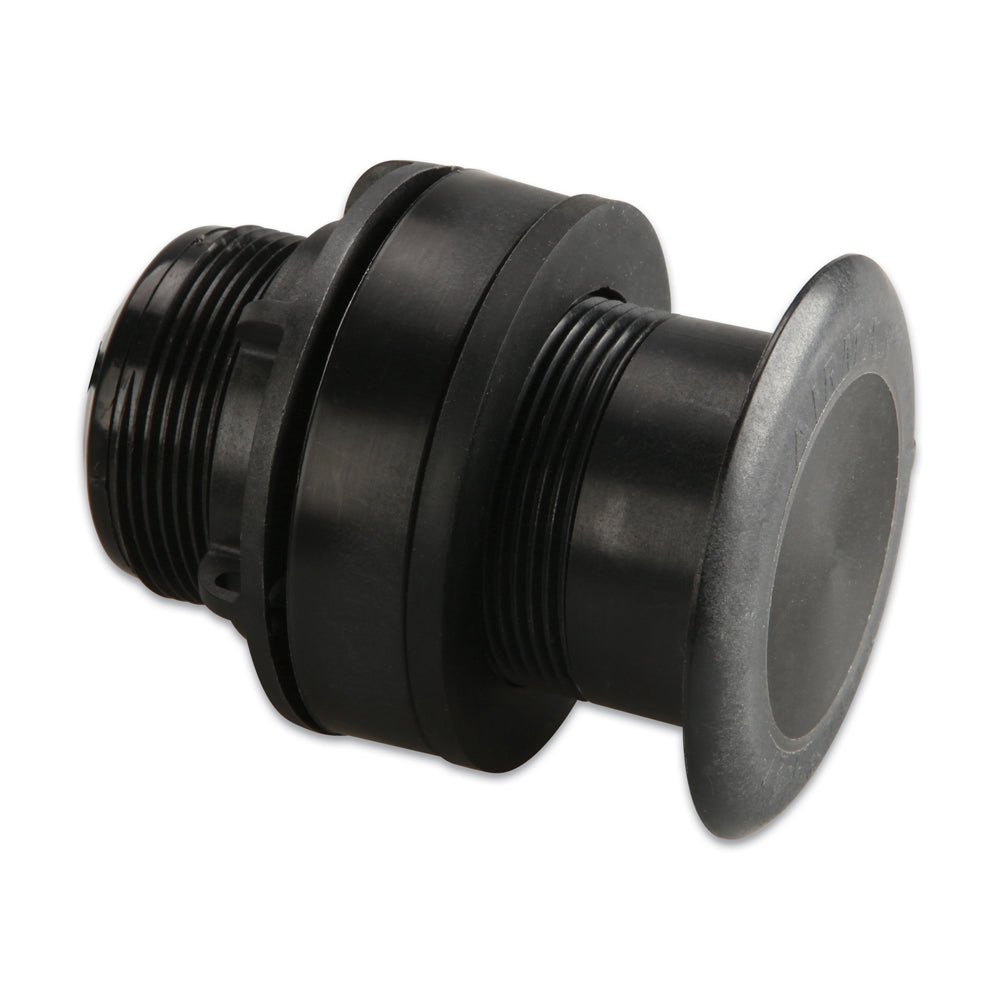

The Garmin P319 is a plastic thru-hull transducer built for reliable depth and temperature readings at high speeds. Suited for fiberglass and metal hulls, this 8-pin unit covers depths up to 1,200 feet across dual operating frequencies. Note: not compatible with wood hulls. When pairing with a 6-pin Garmin sounder, adapter cable part number 010-11612-00 is required.

Specifications:

• Part Number: 010-10194-21
• Transducer Type: Plastic thru-hull mount
• Pin Configuration: 8-pin
• Power: 600 W
• Operating Frequency: 50 kHz / 200 kHz
• Beamwidth: 45 degrees (50 kHz) / 12 degrees (200 kHz)
• Depth Range: 800 to 1,200 ft
• Deadrise: 0 to 7 degrees
• Compatible Hull Materials: Fiberglass, metal (not for use on wood hulls)
• Includes: Transducer kit with installation instructions

Resources:

• Owner's Manual (PDF)
• Product Brochure (PDF)
