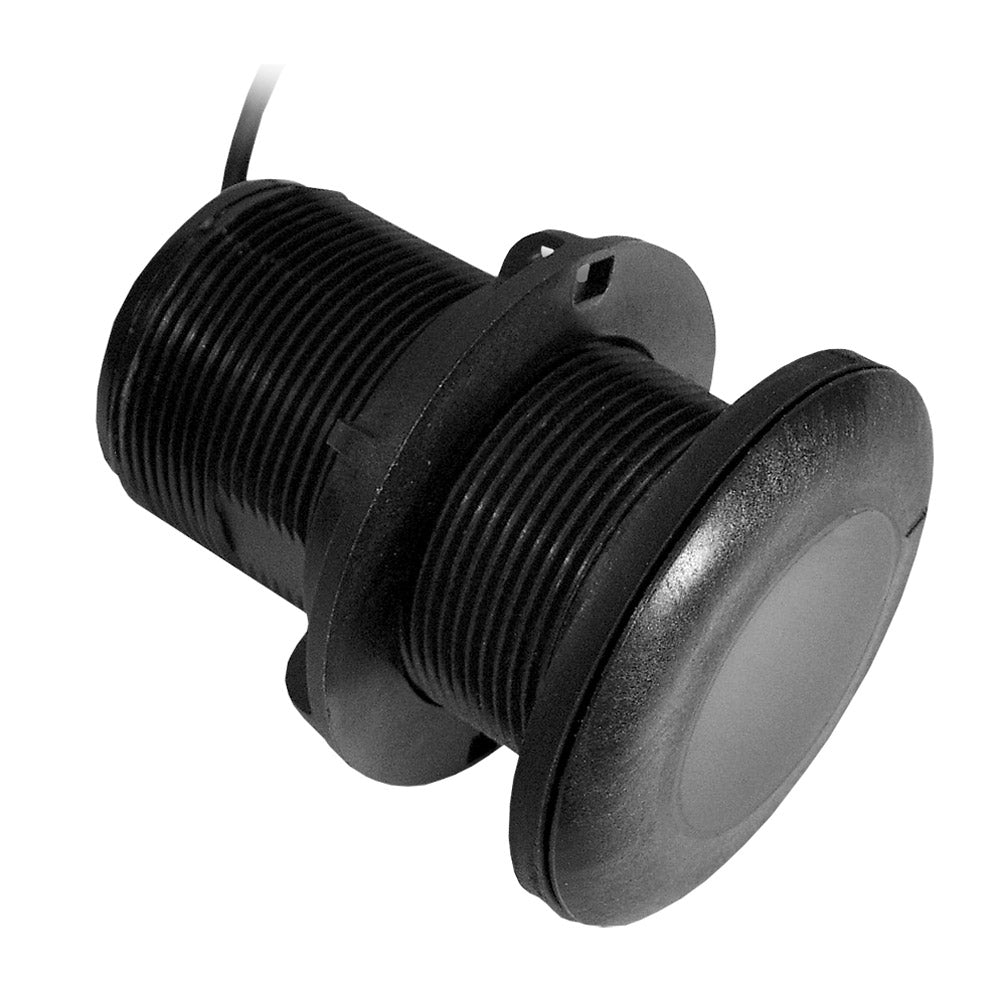

The Garmin P19 is a nylon thru-hull transducer engineered for cruising powerboats and sailboats up to 30 feet. A large ceramic element reads depth and temperature to 700 feet, while the housing protrudes only 5 mm below the hull for a near-flush, low-drag installation. The 20° fixed internal element tilt is matched to hull deadrise angles of 16°–24°, projecting a true vertical sonar beam without requiring a separate fairing block. A right-angle cable exit simplifies routing in tight bilge spaces and resists accidental step-on damage.

Specifications:

• Model: P19 Nylon 20° Tilted Element Thru-Hull
• Connector: 8-pin Garmin
• Sensing: Depth and temperature
• Maximum depth: 206 m (700 ft)
• Tilt angle: 20° fixed — designed for 16°–24° hull deadrise
• Hull protrusion: 5 mm (2/10 in) — nearly flush, low-drag profile
• Housing material: Plastic (nylon)
• Housing compliance: ABYC H-27
• Cable exit: Right-angle — low headroom clearance, step-on protection
• Includes rubber washer for sealing against irregular hull surfaces
• Optional temperature sensor available
• Recommended boat size: Up to 9 m (30 ft)
• Applications: Cruising powerboats and sailboats

Resources:

• Owner's Manual (PDF)
• Quick Start Guide (PDF)
• Product Brochure (PDF)
