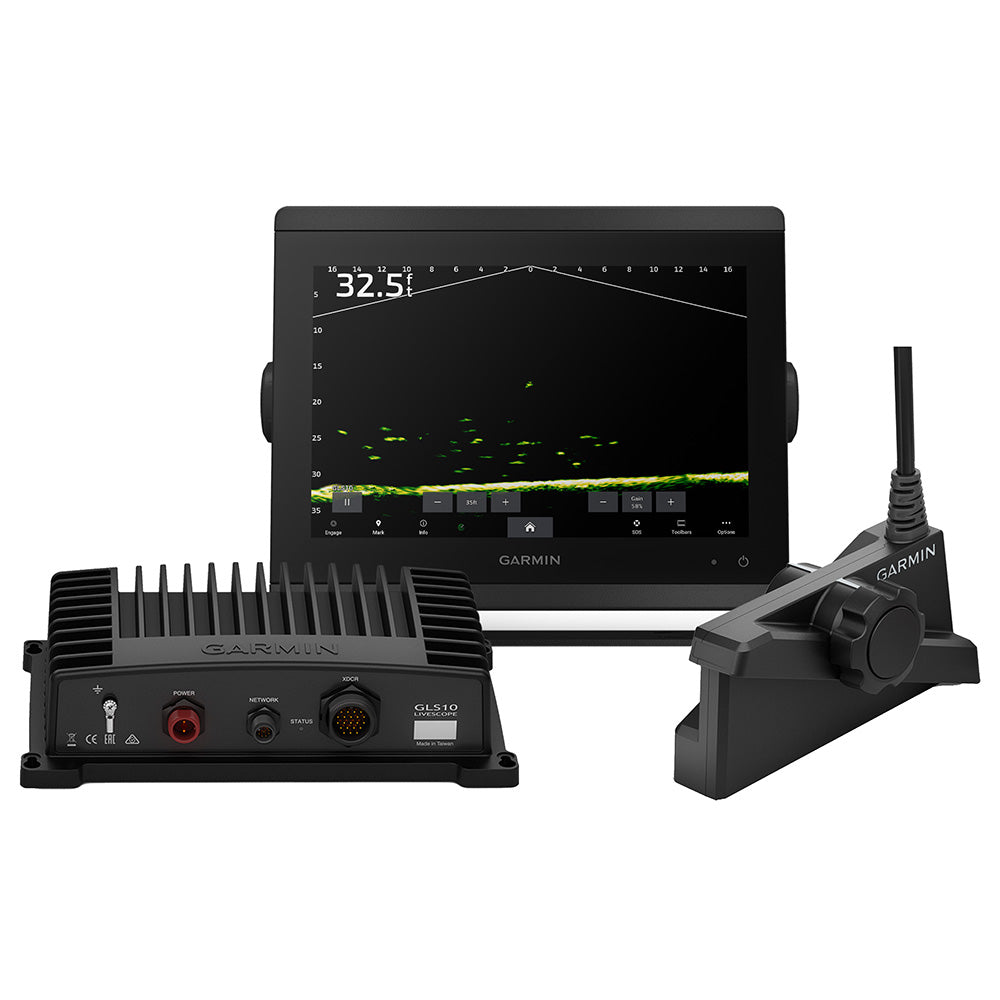

The Garmin LiveScope Plus Ice House System delivers a complete, ready-to-drill setup built around the GPSMAP 8610xsv chartplotter paired with the LiveScope Plus System, GLS 10 sonar black box, and an LVS34-IF transducer engineered with a cable that stays flexible in sub-freezing temperatures. A 0-degree pole mount is included so you can switch between LiveScope Forward and LiveScope Down modes without tools, and fully customizable display pages let you combine sonar views, flashers, and charts in any layout you want. The 10-inch full HD IPS touchscreen comes preloaded with Garmin Navionics+ mapping across thousands of U.S. inland lakes and coastal waters, and HDMI output lets you mirror the screen to a TV or external monitor inside the ice house.

Features:

• 10-inch full HD IPS touchscreen with HDMI output for mirroring to a TV or external monitor (HDMI cable not included)
• Included 0-degree pole mount enables instant switching between LiveScope Forward and LiveScope Down modes
• Preloaded Garmin Navionics+ mapping covering 25,000+ inland and coastal lakes
• Custom display pages blend sonar, flashers, and maps in your preferred layout
• Built-in sonar functions on ice or open water
• LVS34-IF transducer cable engineered to remain flexible in freezing temperatures

In the Box:

• GPSMAP 8610xsv with preloaded Garmin Navionics+ Coastal Charts and Inland Mapping for U.S. or Canada
• LiveScope Plus LVS34-IF transducer
• GLS 10 black box sonar module with power and network cables
• Ice fishing pole mount
• Documentation

Specifications:

• Dimensions: 10.25 x 8.0625 x 2.95 in. / 25.9 x 20.5 x 7.5 cm
• Touchscreen: Yes
• Input: Touchscreen
• Display Size: 8.6 x 5.4 in., 10.1-inch diagonal / 21.8 x 13.7 cm; 25.7 cm diagonal
• Display Resolution: 1920 x 1200 pixels
• Display Type: WVGA, IPS
• Weight: 15.4 lbs / 7.0 kg
• Waterproof: IPX7
• Power Input: 10 to 32 Vdc
• Accepts Data Cards: 2 microSD cards
• Waypoints: 5,000
• Track Points: 50,000
• Saved Tracks: 50
• Navigation Routes: 100
• Built-in Receiver: Yes — 10 Hz
• GPS: Yes
• GLONASS: Yes
• Galileo: Yes
• WAAS Support: Yes
• NMEA 2000 Compatible: Yes
• ActiveCaptain Compatible: Yes
• Built-in Auto Guidance+: Yes (downloadable via ActiveCaptain app)
• Included Transducer: LiveScope Plus System with LVS34-IF
• Transducer Holding Feature: Pole mount
• Sonar Power Output: 1 kW
• Traditional Sonar: Built-in dual-channel CHIRP (70/83/200 kHz, L/M/H CHIRP)
• ClearVü: Built-in 260/455/800/1000/1200 kHz
• SideVü: Built-in 260/455/800/1000/1200 kHz
• Panoptix Sonar: Yes
• LiveScope Forward and Down Modes: Yes
• Optional Map Support: BlueChart g3, BlueChart g3 Vision, LakeVü g3, LakeVü g3 Ultra, Garmin Navionics+, Garmin Navionics+ Vision+, TOPO, Standard Mapping, Garmin Quickdraw Contours, Raster Chart Support
