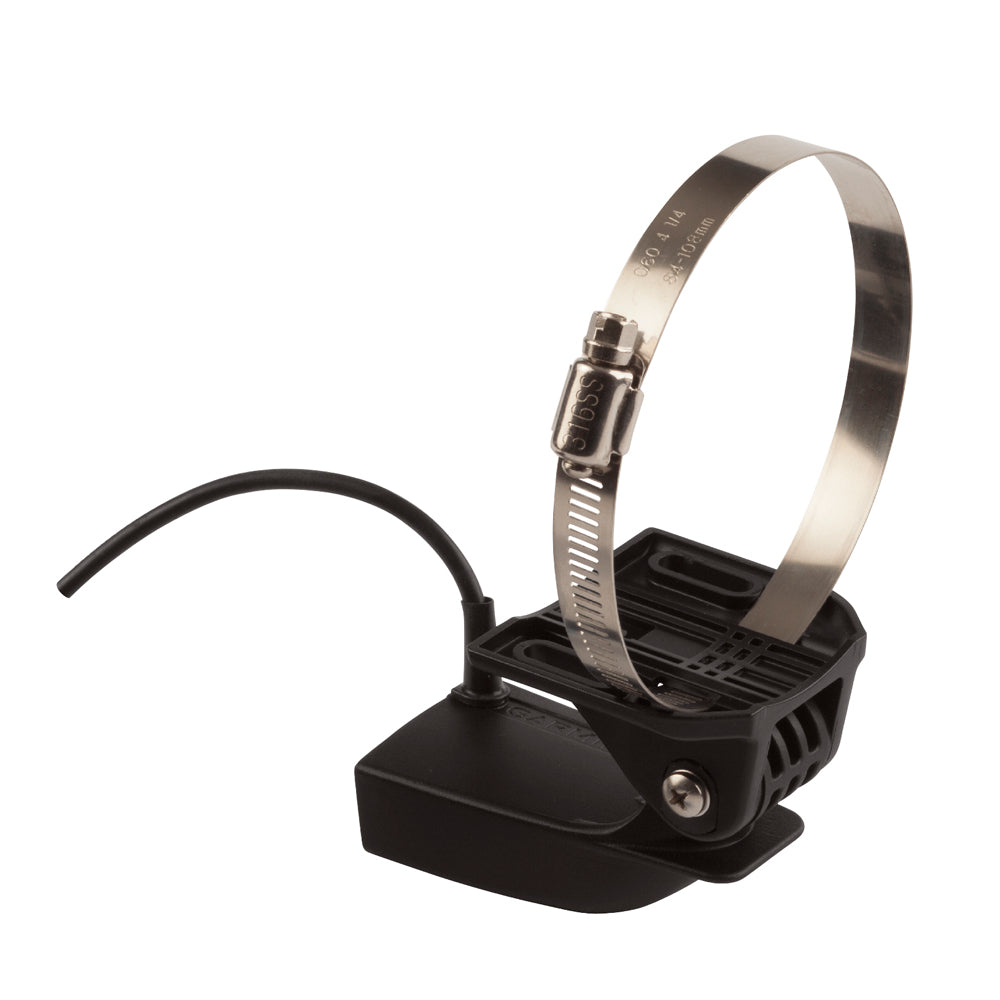

The Garmin GT8HW-TM delivers High Wide Band CHIRP sonar across a continuous 150–240 kHz sweep, producing sharp bottom detail and well-separated fish arches in shallow-water conditions. A beam angle up to 24 degrees provides a broader coverage footprint than standard-width transducers, while the 250 W power rating and 8-pin connector keep it compatible with a wide range of Garmin displays. The plastic body mounts on a transom or a trolling motor, giving you flexible installation options across different boat configurations.

Specifications:

• Model: GT8HW-TM
• Sonar type: High Wide Band CHIRP traditional sonar
• Frequency range: 150–240 kHz
• Power rating: 250 W
• Beam angle: Up to 24 degrees
• Connector: 8-pin
• Body material: Plastic
• Mount compatibility: Transom or trolling motor

Resources:

• Owner's Manual (PDF)
