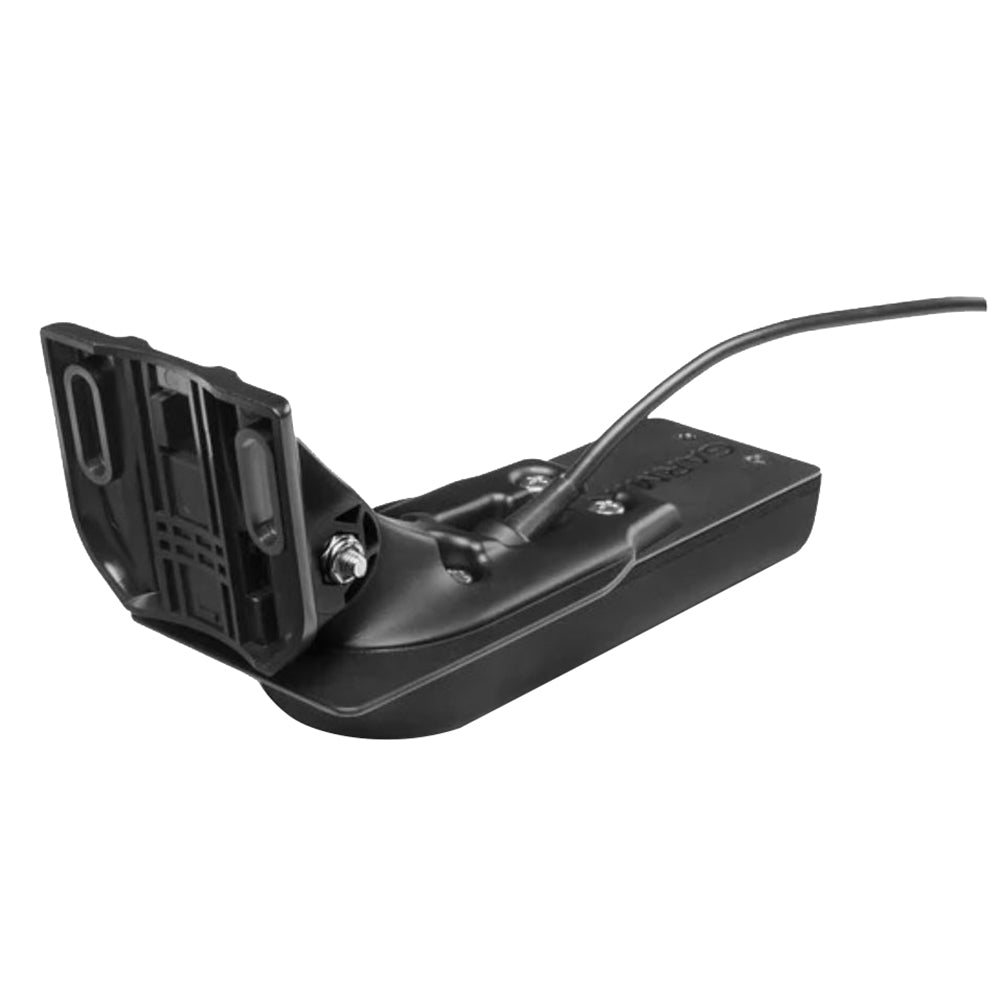

The Garmin GT52HW-TM packs CHIRP traditional sonar, CHIRP DownVü, and CHIRP SideVü into one compact plastic housing sized for trolling motor or transom mounting. The high wide CHIRP band returns well-defined fish arches and clean target separation, while the scanning elements map structure and bottom detail both below and to the sides of the hull. A 12-pin connector and 20-foot cable keep installation tidy with compatible Garmin chartplotters.

Specifications:

• Frequency: CHIRP High Wide (150–240 kHz); ClearVü CHIRP 455 kHz (425–485 kHz) and 800 kHz (790–850 kHz)
• Power: Traditional 250 W; ClearVü/SideVü 350 W (500 W per element; 1,500 W total system)
• Beamwidth: Traditional 24°–16°; ClearVü/SideVü 2.0°x50° at 455 kHz and 1.0°x30° at 800 kHz
• Maximum depth — Traditional: 800 ft.; ClearVü: 500 ft.; SideVü: 500 ft.
• Sensing: Depth and temperature
• Connector: 12-pin
• Cable length: 20 ft.
• Supported transom angles: 0°–70°
• Mount type: Trolling motor or transom mount
• Housing material: Plastic

Resources:

• Owner's Manual (PDF)
