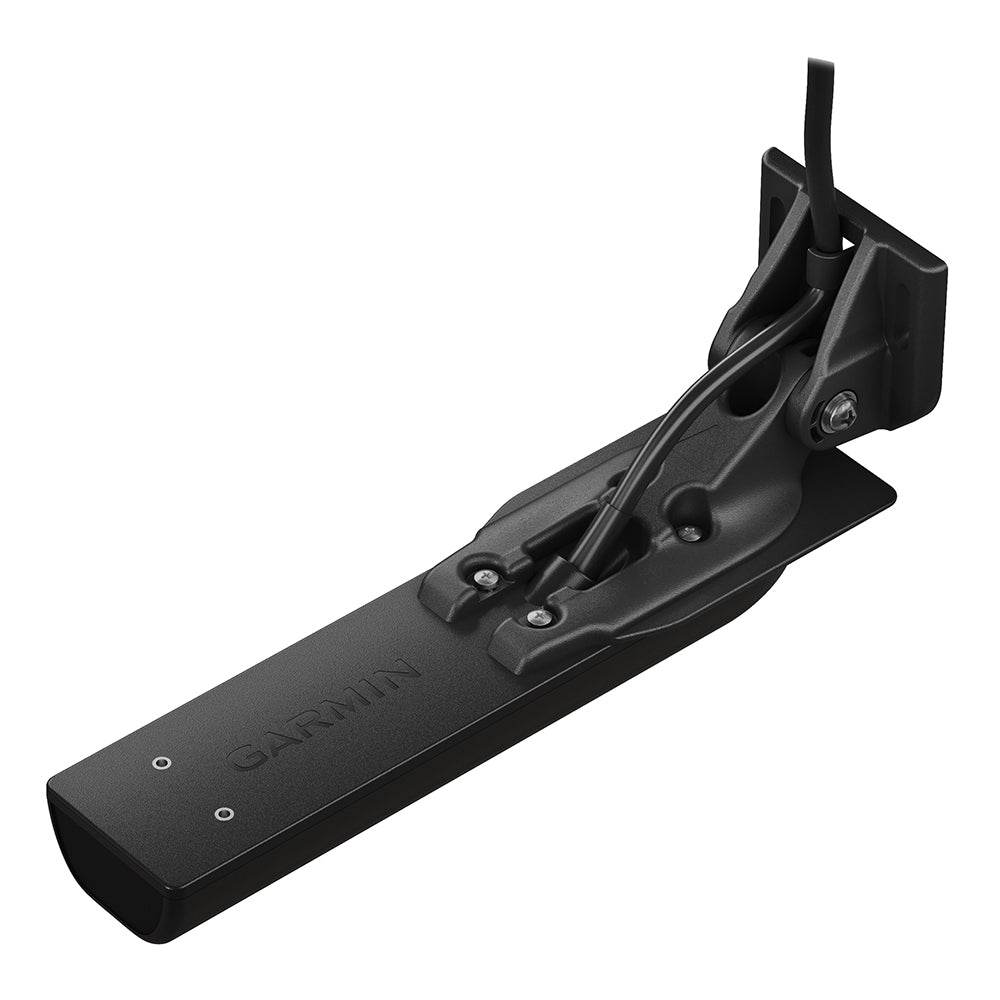

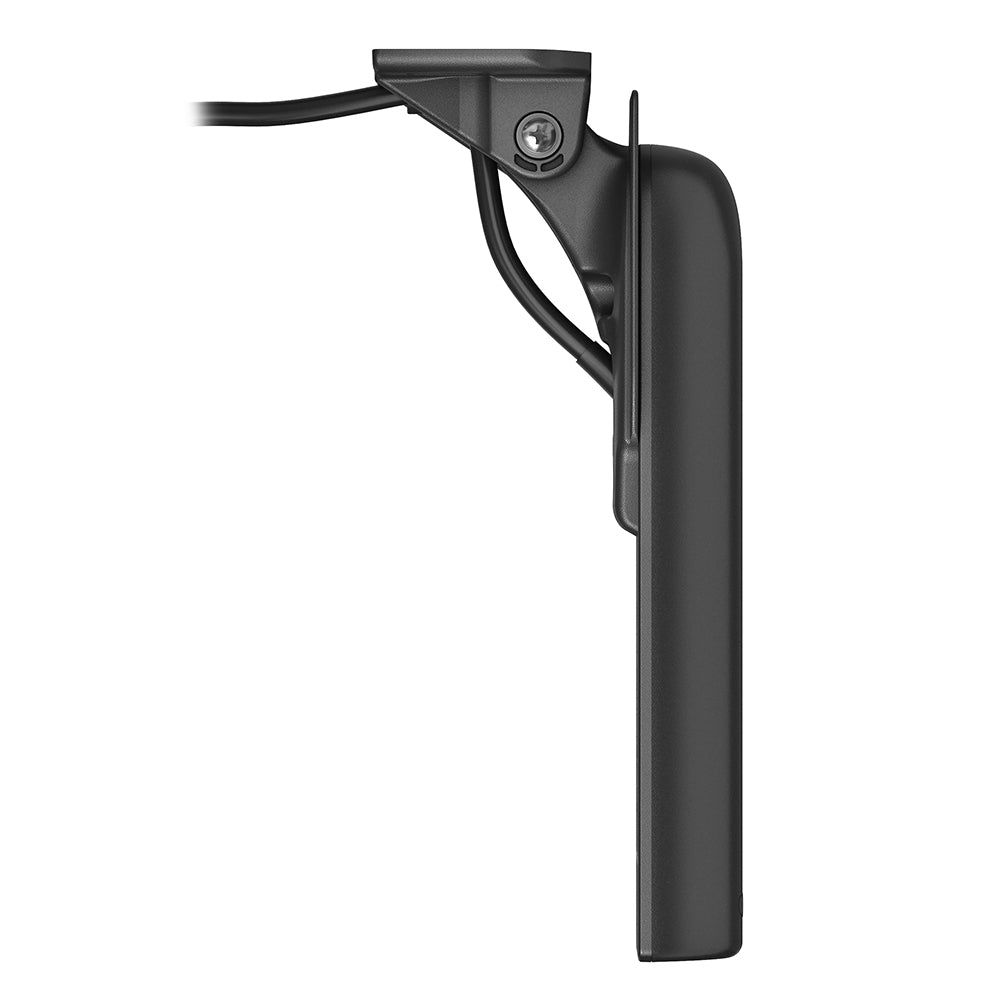

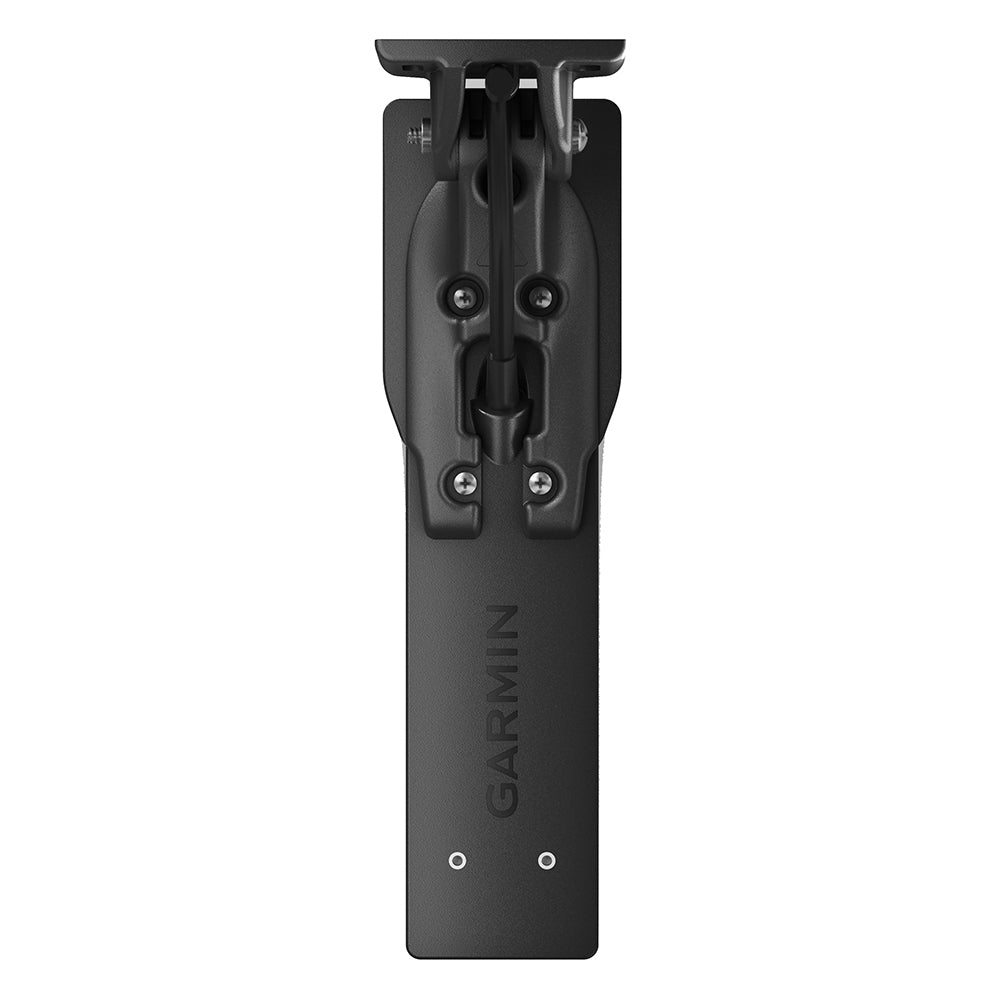

The Garmin GT36UHD-TM delivers Ultra High-Definition SideVü and ClearVü scanning sonar in a single transom-mount transducer. Three selectable frequencies let you dial in the right balance of range and resolution whether you're working shallow structure or pushing into deeper water, and vivid color palettes make it easy to separate fish from bottom clutter at a glance. Hardware for both transom and trolling motor mounting is in the box, giving you installation flexibility right out of the package.

Specifications:

• Ultra High-Definition SideVü scanning sonar with 20% greater range at 1 MHz
• Ultra High-Definition ClearVü scanning sonar for top performance at all depths
• 455 kHz SideVü scanning sonar provides up to 500 feet of coverage on each side of the boat
• Three selectable scanning sonar frequencies: 455 kHz, 800 kHz, and 1 MHz
• Vivid scanning sonar color palettes for easy identification of fish and bottom structure
• Includes transom mount and trolling motor mount hardware
