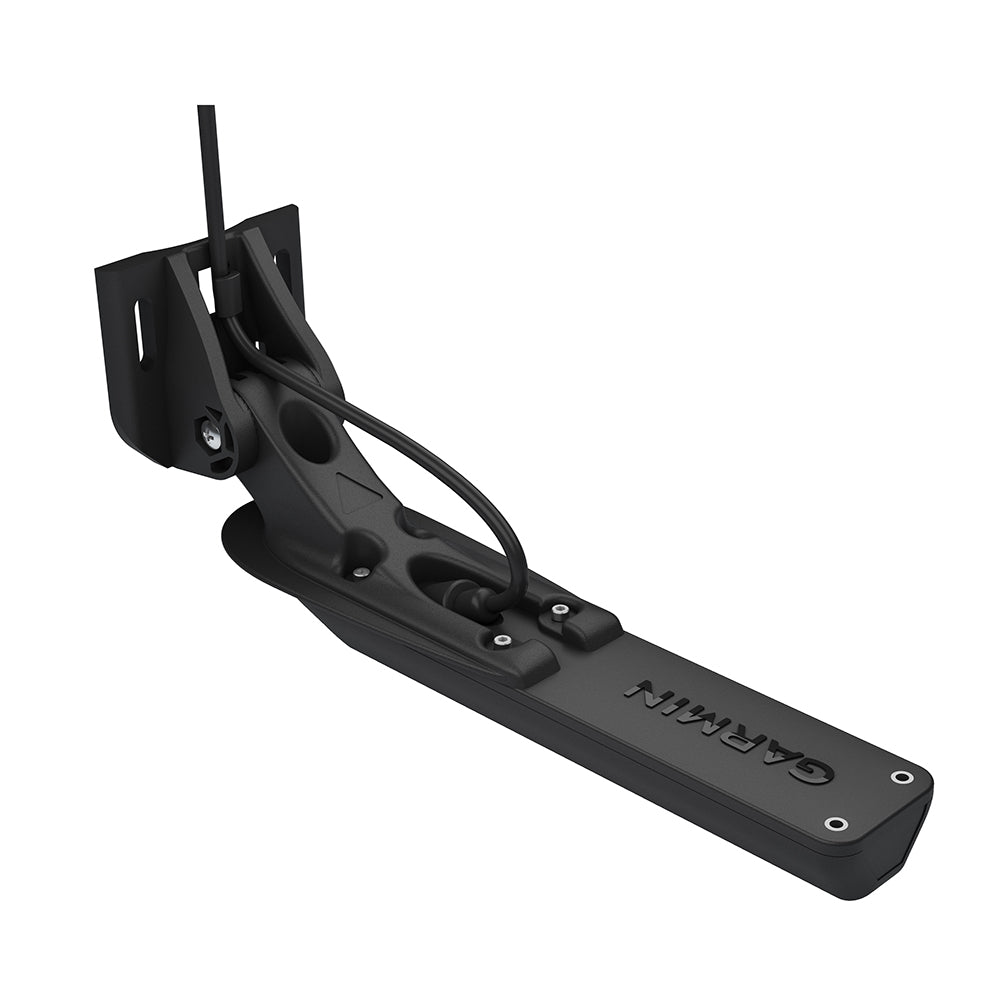

The Garmin GT34UHD-TM pairs with the GCV™ 20 sonar module to bring Ultra High-Definition scanning sonar to compatible chartplotters. Three transducer arrays — including a dedicated downward-facing element — produce sharp imagery of structure and fish both directly below and to either side of the hull. Operating across frequencies from 0.8 MHz to 1.2 MHz, this transom-mount transducer delivers detail that standard high-frequency scanning sonar simply can't match, whether you're working freshwater impoundments or saltwater inshore flats.

Specifications:

• Frequency — Ultra High-Definition ClearVü: 0.8 MHz (800 kHz), CHIRP range: 760–880 kHz
• Frequency — Ultra High-Definition SideVü: 1.2 MHz (1,200 kHz), CHIRP range: 1,060–1,170 kHz
• Power: 500W
• Beamwidth — Ultra High-Definition ClearVü: 0.74° x 46°
• Beamwidth — Ultra High-Definition SideVü: 0.44° x 55°
• Maximum depth — Ultra High-Definition ClearVü: 200 ft down
• Maximum depth — Ultra High-Definition SideVü: 125 ft sides, 250 ft total
• Depth/Speed/Temperature: Depth and Temperature
• Number of pins: 12-pin
• Cable length: 20 ft
• Supported deadrise/transom angles: 0°–70°
