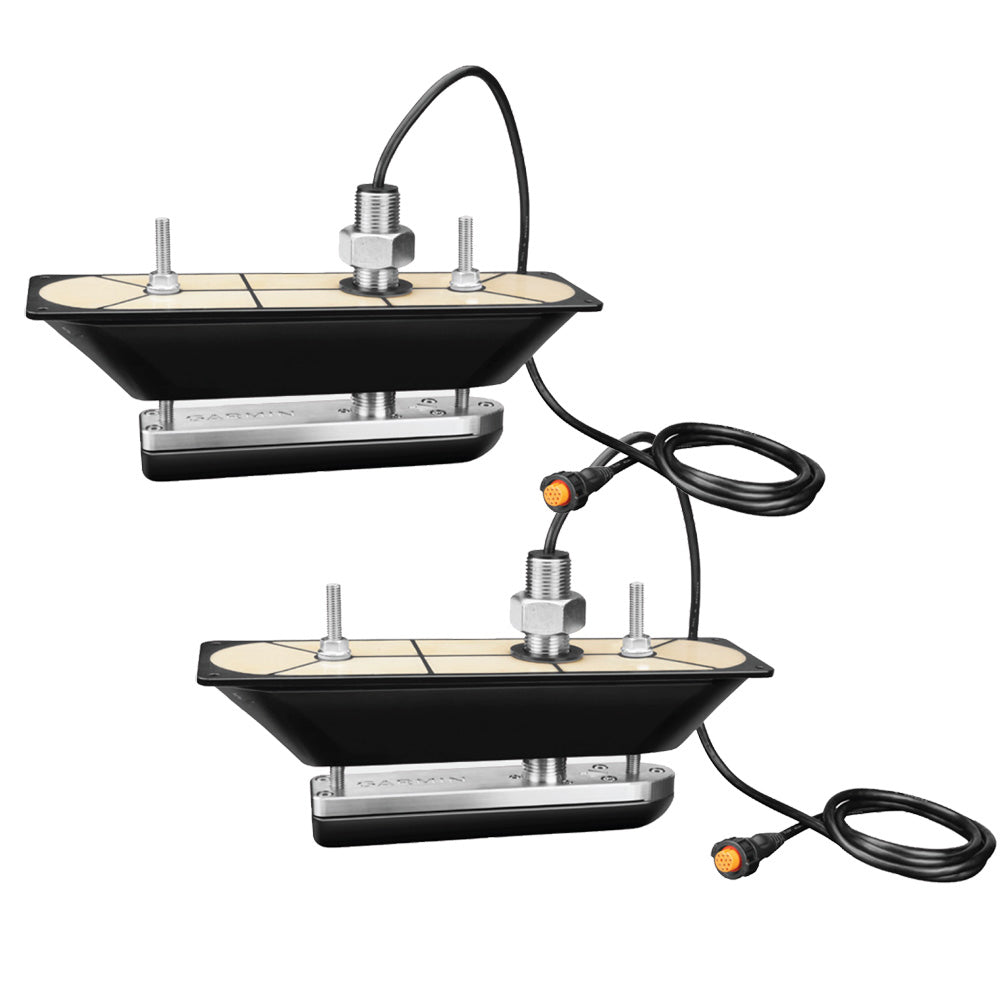

The Garmin GT30-THP is a matched thru-hull transducer pair that brings DownVü and SideVü scanning sonar to vessels with hull deadrises between 5° and 25°. Stainless steel stems handle the installation, while CHIRP 455/800 kHz frequencies and built-in fast-response temperature sensors give you detailed views of fish and structure below and to both sides of the hull. The pair connects directly to the GCV™ 10 Scanning Sonar Module via 12-pin connectors for a clean, capable scanning setup.

Specifications:

• Power rating: 500 W per element (1,500 W total)
• Operating frequency: CHIRP 455/800 kHz
• DownVü depth capability: 750 ft
• SideVü depth capability: 500 ft (left and right)
• Hull deadrise range: 5° to 25°
• Connector: 12-pin
• Stem material: Stainless steel
• Built-in fast-response temperature sensor
• Compatible device: GCV™ 10 Scanning Sonar Module

In the Box:

• 12-pin port transducer with stainless steel stem
• 12-pin starboard transducer with stainless steel stem
• Isolation bushings
• Fairing blocks
• Y-cable
• Mounting hardware
• Installation instructions

Resources:

• Owner's Manual (PDF)
