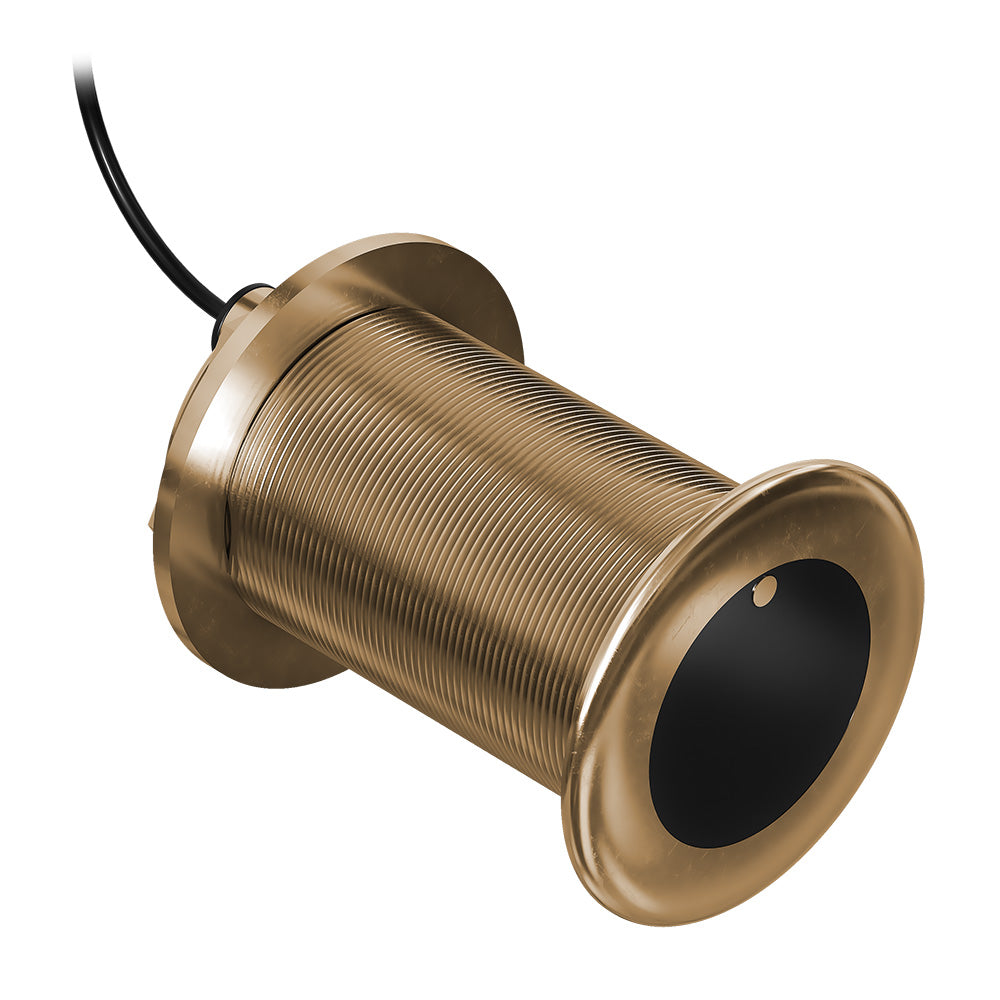

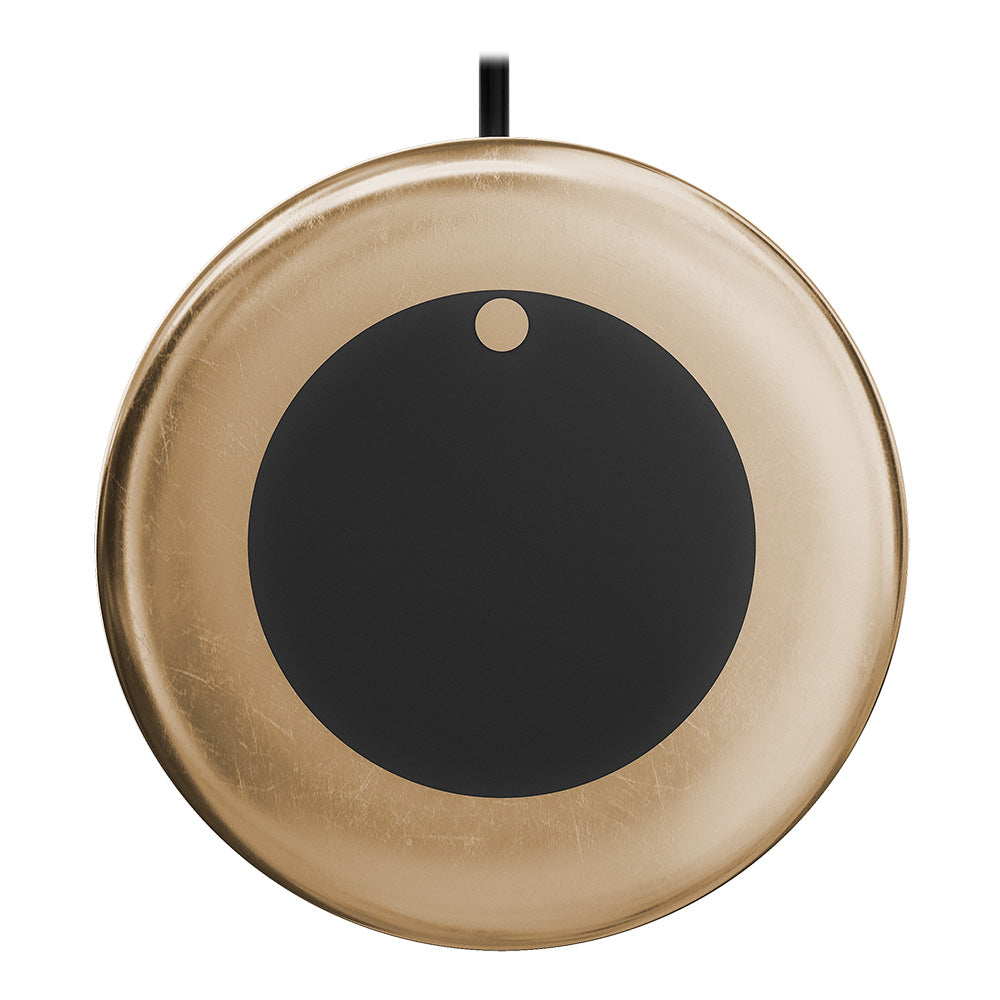

The Garmin GT12M-THF is a flush-mount bronze thru-hull transducer designed for midsize fishing and cruising boats that demand clean hull lines and dependable bottom tracking. Mid-band CHIRP sonar across 85–165 kHz produces well-defined fish arches and crisp structure returns, reaching depths of 800 ft in saltwater and 1,200 ft in freshwater. Auto-ID plug-and-play setup lets a compatible Garmin sonar unit recognize and configure the transducer automatically. The bronze housing installs through fiberglass, composite, or wood hulls with deadrise angles from 16° to 24°, eliminating the need for a fairing block.

In the Box:

• GT12M-THF transducer
• Jam nut
• Washer
• Documentation

Specifications:

• Transducer Type: Mid-band CHIRP traditional sonar
• Frequency Range: 85–165 kHz
• Power Output: 350 W
• Beamwidth: 24°–16°
• Maximum Depth: 800 ft saltwater / 1,200 ft freshwater
• Cable Length: 50 ft
• Sensing: Depth and temperature
• Connector: 8-pin
• Housing Material: Bronze
• Supported Deadrise Angle: 20° version supports hull deadrise angles from 16° to 24°
• Mount Type: Thru-hull flush mount

Resources:

• Installation Guide (PDF)
