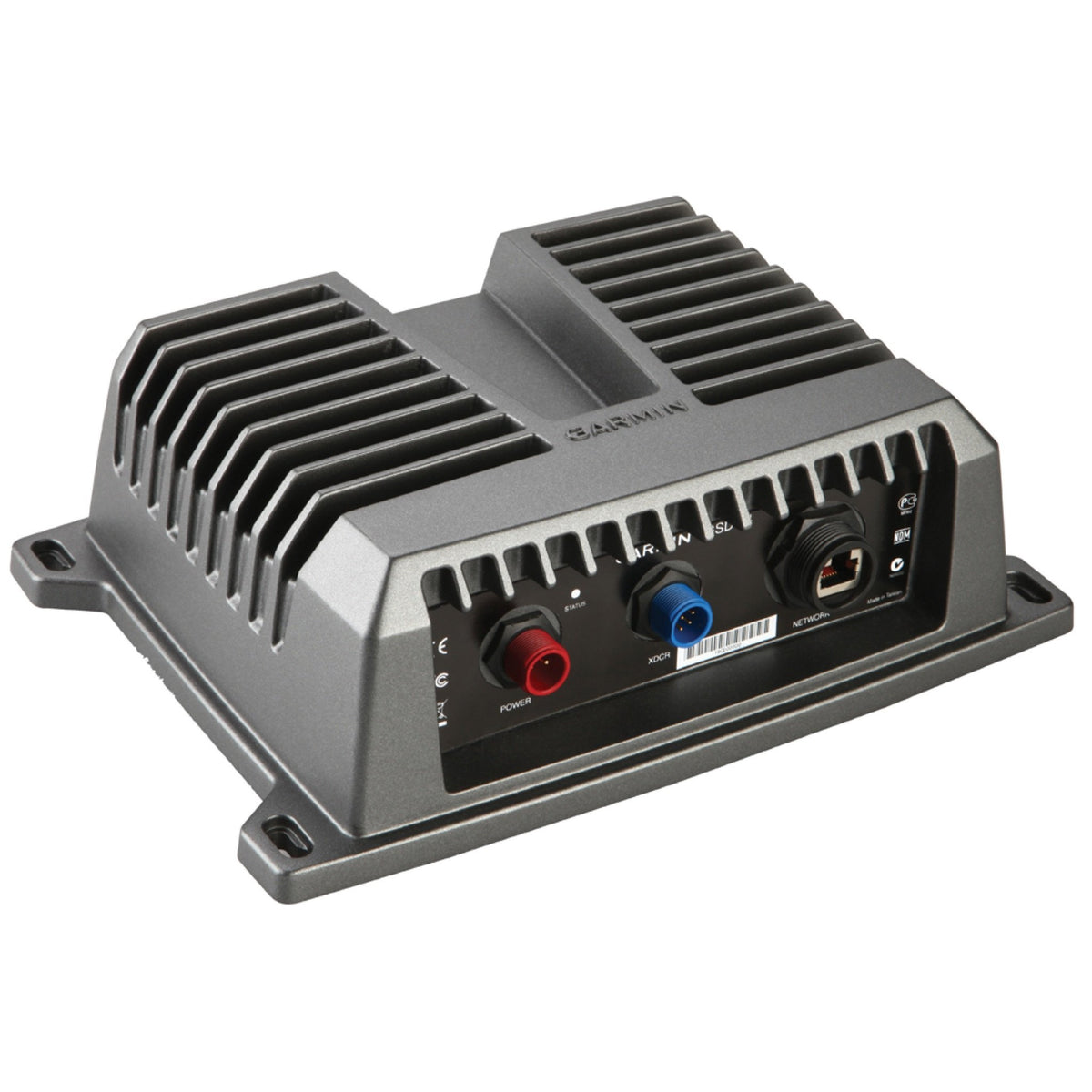

The Garmin GSD 24 is a digital black box network sounder engineered for high-definition sonar performance across a wide range of depths. Delivering up to 2,000 watts of transmit power paired with a high-dynamic range receiver, it connects directly to compatible Garmin Marine Network chartplotters for fast, shared sonar data with minimal screen delay. Dual-frequency operation and selectable power levels make it equally useful for offshore sportfishing and nearshore structure scouting. Existing GSD 22 users can upgrade using the included adapter for improved performance.

Specifications:

• Improved digital sonar design for superior target definition and deep-water performance
• Transmit power: selectable 600 W, 1 kW, or 2 kW (depending on transducer)
• Dual frequency: discrete 50 kHz and 200 kHz
• High-dynamic range receiver
• Maximum depth: up to 5,000 ft (1,500 m)
• Garmin Marine Network compatible — sonar data shared across all connected chartplotters
• High-speed network connections for ultra-fast screen updates
• GSD 22 upgrade compatible via included adapter
• Compatible chartplotters: GPSMAP 4000, 5000, 6000, 7000, and 8000 series only
• Dimensions: 10.85" L x 8.03" W x 3.22" H (27.56 x 20.40 x 8.18 cm)
• Weight: 4.22 lbs (1.9 kg)
• Waterproof: IPX7 rated

Resources:

• Owner's Manual (PDF)
• Quick Start Guide (PDF)
• Product Brochure (PDF)
• Product Video
