The Garmin GPS 24xd brings multi-band GNSS reception and an integrated heading sensor together in a single compact puck, providing sub-meter position accuracy and dependable heading data at virtually any vessel speed. It connects directly to any NMEA 2000 network, arrives with both pole and surface mounting hardware, and is rated IPX7 waterproof — making it a clean, no-fuss upgrade for chartplotters, autopilots, and AIS units that rely on precise position and heading input.

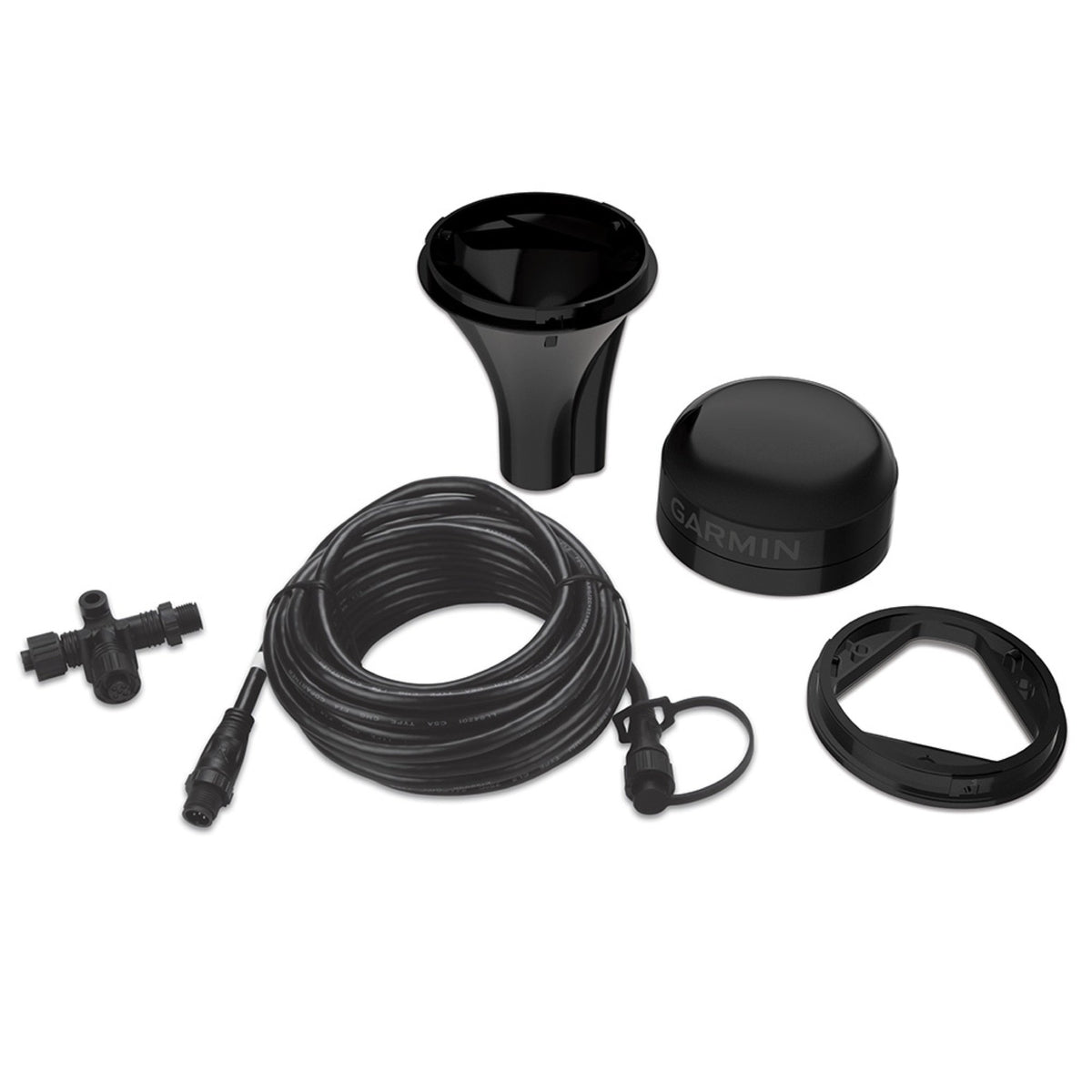

In the Box:

• GPS 24xd NMEA 2000 antenna/receiver
• Pole mount
• Surface mount
• NMEA 2000 backbone/drop cable (6 meters)
• NMEA 2000 T-connector
• Documentation

Specifications:

• Color: Black
• Dimensions (D x H): 3 19/32" x 1 15/16" (91.6 mm x 49.5 mm)
• Weight: 7.1 oz (201 g) white; 6.2 oz (176 g) black
• Cable Length: 19 ft 8" (6 m)
• Temperature Range: -22° to 176° F (-30° to 80° C) white; -22° to 149° F (-30° to 65° C) black
• Case Material: Fully gasketed, high-impact plastic alloy; waterproof to IPX7
• Compass-Safe Distance: 5.9" (150 mm)
• Power Source Input: 9–32 Vdc
• Input Current: 150 mA at 12 Vdc
• NMEA 2000 Load Equivalency Number (LEN): 3 (150 mA)
• Position Accuracy, Typical Marine Use: < 1-meter CEP, < 3 meters at 95%
