The Garmin GNX Wireless Sail Pack 43 is a complete sailing instrument bundle engineered around 43 mm thru-hull fittings, making it a clean drop-in upgrade for any vessel already running Nexus TH43 transducers — no new hull penetrations needed. Wind, speed, depth, and temperature data flow across a plug-and-play NMEA 2000 backbone shared with compatible Garmin chartplotters, while the gWind Wireless 2 masthead transducer cuts mast wiring runs entirely on spars up to 50 feet tall.

Specifications:

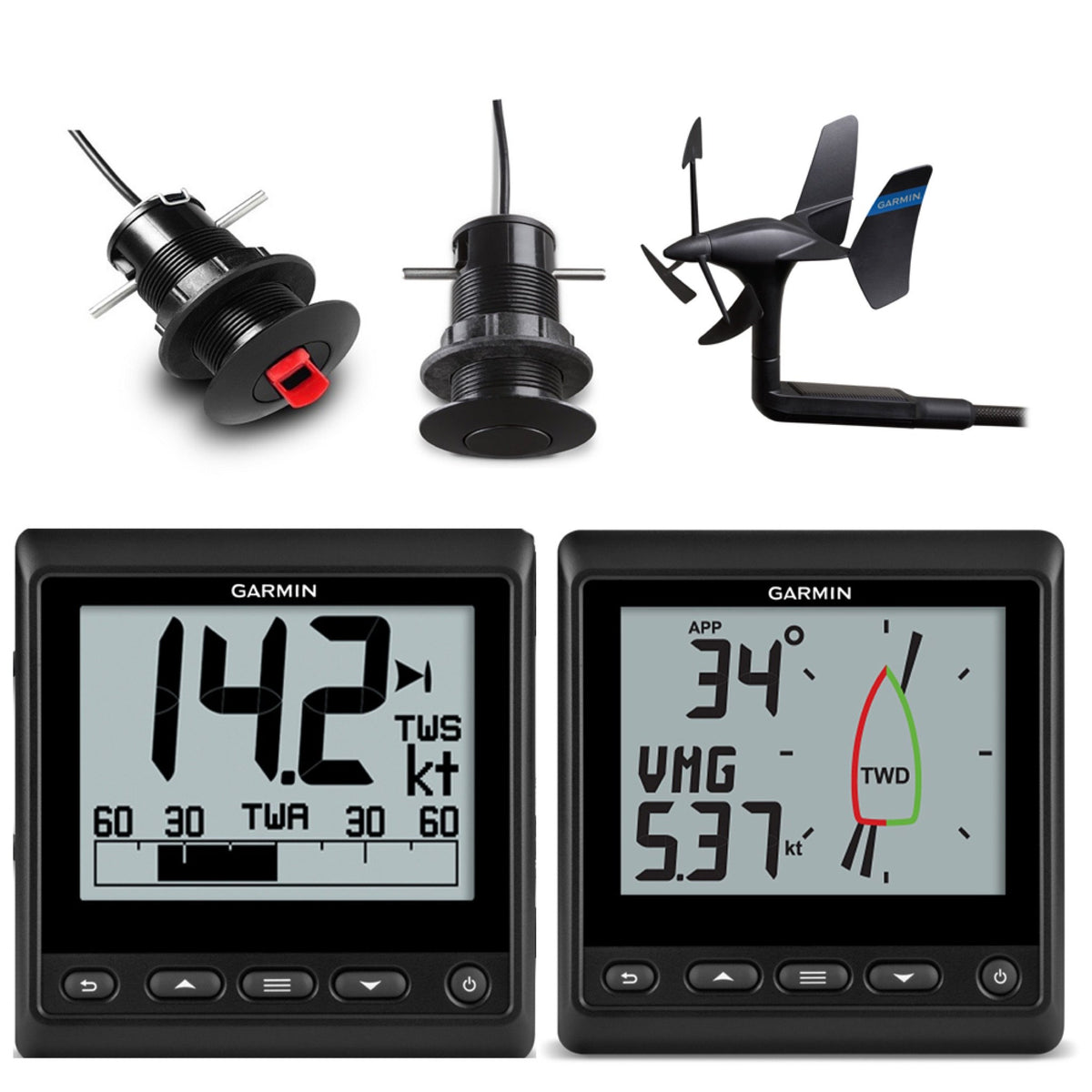

• Bundle includes: GNX Wind instrument, GNX 20 marine instrument, gWind Wireless 2 masthead transducer, GDT 43 thru-hull depth transducer, and GST 43 thru-hull speed and temperature transducer
• Transducer fittings: 43 mm thru-hull; direct replacement for existing Nexus TH43 installations with no additional hull drilling required
• Network: NMEA 2000 plug-and-play integration; each transducer includes an adapter for data sharing with compatible Garmin chartplotters and instrument displays
• GNX Wind display: glass-bonded backlit monochrome LCD with customizable backlight colors; simultaneously shows 2 data fields plus a digital wind rose
• GNX Wind data parameters: true and apparent wind, steering guidance, boat speed, and 15+ marine parameters covering wind, speed, and navigation
• GNX Wind power consumption: 350 mW daytime (backlight off); 400 mW nighttime (mid-level backlight)
• GNX Wind wireless: ANT technology links to the gWind Wireless 2 and to a compatible quatix 3 GPS marine smartwatch for wrist-based wind data streaming
• GNX 20 display: glass-bonded monochrome LCD with anti-glare lens coating; high-contrast digits scalable up to 36 mm; black digits on white or color background
• GNX 20 data parameters: water depth, boat speed through water, water temperature, and 50+ marine and boat parameters via NMEA 2000
• GNX 20 display configurations: 5 modes — single, dual, triple function, gauge, and graph; sailboat and powerboat user profiles available
• GNX 20 power consumption: 25 mA / 350 mW daytime (backlight off); 400 mW nighttime (mid-level backlight)
• gWind Wireless 2: wireless ANT transmission; supports masts up to 50 feet tall; Nexus twin-fin technology with 3-bladed propeller for accurate wind speed and stable wind angle in light air
• gWind Wireless 2 compatibility: GNX Wind instrument and compatible Garmin GPSMAP chartplotters
• GST 43: thru-hull speed and temperature transducer with 43 mm fitting
• GDT 43: thru-hull depth transducer with 43 mm fitting

In the Box:

• gWind Wireless 2 transducer with mast bracket
• GNX Wind instrument
• GNX 20 instrument
• GST 43 thru-hull speed and temperature transducer
• GST 10 adapter cable
• GDT 43 thru-hull depth sensor
• NMEA 2000 adapter
• NMEA 2000 power cable
• NMEA 2000 terminators
• 2 x NMEA 2000 drop cable (2 meters each)
