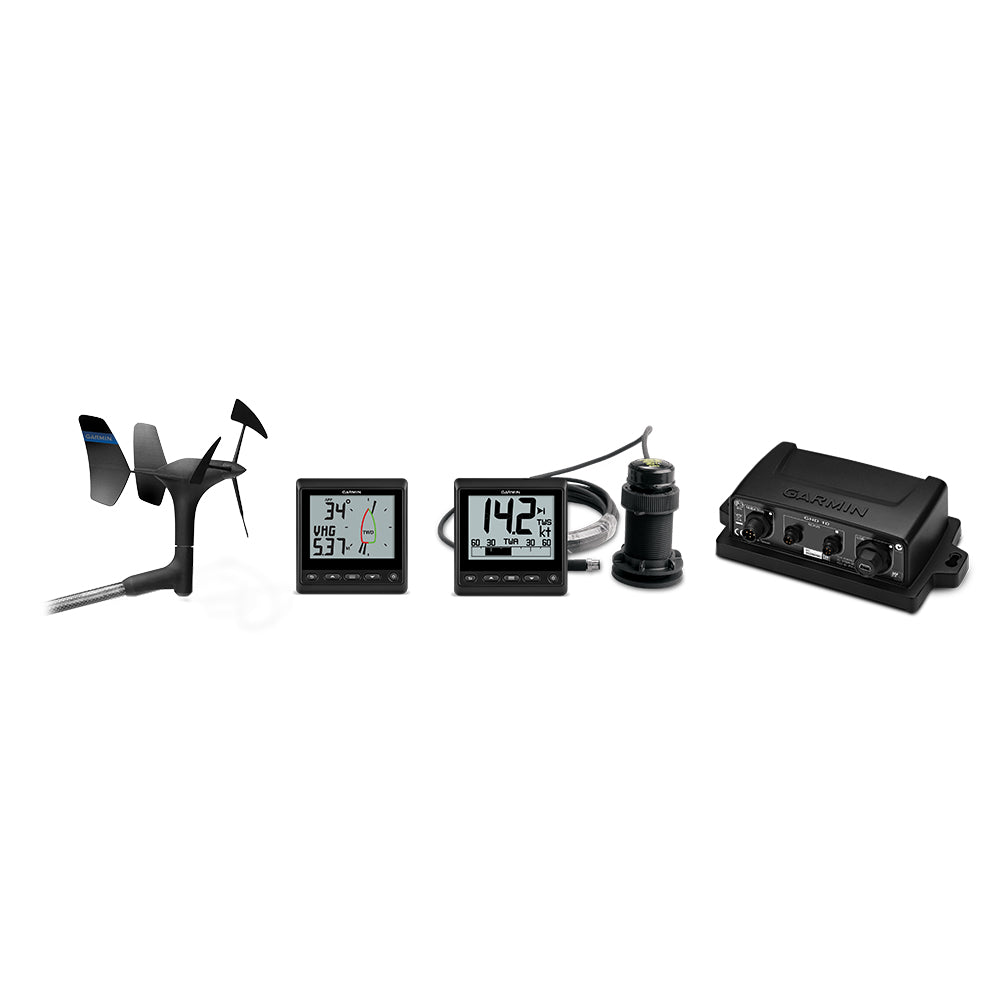

The Garmin GNX Wired Sail Pack 52 bundles everything a performance sailor needs to monitor wind and water conditions in one cohesive NMEA 2000 system. The pack pairs the GNX Wind and GNX 20 instruments with the gWind Wired transducer and Airmar DST810 thru-hull smart transducer, delivering true and apparent wind data, depth, speed, temperature, heel/trim, and pitch/roll — all on high-contrast monochrome LCD displays with plug-and-play installation across Nexus, Garmin chartplotters, NMEA 2000, and USB.

GNX Wind Marine Instrument

The GNX Wind provides wind data on a glass-bonded, backlit monochrome LCD display with customizable backlight colors. Connected via NMEA 2000, it shows two data fields plus a digital wind rose simultaneously, displaying true and apparent wind data, steering guidance, boat speed, and more. Over 15 marine parameters covering wind, speed, and navigation are configurable through fully customizable user profiles. Power draw is just 350 mW in daylight (no backlight) and 400 mW at night (mid-level backlight), making it well-suited for sailboats. The GNX Wind also connects wirelessly via ANT technology to a quatix 3 GPS marine smartwatch to stream wind data directly to your wrist.

gWind Wired Transducer

The gWind Wired uses twin-fin technology paired with a 3-bladed propeller — not a cups design — for consistent efficiency across wind speeds. The 3-bladed propeller improves True Wind Speed (TWS) accuracy in lighter air, while the twin-fin design delivers a more stable True Wind Angle (TWA). Optic reading technology provides superior accuracy at low wind speeds and excellent linearity.

GNX 20 Marine Instrument

The GNX 20 features a glass-bonded display with anti-glare lens coating, presenting black digits on a white or color background for strong readability day or night. Digits are scalable up to 36 mm and the display covers water depth, boat speed through the water, water temperature, and more than 50 marine and boat parameters.

Airmar DST810 Thru-Hull Smart Transducer

The DST810 is a multisensor thru-hull transducer that delivers precise depth (to 330 feet), speed, and temperature data alongside attitude sensing for heel/trim and pitch/roll inputs — all fed to the NMEA 2000 network and the GNX 20 instrument. It operates at 235 kHz with a fan-shaped beamwidth of 10x44 degrees and outputs a fast 5 Hz water speed signal. Bluetooth connectivity enables DST810 calibration through Airmar's Cast app, and advanced speed calibration supports multiple heel angles and speeds.

Specifications:

• Includes: GNX Wind instrument, GNX 20 instrument, gWind Wired transducer, Airmar DST810 thru-hull smart transducer
• GNX Wind and GNX 20 displays: glass-bonded backlit monochrome LCD with anti-glare lens coating
• GNX Wind backlight: customizable colors; 350 mW daylight (no backlight), 400 mW nighttime (mid-level backlight)
• GNX Wind data: true and apparent wind, steering guidance, boat speed, digital wind rose, 2 simultaneous data fields; 15+ marine parameters
• GNX Wind wireless: ANT technology compatible with quatix 3 GPS marine smartwatch
• GNX 20 digit height: scalable up to 36 mm
• GNX 20 parameters: water depth, boat speed through water, water temperature, 50+ marine and boat parameters
• gWind Wired design: 3-bladed propeller with twin-fin technology; optic reading for low-speed accuracy and linearity
• DST810 max depth: 330 feet
• DST810 operating frequency: 235 kHz
• DST810 beamwidth: 10x44 degrees (fan-shaped)
• DST810 water speed output: 5 Hz
• DST810 attitude sensing: heel/trim and pitch/roll inputs
• DST810 calibration: Bluetooth connectivity via Airmar Cast app; advanced speed calibration at multiple heel angles and speeds
• Network compatibility: NMEA 2000, Nexus, Garmin chartplotters, USB; plug-and-play installation

In the Box:

• gWind transducer
• GNX 20 marine instrument
• GNX Wind marine instrument
• GND 10 black box bridge
• Airmar DST810 thru-hull smart transducer
• 3 NMEA 2000 drop cables (2 meters each)
• NMEA 2000 power cable
• 5 NMEA 2000 T-connectors
• NMEA 2000 terminators
• Mast cable with female connector (25 meters)
• Nexus female field-installable connector
• Mast bracket
• Mounting hardware
• Documentation
