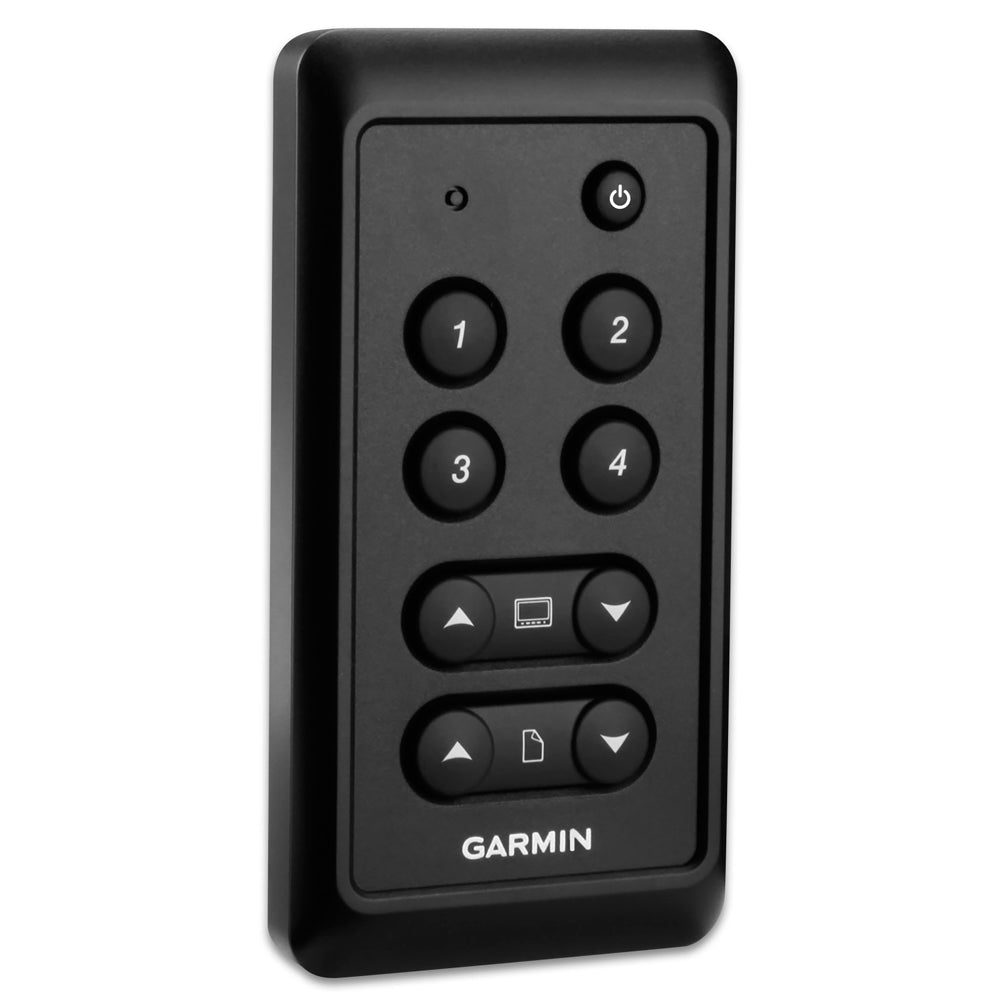

The Garmin GNX Keypad puts remote control of a compatible GNX instrument display right at your fingertips from anywhere at the helm. Four dedicated preset buttons load saved display configurations instantly, while a single keystroke adjusts backlight brightness across every connected display simultaneously. The keypad draws power directly from the NMEA 2000 network, flush-mounts for a clean installation, and carries an IPX7 water rating to handle the demands of open-water conditions.

Specifications:

• Physical dimensions: 59 x 115 x 15 mm (2.32" x 4.53" x 0.59")
• Weight: 95 g (3.4 oz)
• Water rating: IPX7
• Temperature range: -15° to 70°C (5° to 158°F)
• Voltage range: 9–16 V (via NMEA 2000)
• Power consumption: 0.2 W
• Mounting options: Flush mount
• NMEA 2000® certified: Yes
• NMEA 0183 compatible: No
• Auto-on: Yes

Compatible Devices:

• Garmin GNX 120
• Garmin GNX 130
