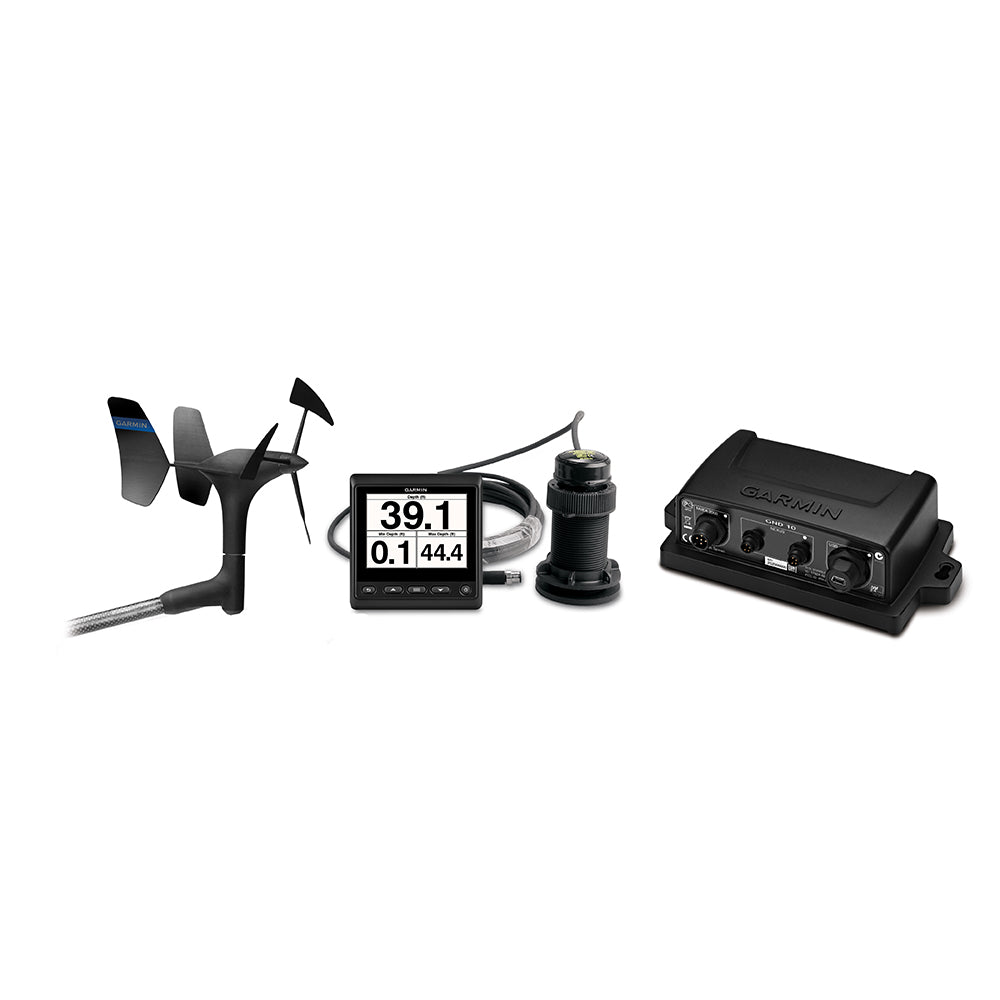

The Garmin GMI™ Wired Start Pack 52 gives sailors and powerboaters a complete, scalable onboard instrument network in a single bundle. It combines the GMI 20 marine instrument display with the gWind™ transducer and AIRMAR® DST810 thru-hull smart transducer, putting real-time wind, depth, water speed, and temperature on a plug-and-play NMEA 2000® backbone that's ready to grow as your system expands.

The GMI 20 centers on a 4" glass-bonded color display with an anti-glare finish and 170-degree viewing angle, with extra-large digits that stay readable from across the cockpit. Three night-visibility color schemes — red/black, green/black, and standard night mode — plus a dimmer control keep the display usable after dark. Auto-scroll cycles through data pages hands-free, a genuine advantage when instruments are mounted in multiple locations. More than 100 marine and vessel parameters are supported, and built-in profiles for powerboat, sailboat, fishing, and engine/fuel use are fully customizable. The GMI 20 draws power directly from the NMEA 2000 network, keeping wiring straightforward.

The gWind transducer uses a twin-fin housing with a 3-bladed propeller and optical reading technology to deliver stable True Wind Angle (TWA) and accurate True Wind Speed (TWS) in both light air and heavy conditions — performance advantages the propeller design holds over cup-style sensors across the full wind-speed range.

The AIRMAR DST810 thru-hull smart transducer handles depth to 330 feet, outputs water speed at 5 Hz, and operates at 235 kHz through a 10 × 44-degree fan-shaped beam. It also feeds heel/trim and pitch/roll attitude data to the NMEA 2000 network. Bluetooth® connectivity lets you calibrate the DST810 wirelessly through the AIRMAR CAST™ app, with advanced calibration available across multiple heel angles and speeds.

Specifications:

• Display: 4" bright color glass-bonded lens with anti-glare finish
• Viewing angle: 170 degrees
• Supported parameters: depth, speed, wind, and 100+ marine/vessel parameters
• Night mode color schemes: red/black, green/black, and standard night mode with dimmer control
• Auto-scroll paging: yes
• Customizable profiles: powerboat, sailboat, fishing, engine/fuel, and user-specified
• GMI 20 power source: NMEA 2000 network
• gWind transducer design: twin-fin with 3-bladed propeller and optical reading
• DST810 maximum depth: 330 feet
• DST810 water speed output rate: 5 Hz
• DST810 operating frequency: 235 kHz
• DST810 beamwidth: 10 × 44 degrees (fan-shaped)
• DST810 data outputs: depth, speed, temperature, heel/trim, pitch/roll
• DST810 calibration: Bluetooth® wireless via AIRMAR CAST™ app; advanced multi-angle and multi-speed calibration supported
• Network: NMEA 2000® plug-and-play; compatible with Garmin chartplotters

In the Box:

• GMI™ 20 marine instrument
• gWind™ transducer
• GND™ 10 black box bridge
• AIRMAR DST810 thru-hull smart transducer
• 2× NMEA 2000® drop cable (2 meters each)
• NMEA 2000 power cable
• 4× NMEA 2000 T-connectors
• NMEA 2000 terminators
• Mast cable with female connector (25 meters)
• Nexus network cable (5 m, straight connector)
• Nexus female field-installable connector
• Mast bracket
• Mounting hardware
• Documentation
