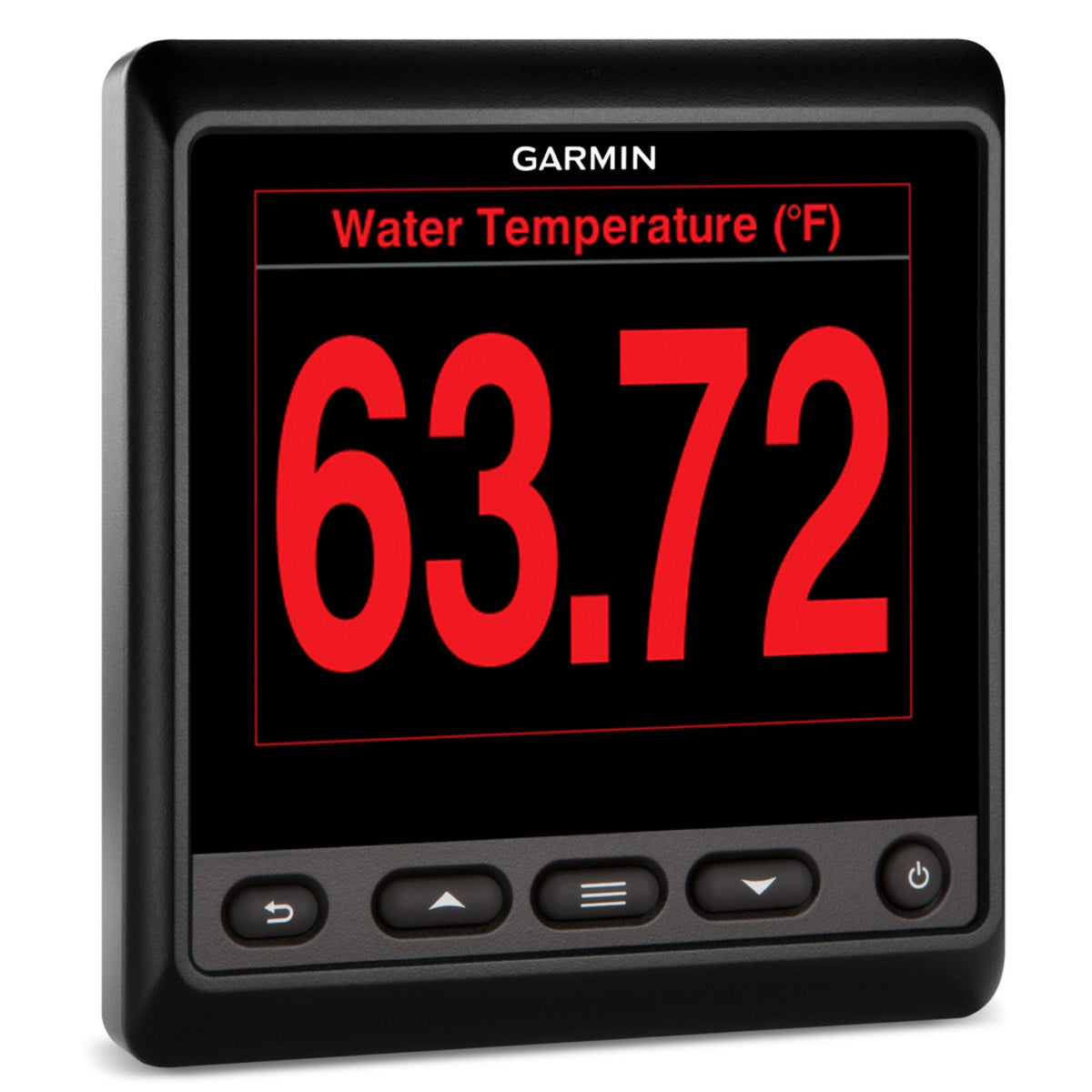

The Garmin GMI 20 is a 4-inch color marine instrument display designed for power and sail boats alike, delivering depth, speed, wind, and more than 100 other marine and vessel parameters on a glass-bonded, anti-glare lens that stays fog-free and readable from wide angles. Extra-large digits, a 170-degree viewing arc, and selectable night modes — red/black, green/black, or full color — keep critical data visible in any light condition. A dimmer control, auto-scroll page cycling, and four customizable default profiles (powerboat, sailboat, fishing, and engine/fuel) let you configure the display around your workflow. Two included trim snap covers allow the GMI 20 to blend seamlessly with GPSMAP 500/700 series, GPSMAP 8000 Glass Helm series, and legacy Garmin chartplotters, and the unit draws power directly from the NMEA 2000 network — no separate power wire required.

Specifications:

• Dimensions without sun cover (H x W x D): 110 x 115 x 30 mm (4.33" x 4.53" x 1.18")
• Dimensions with sun cover (H x W x D): 115 x 120 x 35.5 mm (4.53" x 4.72" x 1.40")
• Weight without sun cover: 247 g (8.71 oz)
• Weight with sun cover: 283 g (9.98 oz)
• Temperature range: 5°F to 158°F (-15°C to 70°C)
• Compass-safe distance: 209 mm (8.25")
• Case material: Polycarbonate, waterproof to IPX7
• Power usage: 2.5 W max
• Unit max voltage: 32 Vdc
• NMEA 2000 input voltage: 9–16 Vdc
• NMEA 2000 load equivalency number (LEN): 6 (300 mA at 9 Vdc)

In the Box:

• GMI 20 marine instrument display
• Black trim piece snap cover
• Protective cover
• Flush mount gasket and hardware
• NMEA 2000 T-connector
• NMEA 2000 drop cable
• Documentation

Resources:

• Owner's Manual (PDF)
• Installation Guide (PDF)
• Quick Start Guide (PDF)
