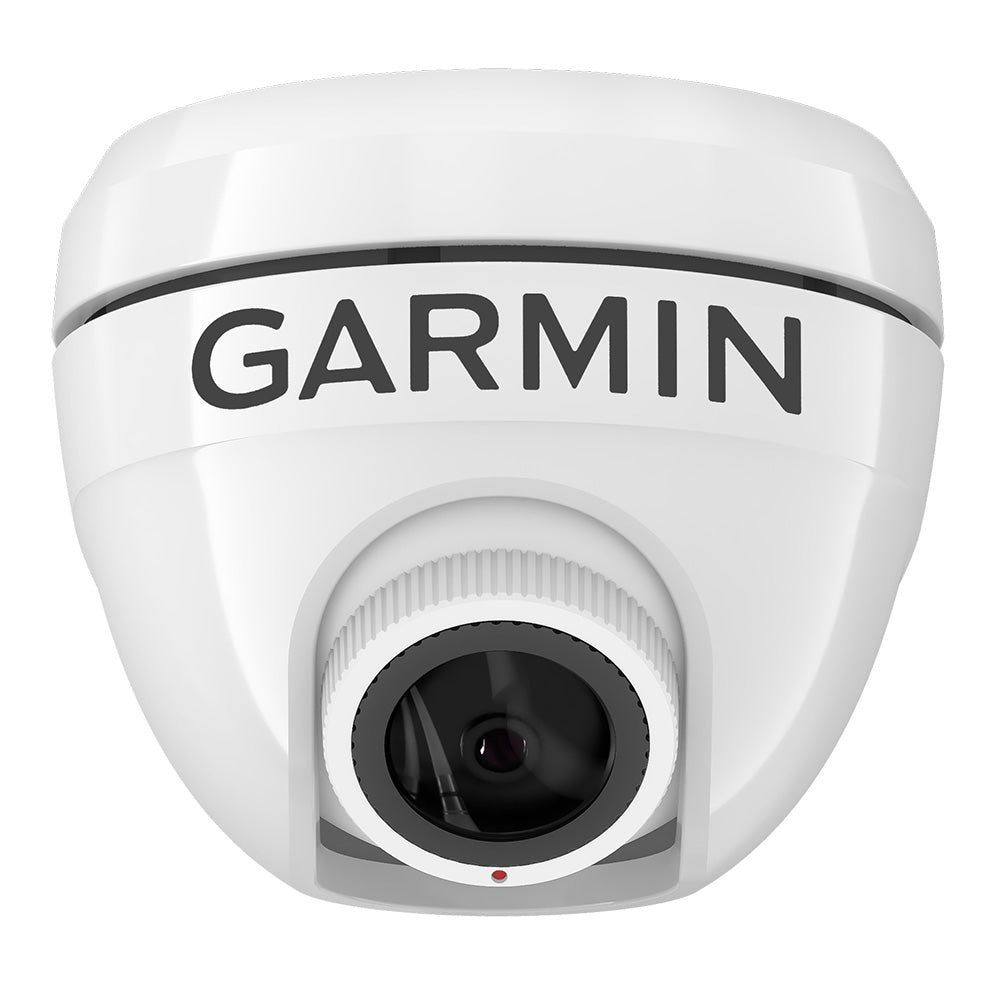

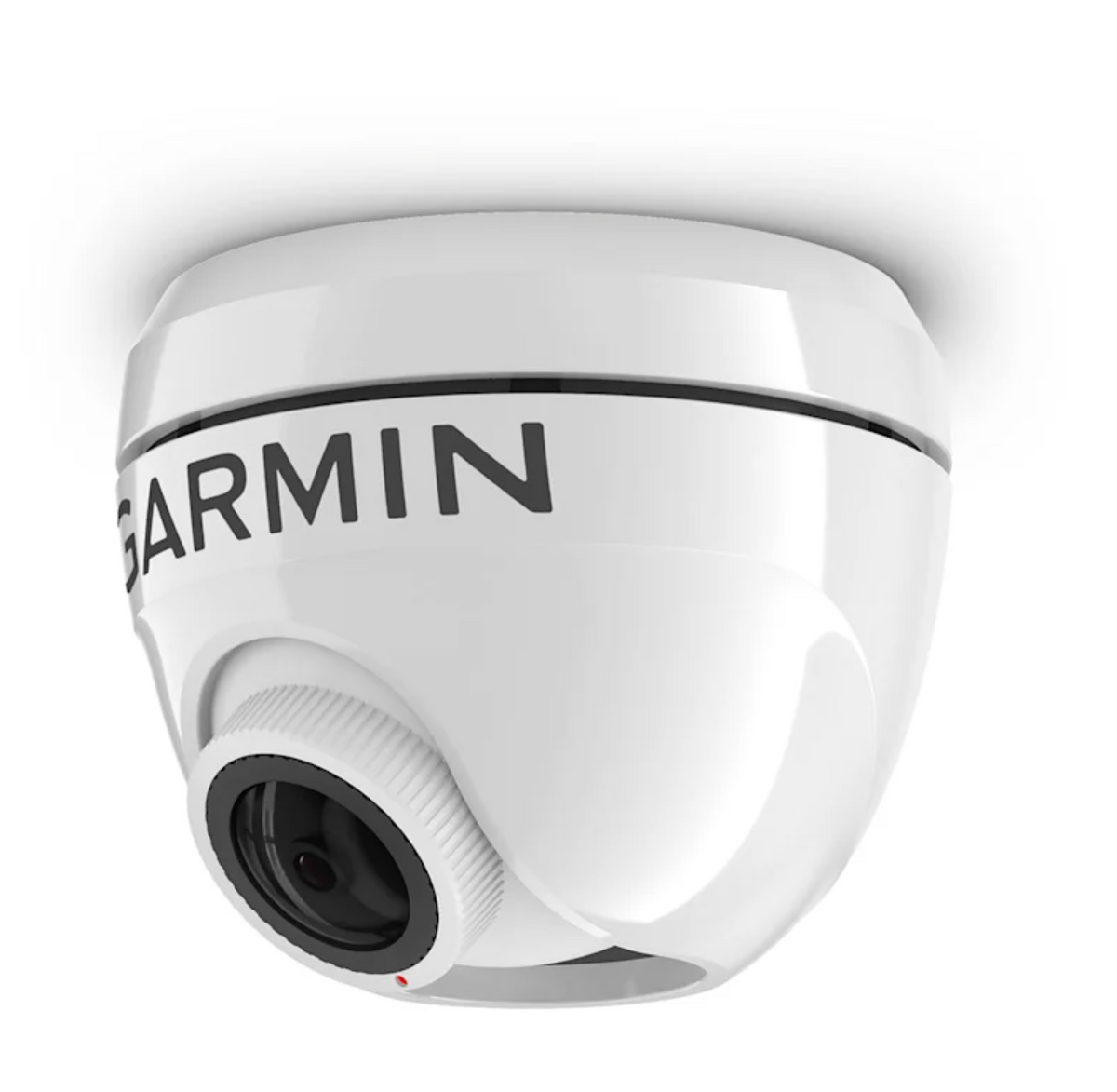

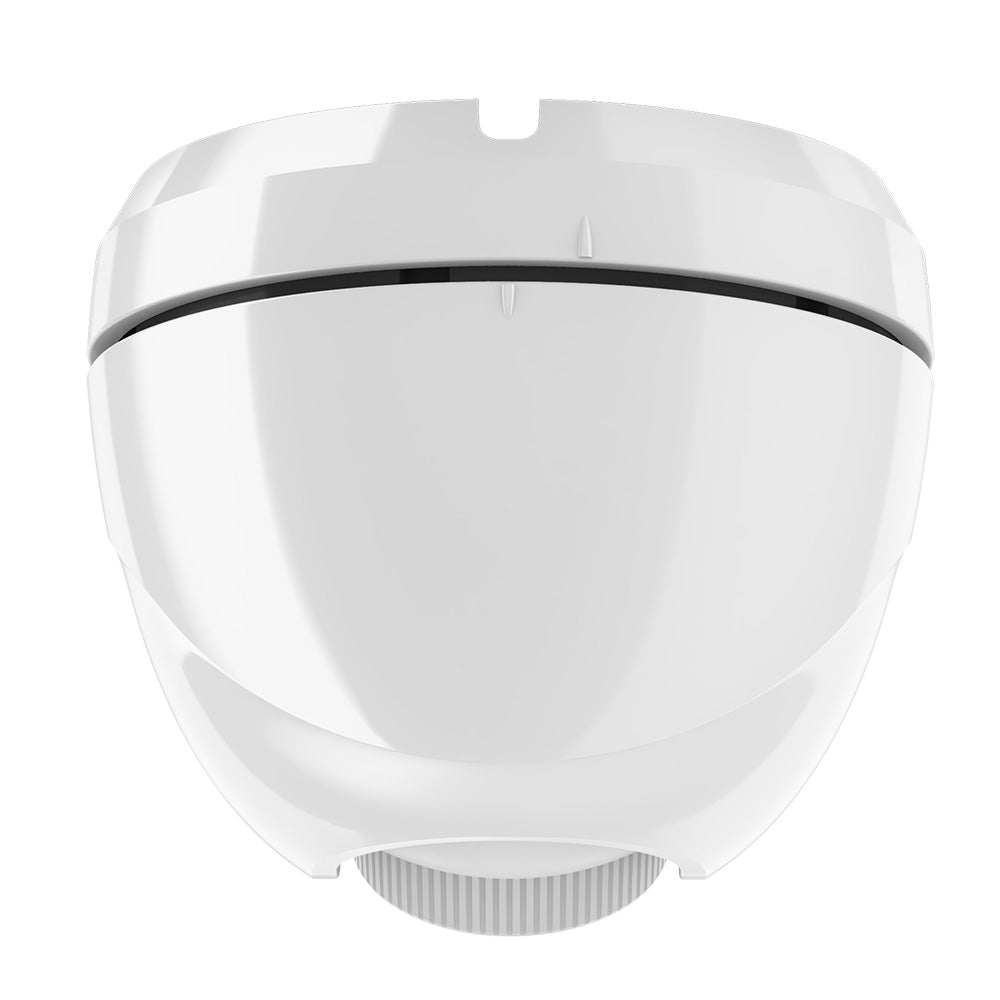

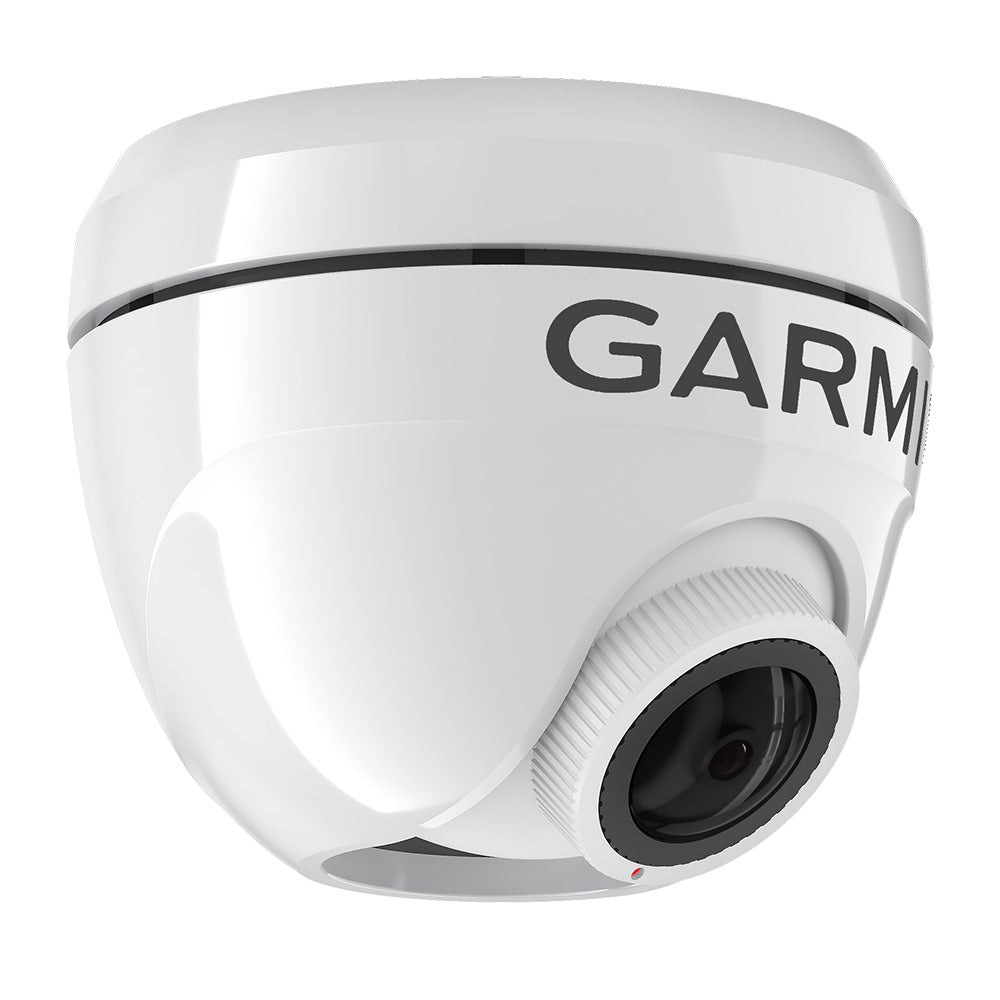

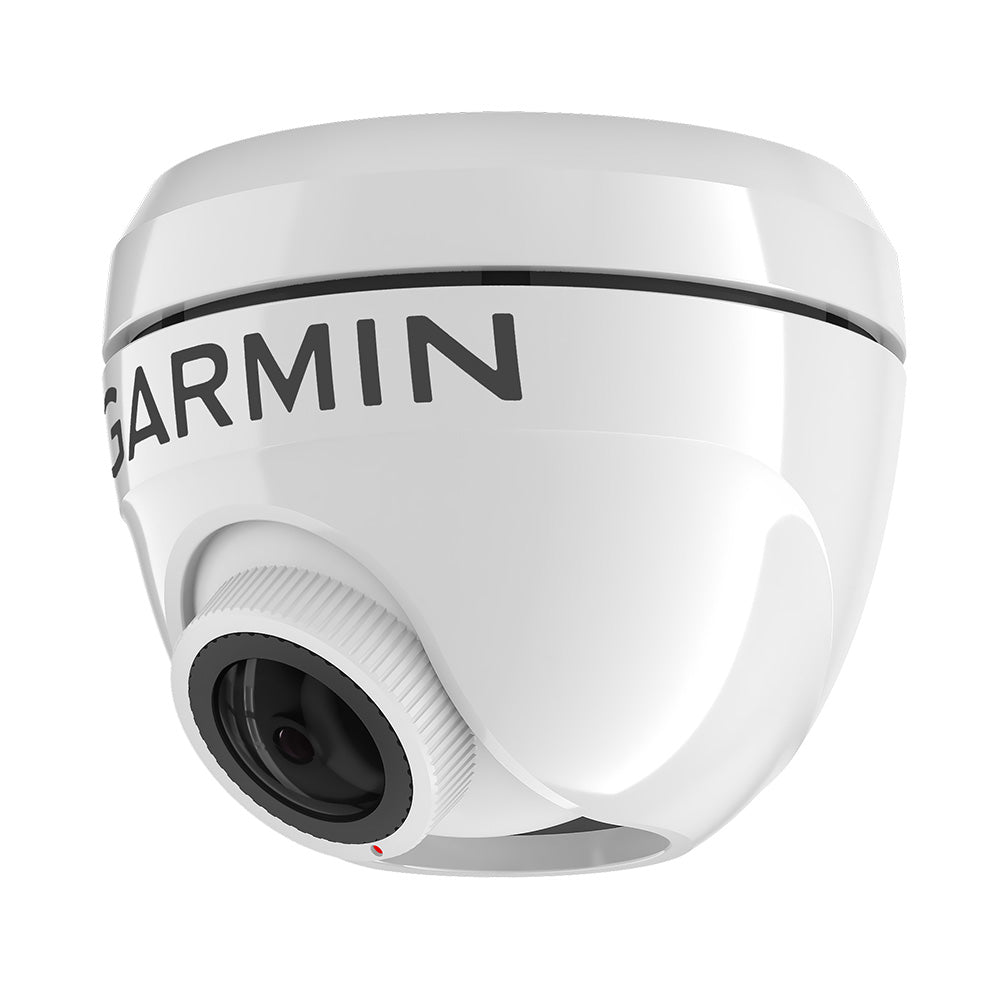

The Garmin GC 245 Surface Mount Camera streams 1080p video directly to your helm display, giving you the situational awareness to dock and maneuver in tight quarters with confidence. Augmented reality overlays — including boatbuilder-calibrated distance markers and user-defined guidance lines — work alongside digital zoom and pan so you always know what's around you. The camera integrates into the Garmin marine network or Garmin BlueNet™ network via plug-and-play setup and mounts dome-up or dome-down to fit your installation.

Customize guidance lines to steer clear of obstacles in close-quarters maneuvering, and rely on OEM-calibrated distance markers for precise proximity feedback (professional calibration required). Three selectable views — FishEye, standard, and BirdsEye (OEM calibrated, professional calibration required) — all deliver strong low-light performance, while up to four simultaneous camera feeds can be displayed on a compatible MFD, networked chartplotters, or a custom combo page.

Note: 1080p resolution is available on select chartplotters only. Engineering enhancements are ongoing and may not be reflected in pictures, videos, or specifications.

In the Box:

• GC 245 surface mount camera
• GVA 10 with integrated power and network cables
• Network adapter cable (500 mm)
• Video coaxial cable (8 m)
• Mounting hardware
• Documentation

Specifications:

• Unit dimensions: 2.4" x 2.4" x 2.2" (6.1 x 6.1 x 5.1 cm)
• Weight: 3.25 oz (92 g)
• Hardwire power: 12V/24V
• Operating current: 300 mA at 12VDC; 200 mA at 24VDC
• Power consumption: 4.5 W
• Connection to chartplotter: IP
• Mounting options: Ball-up or ball-down
• Rugged housing: Yes
• Setup: Plug-and-play
• Water rating: IPX7
• Video resolution: 1920 x 1080 pixels (select chartplotters only)
• Video output: H.264 over GMN and BlueNet™
• Images: Standard and reverse
• Selectable views: FishEye, standard, BirdsEye (OEM calibrated)
• Augmented reality features: Distance markers (OEM calibrated) and guidance lines (user setup)
• Viewing angle: 160°H / 90°V
• Operating temperature: -20°C to +60°C
• Scanning system: Progressive scan
• Day/night operation: RGB mode full-time

Available in White and Black -- choose your option below.
