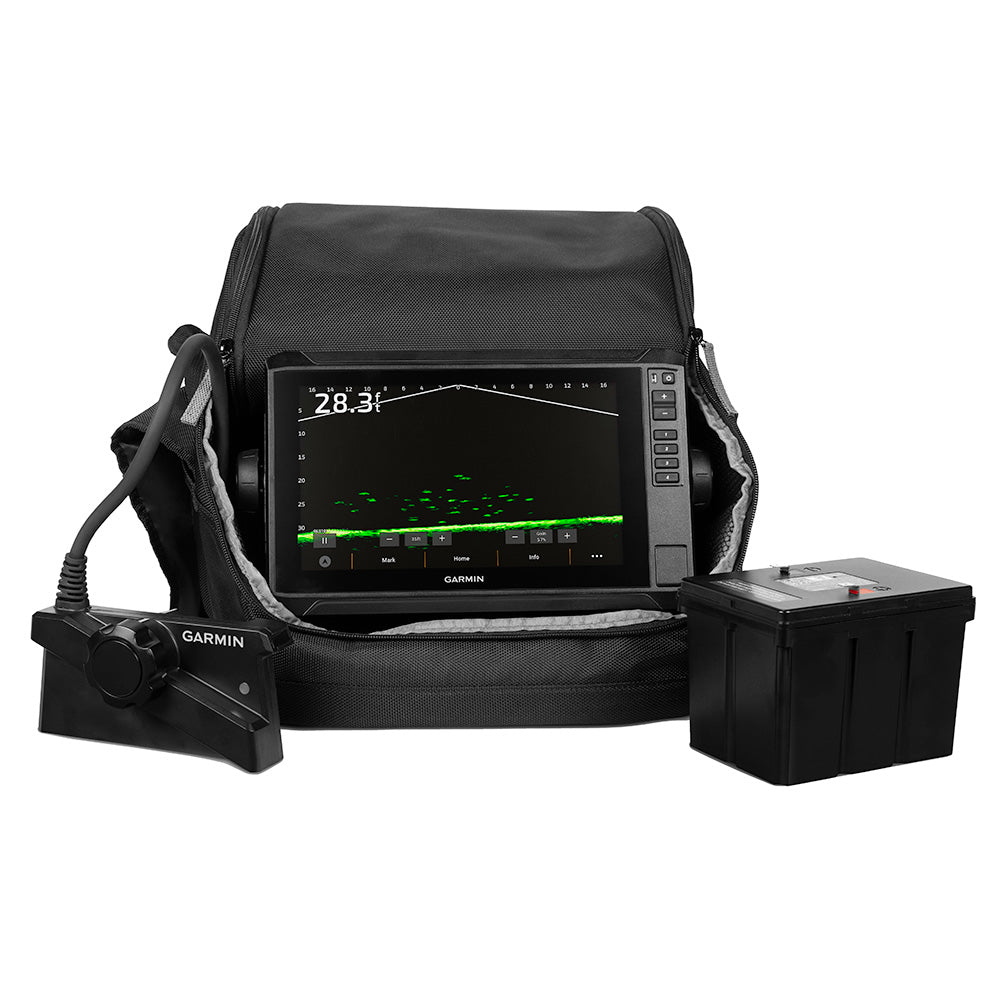

The Garmin ECHOMAP UHD2 93SV LiveScope Plus Ice Fishing Bundle LI is a complete, self-contained ice fishing sonar system built around the 9-inch ECHOMAP UHD2 93sv touchscreen chartplotter. The bundle pairs the next-generation LiveScope Plus system — featuring the LVS34-IF transducer and GLS 10 sonar module — with a 16.5Ah lithium-ion battery and a rugged portable bag, giving you live sonar views up to 200 feet forward or directly below the ice with sharper target separation, reduced noise, and fewer artifacts than the previous LiveScope generation.

Features:

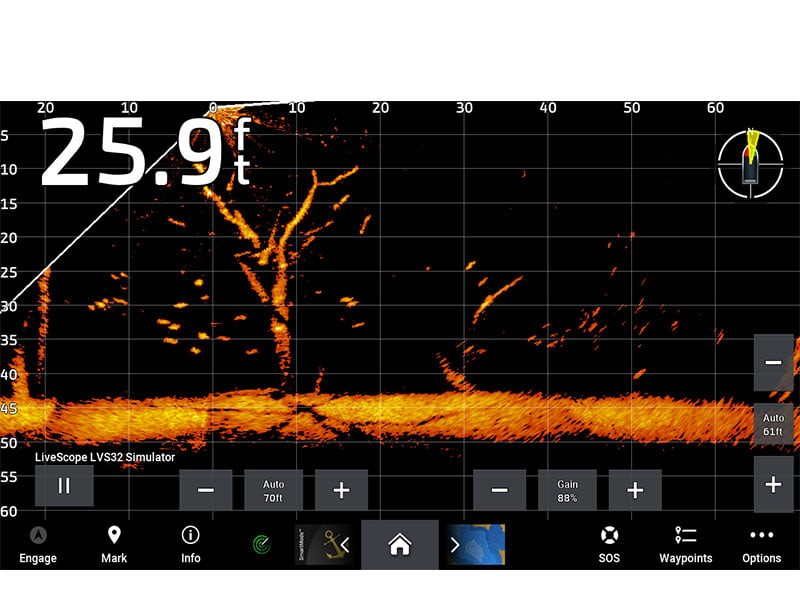

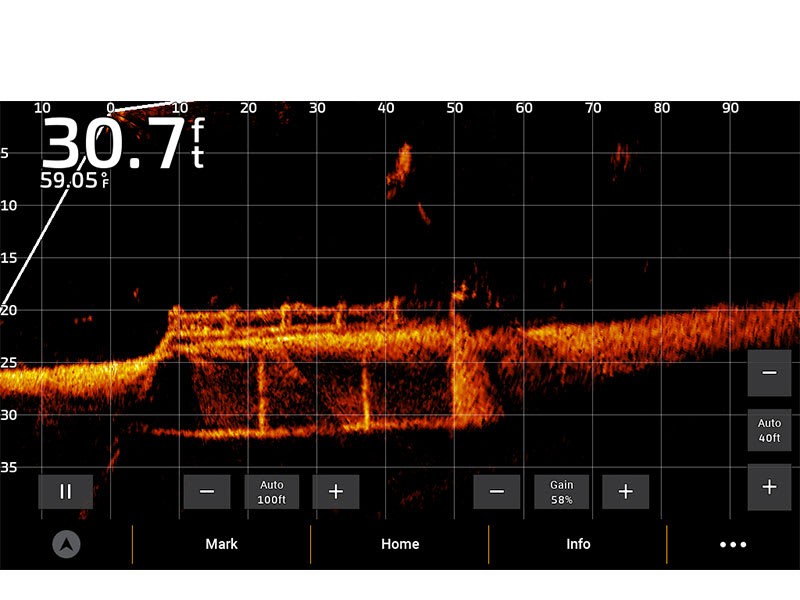

• LiveScope Forward mode shows live sonar up to 200 ft in any direction around and below the ice to locate fish schools and plan your next drill location

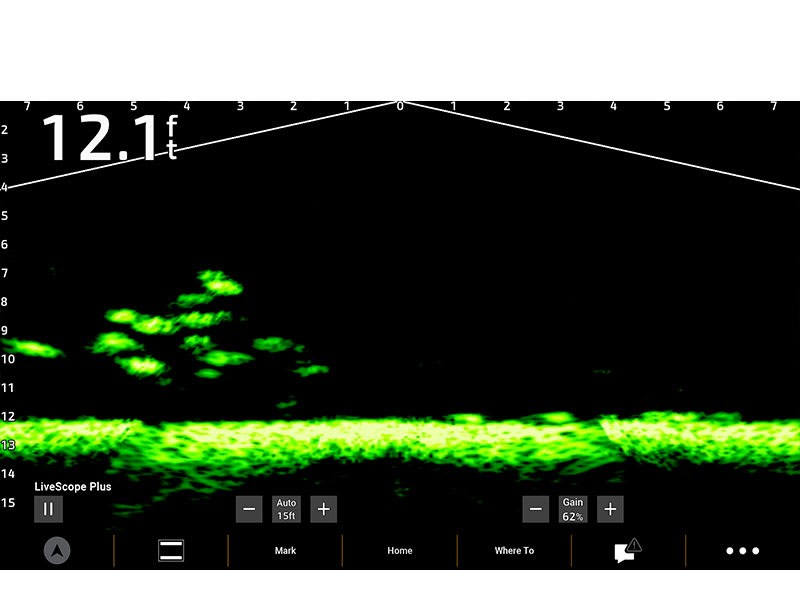

• LiveScope Down mode delivers real-time images beneath the ice so you can watch fish react to your jig in real time
• Improved target separation, sensitivity, and reduced sonar artifacts compared to the prior LiveScope generation

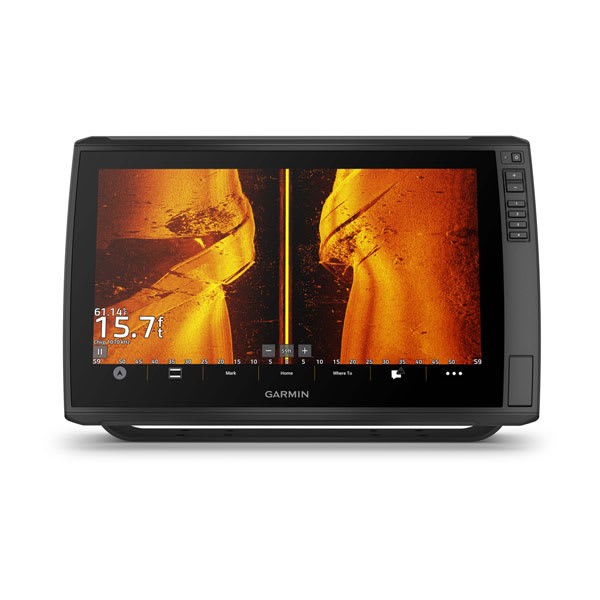

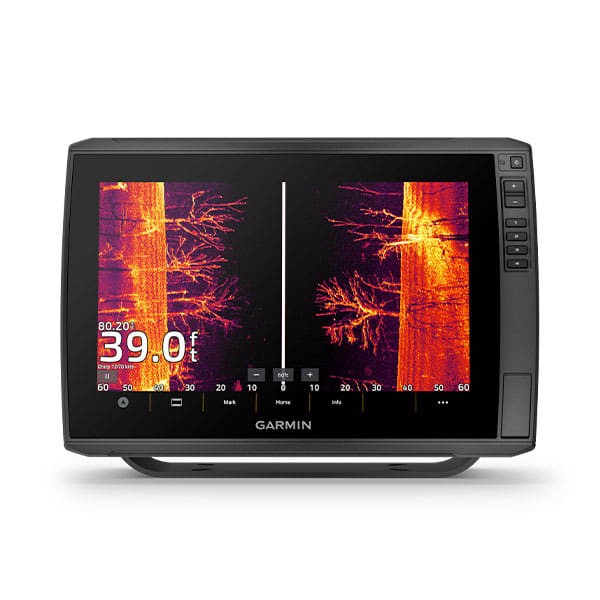

• 9-inch ECHOMAP UHD2 touchscreen with keyed assist input and IPX7 waterproof rating
• LVS34-IF transducer cable stays flexible at freezing temperatures
• Preloaded Garmin Navionics+ maps covering more than 23,000 U.S. lakes with detailed inland and coastal charting
• Auto Guidance+ available for download through the ActiveCaptain app
• Customizable display pages combining sonar, flasher, and map views
• 16.5Ah lithium-ion battery provides extended on-ice runtime without added weight
• Rugged portable carrying case for transport between holes and off-season storage
• Multi-band, multi-constellation GPS support: GPS, GLONASS, Galileo, BeiDou, and WAAS
• NMEA 2000 compatible with a 10 Hz built-in receiver

Specifications:

• Dimensions: 13.8 x 12.2 x 13.0 in. / 35 x 31 x 33 cm
• Display Size: 7.8 x 4.5 in. / 19.8 x 11.5 cm (9.0 in. / 22.9 cm diagonal)
• Display Resolution: 1024 x 600 pixels
• Display Type: WVGA, IPS
• Input: Touchscreen with Keyed Assist
• Waterproof Rating: IPX7
• Weight: 22.5 lbs / 10.2 kg
• Battery Type and Capacity: Lithium-ion, 16.5Ah
• Included Transducer: LiveScope Plus System with LVS34-IF
• Transducer Mounting: Pole mount
• Bag Size: Extra Large (XL)
• GPS: Yes — GPS, GLONASS, Galileo, BeiDou, WAAS, Multi-Band Multi-Constellation
• Built-in Receiver: Yes, 10 Hz
• NMEA 2000 Compatible: Yes
• Accepts Data Cards: 1 microSD card, 32 GB maximum
• Waypoints: 5,000
• Track Points: 50,000
• Saved Tracks: 50
• Navigation Routes: 100
• Built-in Auto Guidance+: Yes (downloadable via ActiveCaptain app)
• Garmin Navionics+ Inland and Coastal: Yes
• Garmin Navionics+ Inland: Yes

In the Box:

• ECHOMAP UHD2 chartplotter
• LVS34-IF transducer
• GLS 10 sonar module
• Ice fishing pole mount
• Tilt mount
• Power cable
• Portable fishing bag with handle
• Lithium-ion battery
• Battery charger
• Documentation
