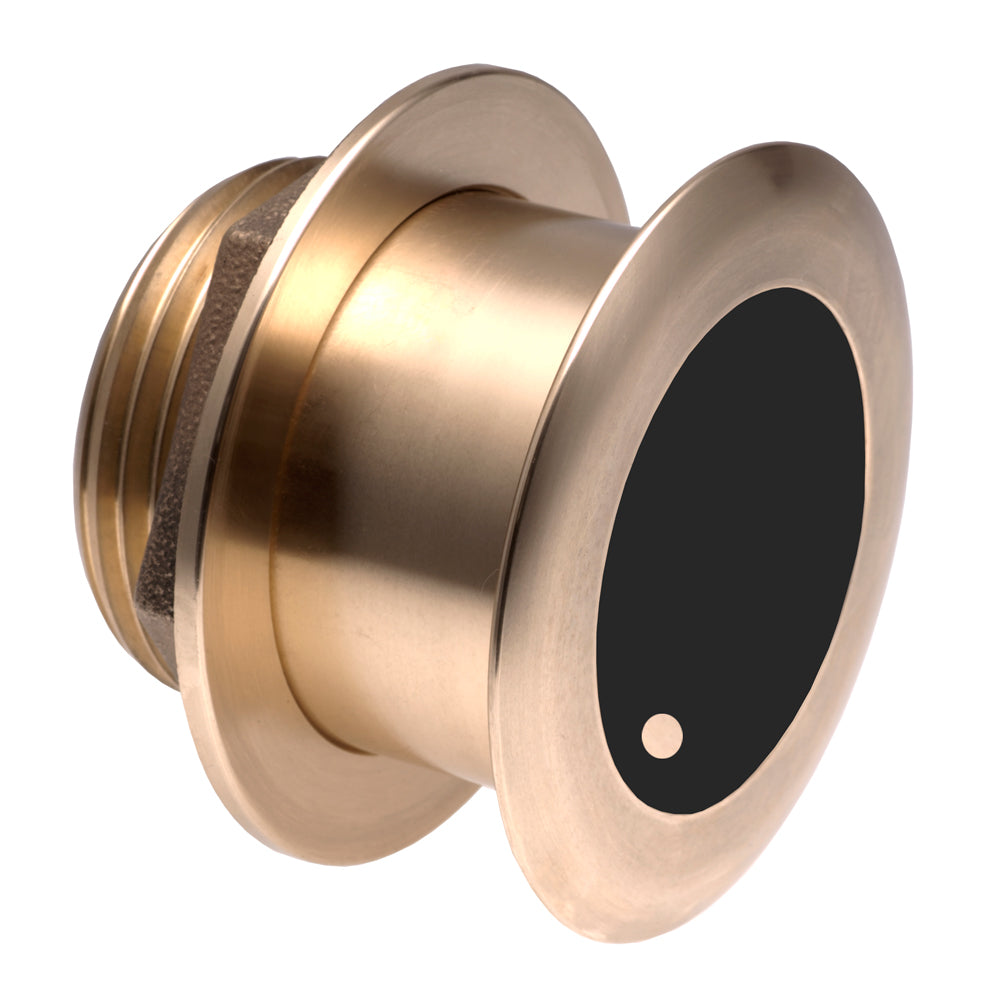

The Airmar B175HW is a flush-mount bronze thru-hull transducer that delivers 1 kW of power without requiring a fairing block. Its low-profile housing protrudes less than 1/4 inch below the hull, making it safe to rest on trailer rollers or bunks. A factory-tilted internal element compensates for hull deadrise, removing the need for additional hardware. Well-suited to fiberglass and wood hulls, this 8-pin unit measures depth to 600 feet while simultaneously tracking water temperature.

Specifications:

• Model: Airmar B175HW
• Housing material: Bronze
• Mount type: Thru-hull, flush mount
• Hull protrusion: Less than 1/4 inch
• Element tilt: 20°
• Connector: 8-pin
• Power output: 1 kW
• Operating frequency: 150–250 kHz
• Beamwidth: 25°
• Compatible hull deadrise: 16–24°
• Maximum depth: 600 ft
• Sensing: Depth and temperature
• Compatible hull materials: Fiberglass, wood
• Fairing block required: No
• Includes: Transducer and installation instructions
