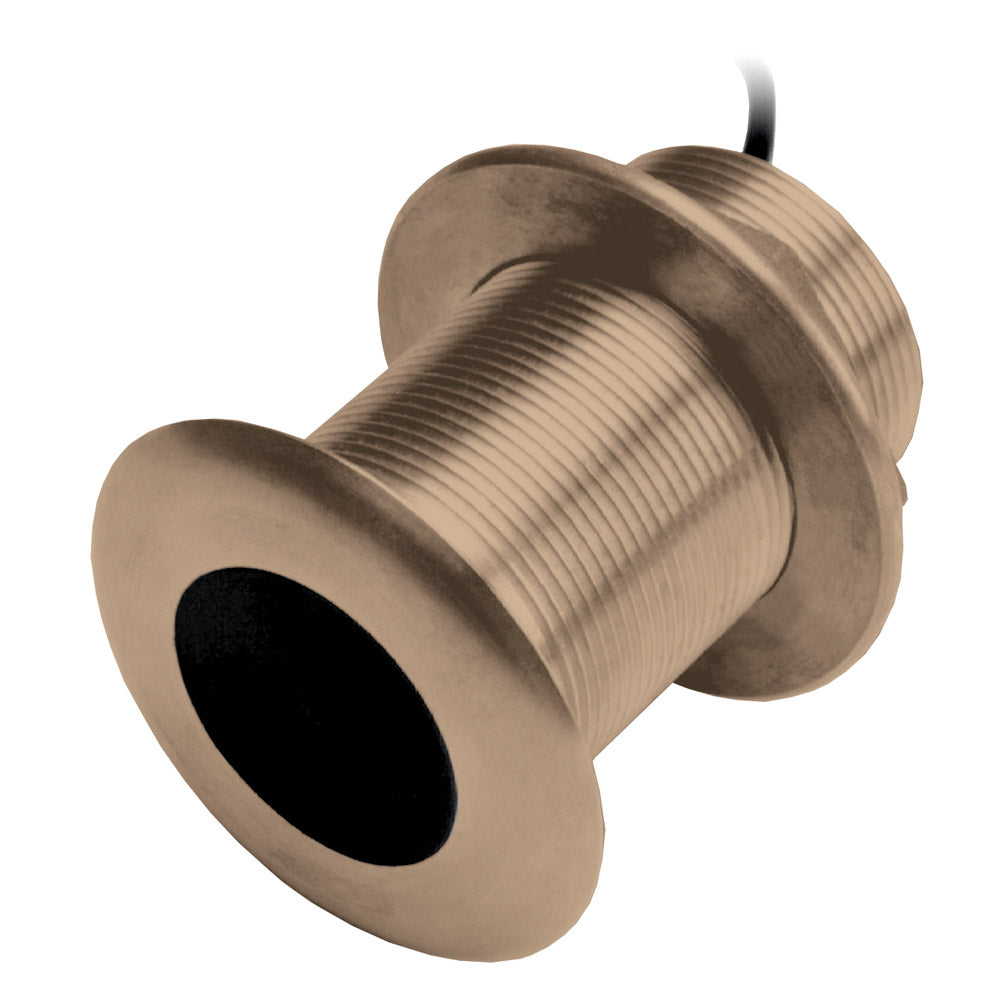

The Garmin B75H is a flush-mounted bronze thru-hull transducer built on the Airmar B75H platform, featuring a 20° tilted internal element that accommodates hull deadrises from 16–24° without requiring a fairing block. Rated at 600W and capable of reaching depths to 800 feet, it suits fiberglass and wood hulls and supports low, medium, and high frequency operation for broad sonar flexibility. Wired with an 8-pin connector for straightforward integration with compatible Garmin chartplotters and fishfinders.

Specifications:

• Model: Airmar B75H
• Housing Material: Bronze, flush-mount thru-hull
• Tilt Angle: 20°
• Power: 600W
• Connector: 8-pin
• Max Depth: 800 ft
• Supported Deadrise / Transom Angles: 16–24°
• Compatible Hull Types: Fiberglass, wood
• Frequency Options: Low, medium, and high frequency versions available
• Fairing Block Required: No

Resources:

• Owner's Manual (PDF)
• Product Brochure (PDF)
